Flexible static memory controller (FSMC) RM0033
1274/1381 RM0033 Rev 9

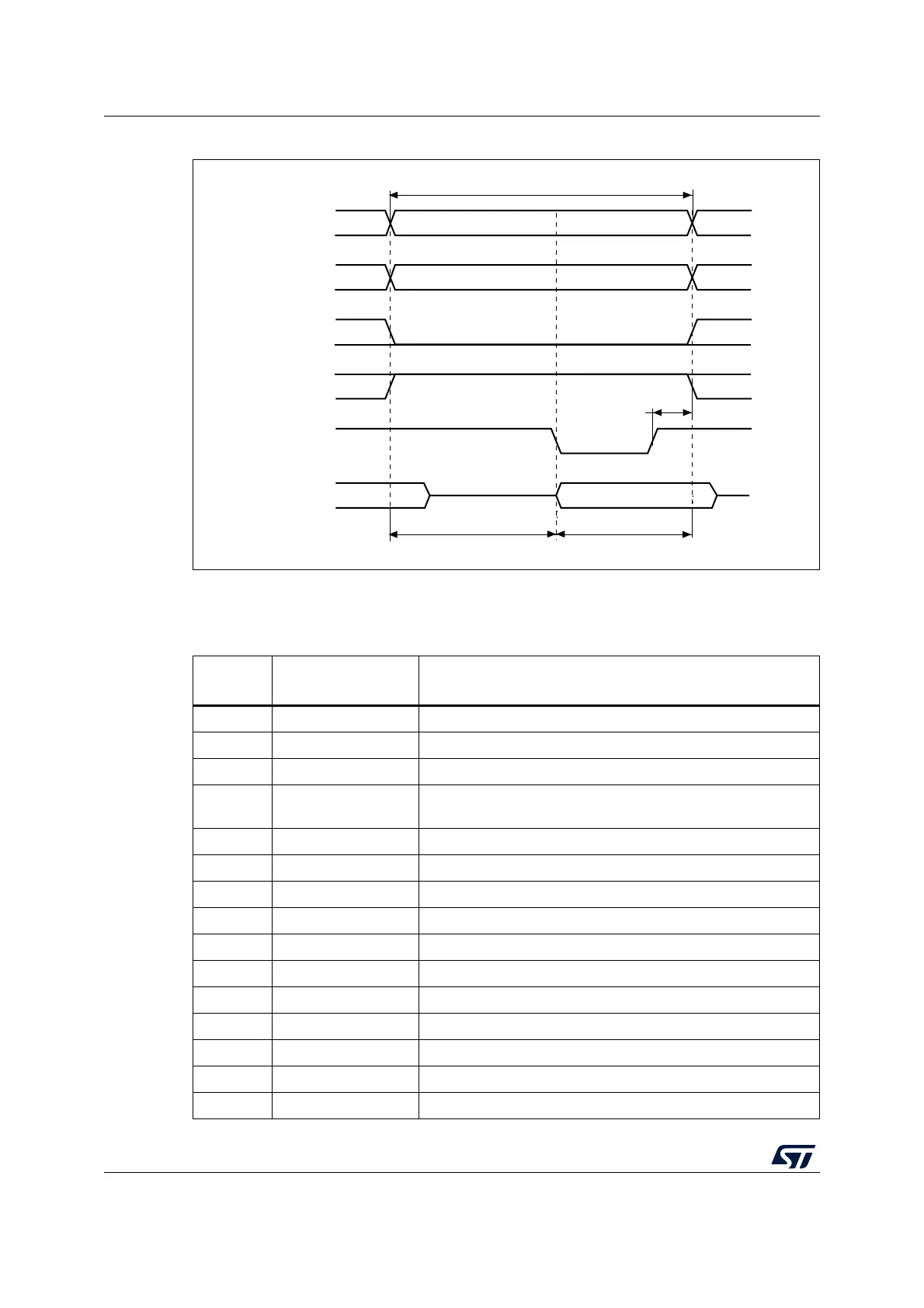

Figure 402. ModeA write accesses
The differences compared with mode1 are the toggling of NOE and the independent read
and write timings.
Table 181. FSMC_BCRx bit fields
Bit
number
Bit name Value to set
31-20 Reserved 0x000
19 CBURSTRW 0x0 (no effect on asynchronous mode)
18:16 CPSIZE 0x0 (no effect on asynchronous mode)
15 ASYNCWAIT
Set to 1 if the memory supports this feature. Otherwise keep at
0.
14 EXTMOD 0x1
13 WAITEN 0x0 (no effect on asynchronous mode)
12 WREN As needed
11 WAITCFG Don’t care
10 WRAPMOD 0x0
9 WAITPOL Meaningful only if bit 15 is 1
8 BURSTEN 0x0
7 Reserved 0x1
6 FACCEN Don’t care
5-4 MWID As needed
3-2 MTYP[0:1] As needed, exclude 0x2 (NOR Flash)
A[25:0]
NOE
ADDSET (DATAST + 1)
Memory transaction
NEx
D[15:0]
HCLK cycles HCLK cycles
NWE
NBL[1:0]
data driven by FSMC
ai15560
1HCLK
