RM0033 Rev 9 799/1381
RM0033 Controller area network (bxCAN)
837

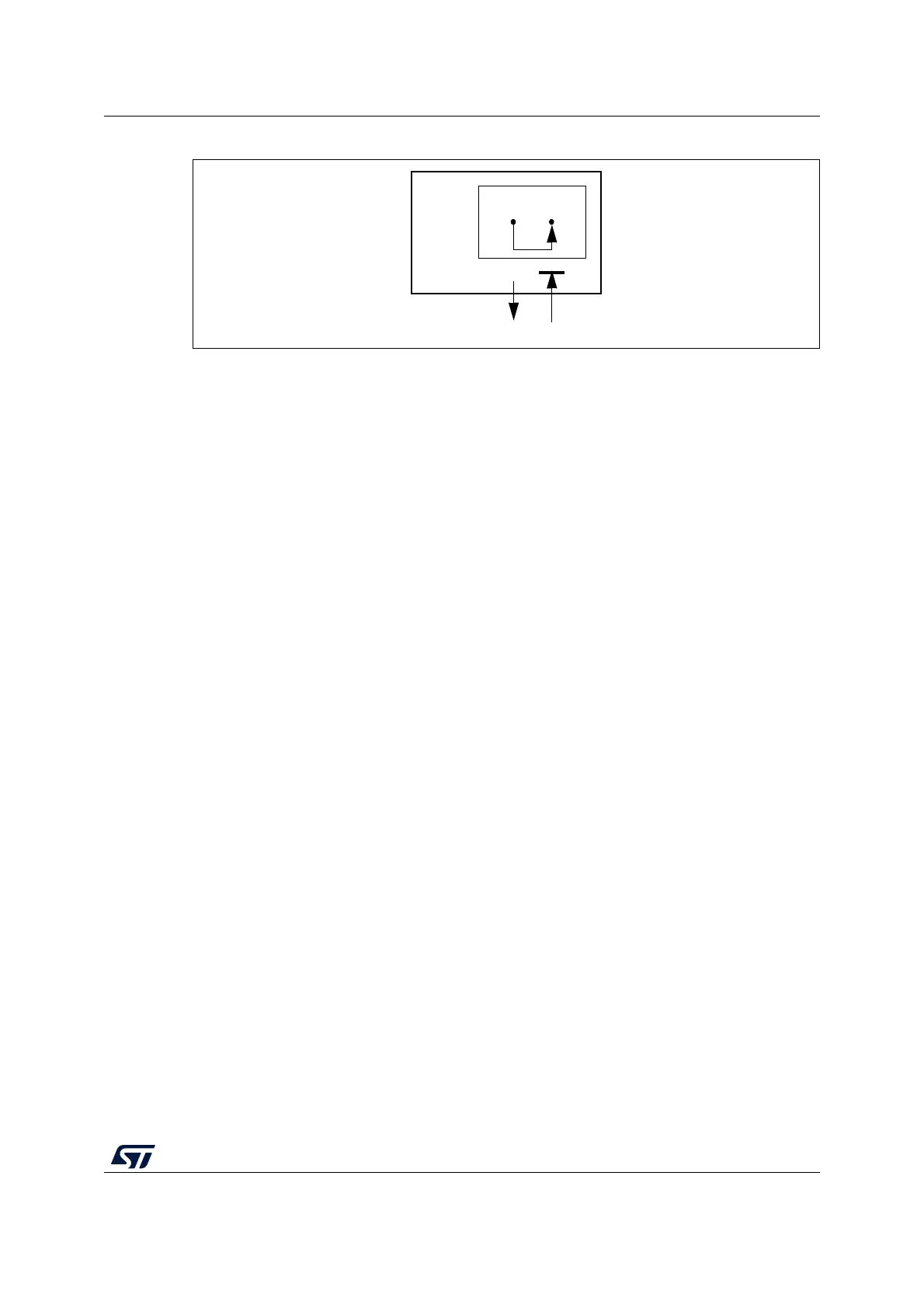

Figure 302. bxCAN in combined mode
27.6 Debug mode
When the microcontroller enters the debug mode (Cortex
®
-M3 core halted), the bxCAN
continues to work normally or stops, depending on:
• the DBG_CAN1_STOP bit for CAN1 or the DBG_CAN2_STOP bit for CAN2 in the
DBG module. For more details, refer to Section 32.16.2: Debug support for timers,
watchdog, bxCAN and I
2
C.
• the DBF bit in CAN_MCR. For more details, refer to Section 27.9.2.
27.7 bxCAN functional description
27.7.1 Transmission handling
In order to transmit a message, the application must select one empty transmit mailbox, set
up the identifier, the data length code (DLC) and the data before requesting the transmission
by setting the corresponding TXRQ bit in the CAN_TIxR register. Once the mailbox has left
empty state, the software no longer has write access to the mailbox registers. Immediately
after the TXRQ bit has been set, the mailbox enters pending state and waits to become the
highest priority mailbox, see Transmit Priority. As soon as the mailbox has the highest
priority it will be scheduled for transmission. The transmission of the message of the
scheduled mailbox will start (enter transmit state) when the CAN bus becomes idle. Once
the mailbox has been successfully transmitted, it will become empty again. The hardware
indicates a successful transmission by setting the RQCP and TXOK bits in the CAN_TSR
register.
If the transmission fails, the cause is indicated by the ALST bit in the CAN_TSR register in
case of an Arbitration Lost, and/or the TERR bit, in case of transmission error detection.
