Advanced-control timers (TIM1 and TIM8) RM0033
332/1381 RM0033 Rev 9

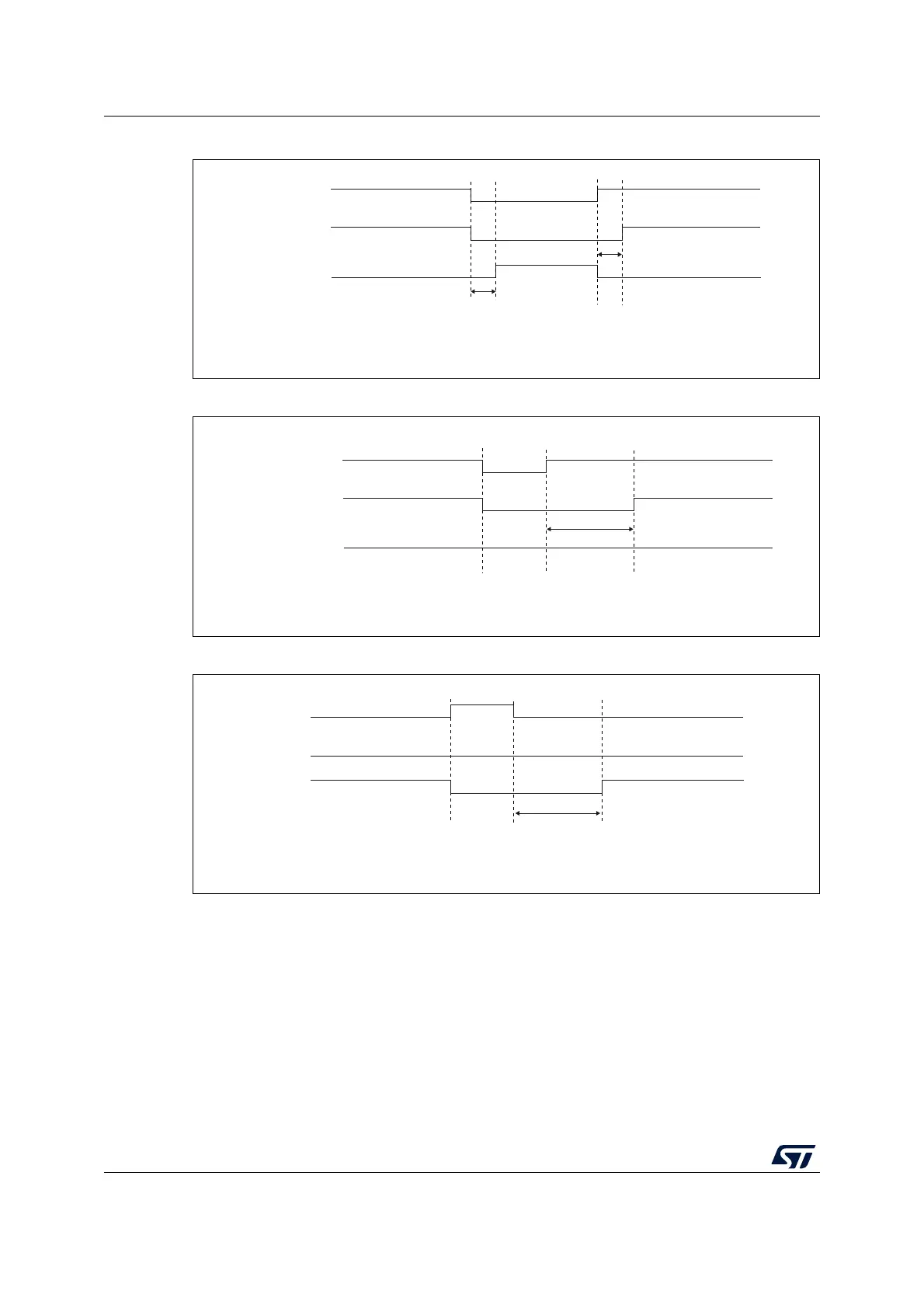

Figure 99. Complementary output with dead-time insertion.
Figure 100. Dead-time waveforms with delay greater than the negative pulse.
Figure 101. Dead-time waveforms with delay greater than the positive pulse.
The dead-time delay is the same for each of the channels and is programmable with the
DTG bits in the TIMx_BDTR register. Refer to Section 13.4.18: TIM1 and TIM8 break and
dead-time register (TIMx_BDTR) for delay calculation.
Re-directing OCxREF to OCx or OCxN
In output mode (forced, output compare or PWM), OCxREF can be re-directed to the OCx
output or to OCxN output by configuring the CCxE and CCxNE bits in the TIMx_CCER
register.
This allows the user to send a specific waveform (such as PWM or static active level) on
one output while the complementary remains at its inactive level. Other possibilities are to
delay
delay
OCxREF
OCx
OCxN
MS31095V1
MS31096V1
delay
OCxREF
OCx
OCxN
MS31097V1
delay
OCxREF
OCx
OCxN
