Secure digital input/output interface (SDIO) RM0033
740/1381 RM0033 Rev 9
Control unit
The control unit contains the power management functions and the clock divider for the
memory card clock.
There are three power phases:
power-off
power-up
power-on

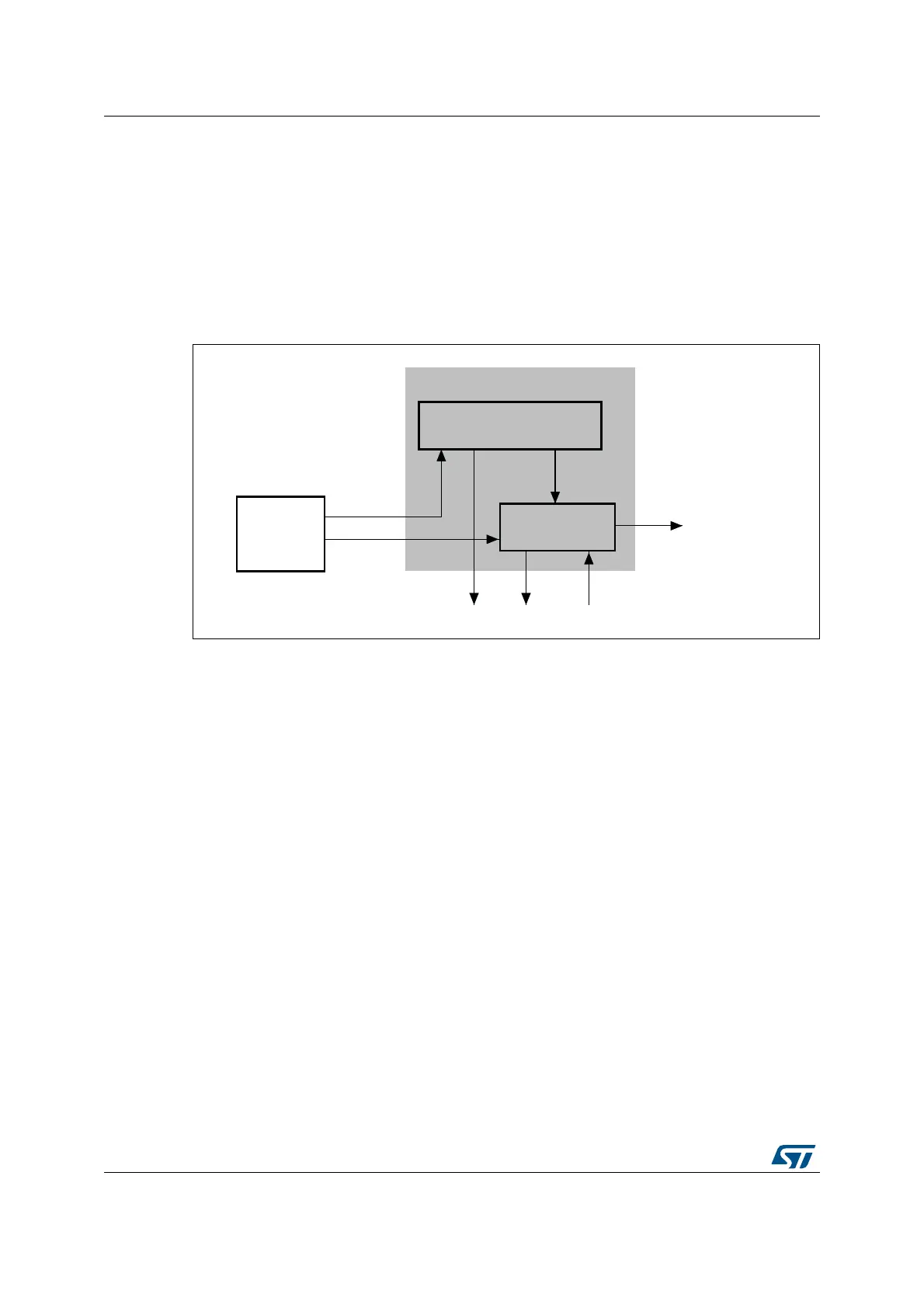

Figure 291. Control unit
The control unit is illustrated in Figure 291. It consists of a power management subunit and
a clock management subunit.
The power management subunit disables the card bus output signals during the power-off
and power-up phases.
The clock management subunit generates and controls the SDIO_CK signal. The SDIO_CK
output can use either the clock divide or the clock bypass mode. The clock output is
inactive:
after reset
during the power-off or power-up phases
if the power saving mode is enabled and the card bus is in the Idle state (eight clock
periods after both the command and data path subunits enter the Idle phase)
ai14804b
Control unit
Power management
Clock management
Adapter
registers
SDMMC_CK
To command and data path
