Analog-to-digital converter (ADC) RM0033
236/1381 RM0033 Rev 9

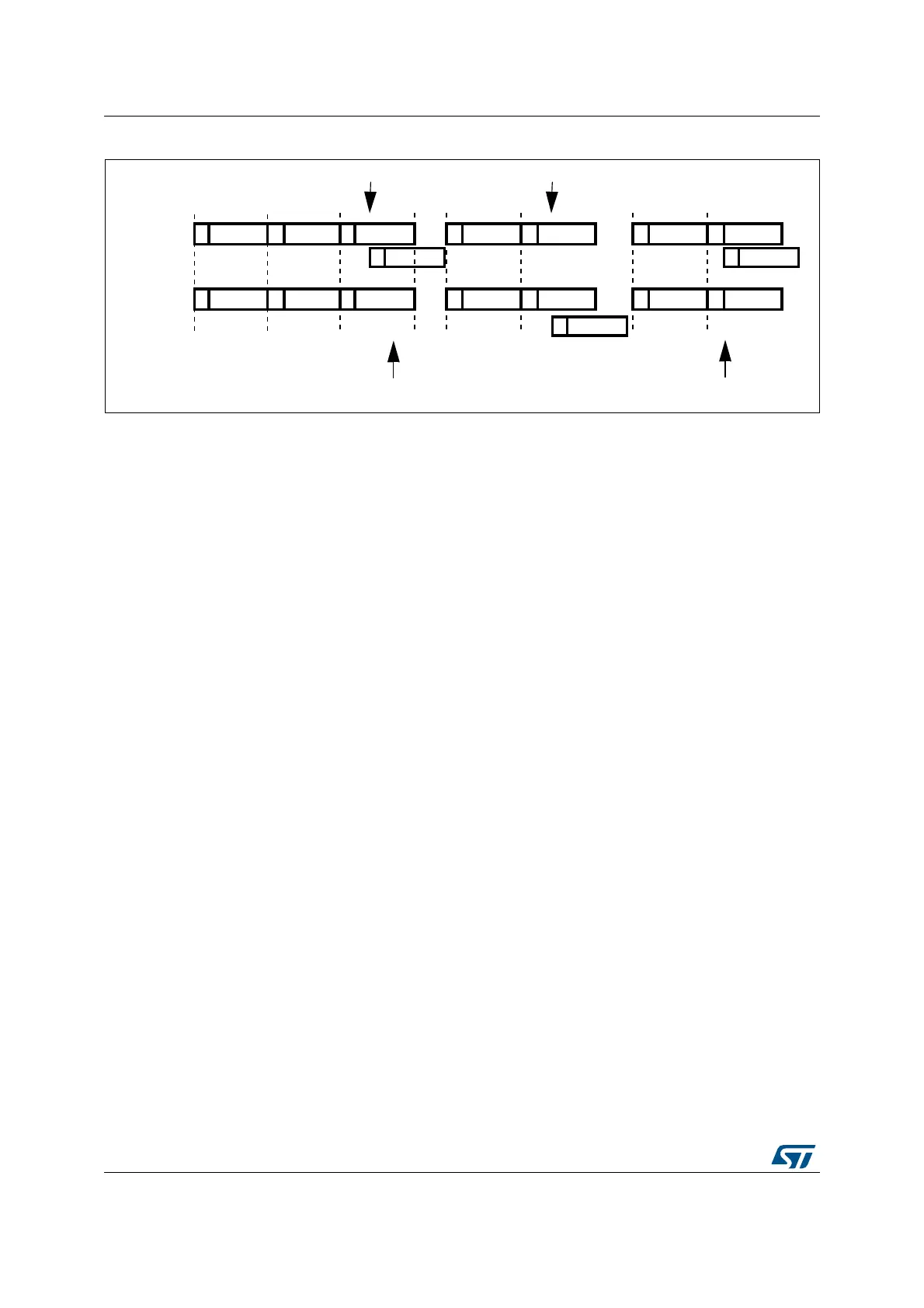

Figure 46. Case of trigger occurring during injected conversion
10.10 Temperature sensor
The temperature sensor can be used to measure the junction temperature (T
J
) of the
device.
The temperature sensor is internally connected to the ADC1_IN16 input channel which is
used to convert the sensor’s output voltage to a digital value.
Figure 47 shows the block diagram of the temperature sensor.
When not in use, the sensor can be put in power down mode.
Note: The TSVREFE bit must be set to enable the conversion of both internal channels:
ADC1_IN16 (temperature sensor) and ADC1_IN17 (V
REFINT
).
Main features
• Supported temperature range: –40 to 125 °C
• Precision: ±1.5 °C
ADC1 reg
CH0 CH1 CH2
CH0
CH2 CH3
CH0
ADC1 inj
ADC2 reg
ADC2 inj
1st trigger
2nd trigger
CH3 CH5 CH6 CH6 CH7
CH3 CH4
CH7 CH8
ai16063
CH0
2nd trigger
3rd trigger
