CRC error
This flag is used to verify the validity of the value received when the CRCEN bit in the
SPI_CR1 register is set. The CRCERR flag in the SPI_SR register is set if the value
received in the shift register does not match the receiver SPI_RXCRCR value.
TI mode frame format error
A TI mode frame format error is detected when an NSS pulse occurs during an ongoing
communication when the SPI is acting in slave mode and configured to conform to the TI
mode protocol. When this error occurs, the TIFRFE flag is set in the SPI_SR register. The
SPI is not disabled when an error occurs, the NSS pulse is ignored, and the SPI waits for
the next NSS pulse before starting a new transfer. The data may be corrupted since the
error detection may result in the lost of two data bytes.
The TIFRFE flag is cleared when SPI_SR register is read. If the bit ERRIE is set, an
interrupt is generated on the NSS error detection. In this case, the SPI should be disabled
because data consistency is no more guaranteed and communications should be reinitiated
by the master when the slave SPI is re-enabled.

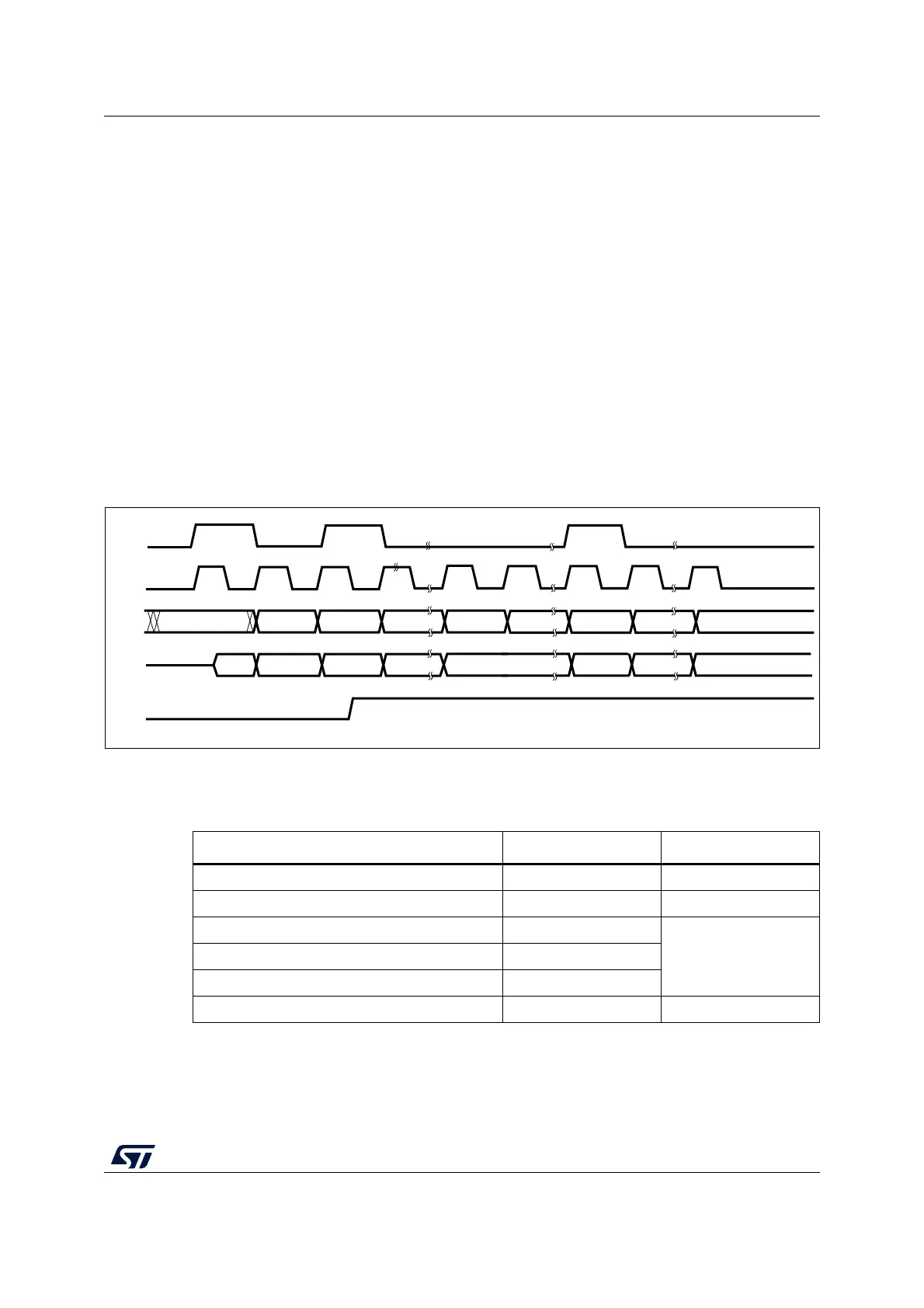

Figure 263. TI mode frame format error detection
25.3.11 SPI interrupts
ai18438
MSBIN
MOSI
input
NSS
output
SCK
output
trigger sampling trigger sampling trigger sampling
DONTCARE
MISO
output
1 or 0 MSBOUT
LSBOUT
MSBIN LSBIN
MSBOUT LSBOUT
trigger sampling trigger sampling trigger sampling trigger sampling
LSBIN DONTCARE
TIFRFE
Table 99. SPI interrupt requests
Interrupt event Event flag Enable Control bit
Transmit buffer empty flag TXE TXEIE
Receive buffer not empty flag RXNE RXNEIE
Master Mode fault event MODF
ERRIEOverrun error OVR
CRC error flag CRCERR
TI frame format error TIFRFE ERRIE
