ST STM32F207 series User Manual

RM0033 Rev 9 1287/1381
RM0033 Flexible static memory controller (FSMC)
1318

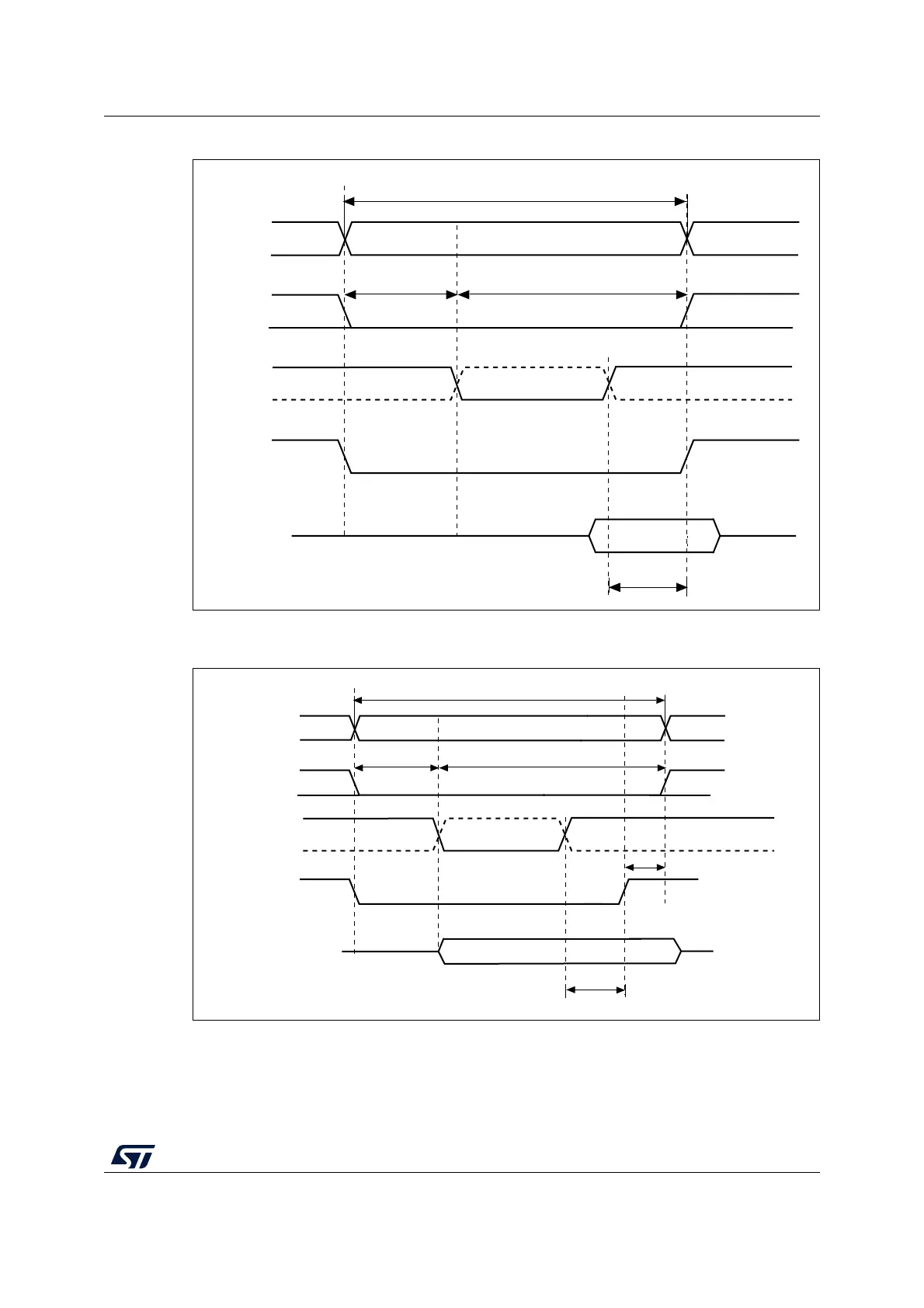

Figure 412. Asynchronous wait during a read access
1. NWAIT polarity depends on WAITPOL bit setting in FSMC_BCRx register.
Figure 413. Asynchronous wait during a write access
1. NWAIT polarity depends on WAITPOL bit setting in FSMC_BCRx register.
A[25:0]
NOE
4HCLK
Memory transaction
NWAIT
D[15:0]
NEx
data driven
by memory
ai18471b
address phase
don’t care
data setup phase
don’t care
A[25:0]
NWE
Memory transaction
NWAIT
D[15:0]
NEx
data driven by FSMC
ai15797c
3HCLK
address phase
data setup phase
1HCLK
don’t care don’t care
