OPERATION 5
MHL360 E 5.53
Activate close-range expansion
j WARNING
Danger of injury from collisions
Exercise extreme caution when
working in the direct vicinity of the
cab. There is an increased risk of
collision.
• Maintain a safety distance of at
least 1.5 m from the cab.
In an emergency: Administer first
aid, seek treatment from a doctor
The indicator on the button toggle (171/53)
shows the status.
B SB507 59
Indicator on: Close-range expansion
activated
B SB507 58
Indicator off: Close-range expansion
deactivated
►
Press button (171/53).
Corresponding indicators (169/28) and text
messages (169/34) appear on the main con-
trol display.
Symbol
Close range
Actions
B SB507 80
1
Dipperstick
in close
range
Retracting dipperstick
possible
Indicator not flashing,
color (1): red, broken line
Text message "CLOSE
RANGE CUT-OFF
STICK IS BYPASSED"
B SB507 80
1
Dipperstick
outside
Indicator flashing, color
(1): red, broken line
Text message and func-
tion as above
►
Carefully move dipperstick further.
►
Deactivate close-range expansion as soon
as possible via the button toggle (171/53).
F
09 :43 11 .03. 2 011
MH LX X X / XXX X
18 00 U PM
0 5 1 0 15 20 2 5
95°C 7 5°C
0 ½ 1
9 %
120 0
BSB50662
28
34

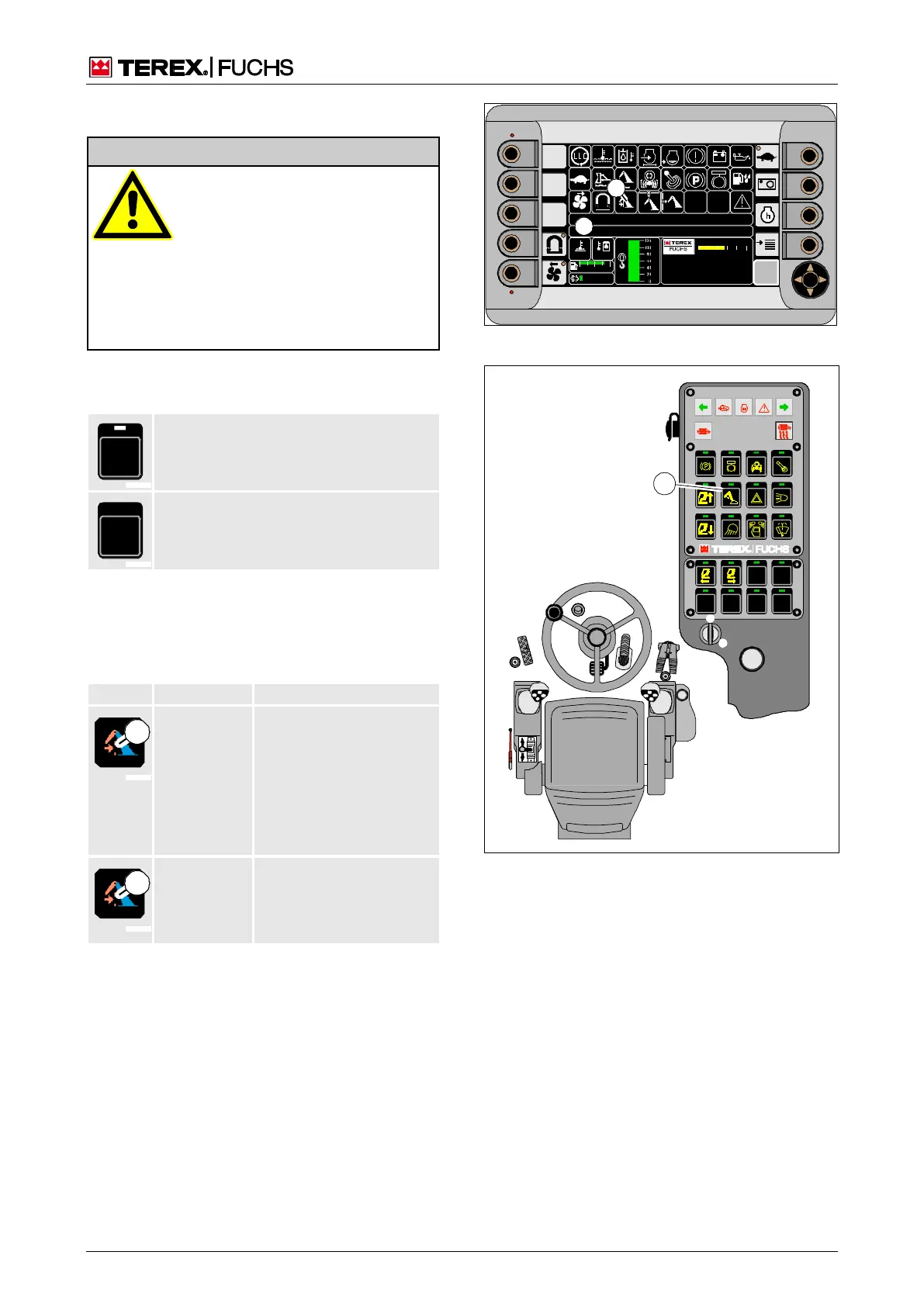

Fig. 170 Activating close-range expansion
I
0
BSB50663
53
Fig. 171 Activating close-range expansion
