5 OPERATION
5.60 MHL360 E
Operation: Operate foot switch
The float function can be used flexibly via the
foot switch (187/5). On the main control dis-
play, corresponding indicators (186/20) and
text messages (186/34) appear.
Symbol
Pressure
Actions
B SB507 79
1
Not taken
into ac-
count
No foot switch operated
Color (1): not flashing
No text message
Control unit deactivated
Raising and lowering boom
possible
B SB507 79
1
Outside
the thresh-
olds
Foot switch operated
and held
Color (1): flashing
Text message "BOOM
FLOAT FUNCTION IS
READY"
Control unit ready
Raising and lowering boom
possible
B SB507 78
1
Within the
thresholds
Foot switch operated
and held
Color (1): yellow
Text message "BOOM
FLOAT FUNCTION IS
ACTIVE"
Control unit active, the
boom is raised by the con-
trol unit
Lowering boom for opera-
tion disabled
►
Main control display.
►
Perform loading work until the grab comes
close to the ship's floor.
►
Now, also operate and hold foot switch
(187/5) and continue to work.
Indicators (186/20) and text messages
(186/34) indicate the interventions of the
control unit.
ATTENTION
The control can be adjusted by authorized ser-
vice personnel.
F
09 :43 11 .03. 2 011
MH LX X X / XXX X
18 00 U PM
0 5 1 0 15 20 2 5
95°C 7 5°C
0 ½ 1
9 %
120 0
BSB50668
20
34

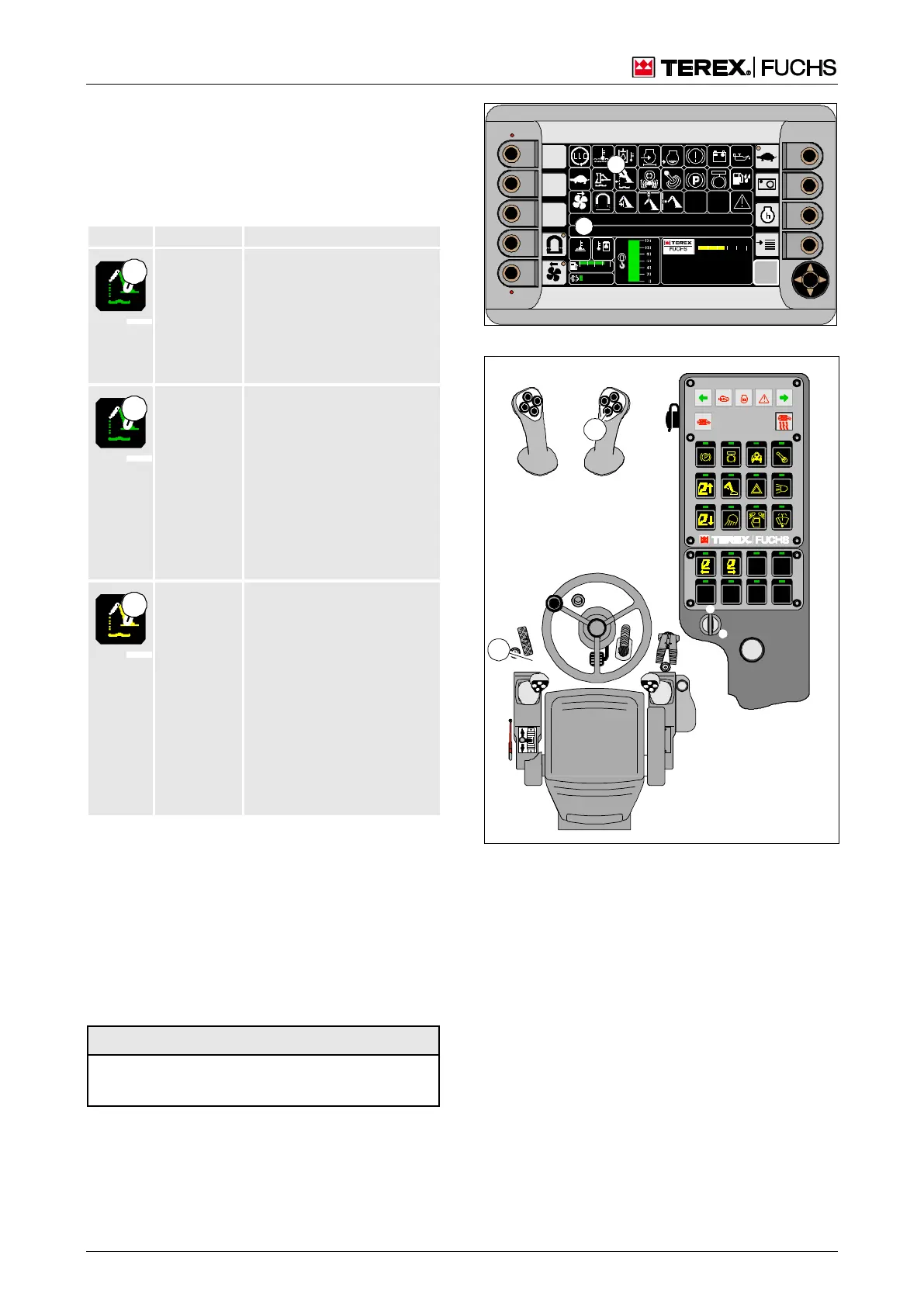

Fig. 186 Boom float function
I
0
BSB50669
48
5
Fig. 187 Boom float function
