2 SAFETY AND ACCIDENT PREVENTION
2.4 MHL360 E

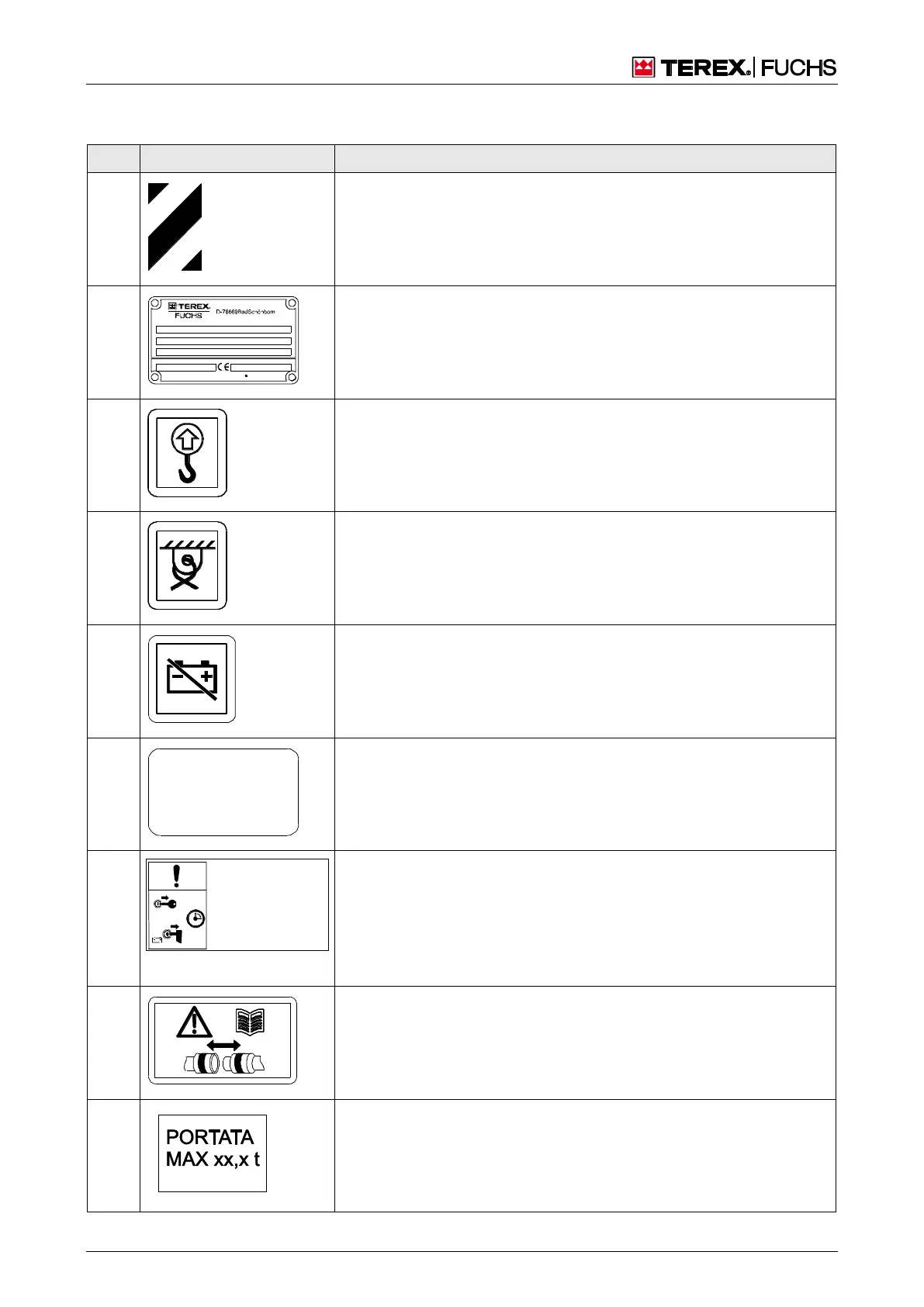

Description
Item
View
Description
1
BSB 50931
Identification of hazards
Indicates the counterweight as a danger area when the uppercarriage
is turning (only for Russia).
2
B SB509 49
MADE IN GERMANY
5 300 655 001
FAHRZEUGTYP UND S ERIENBEZEICHNUNG FZ. -IDENT.N R.
MIN. EINSATZGEW ICHT [kg]
ZUL. VORDERACH SLAST [kg]
MAX. EINSATZGEWI CH T [kg]
ZUL. HINTE RACHSLAST [ kg ]
MOTORLEISTU NG [kW] BAUJAHR
Ter ex Deu tsch land GmbH
Type plate
Contains selected information to identify the machine and its technical
data.
h Chapter 1.5 Type plates and vehicle identification number
3
B SB509 29
Information sign for loading by crane
Indicates the lifting points on the outrigger feet for lifting the machine
to load by crane.
h Chapter 6 Recovery, Loading and Transporting
4
B SB509 30
Information sign for lashing
Indicates the lashing points for transport on the front and rear.
h Chapter 6 Recovery, Loading and Transporting
5
B SB509 37
Information sign for battery cut-off
Indicates the battery isolator switch. Note information in the operating
instructions.
h Chapter 5.5.2 Battery isolator switch
6
BSB 50950
Vor Betaetigen des
Batterie Trennschalters
Heizgeraet abschalten
und Nachlauf abwarten
Warning plate for supplementary heating (optional)
Information on the relationship between the supplementary heating
and the battery: "Before operating the battery isolator switch, switch off
the heater and wait for the overrun period to end".
h Chapter 5.8.5 Supplementary heating (optional)
7
1.
2.
3.
>15 sec
BSB 50924
Risk of machine damage
If the battery isolator switch is disconnected during operation, this can
cause damage to the machine.
1. Shut down the diesel engine and switch it off. Remove ignition key.
2. Wait at least 15 seconds. 3. Turn the battery isolator switch off and
remove the key.
8
B SB509 32
Warning plate for quick couplings
Reduce the hydraulic pressure before disconnecting or connecting.
Note information in the operating instructions.
h Chapter 7.1.3 Discharging residual pressure in the hydraulic circuit
Tool manufacturer's documentation
10
Schild009
Carrying capacity sign (only for Italy)
Information about the maximum right and left carrying capacity on the
dipperstick.
h Chapter 3.2 n Working range of the machine
