SAFETY AND ACCIDENT PREVENTION 2
MHL360 E 2.5

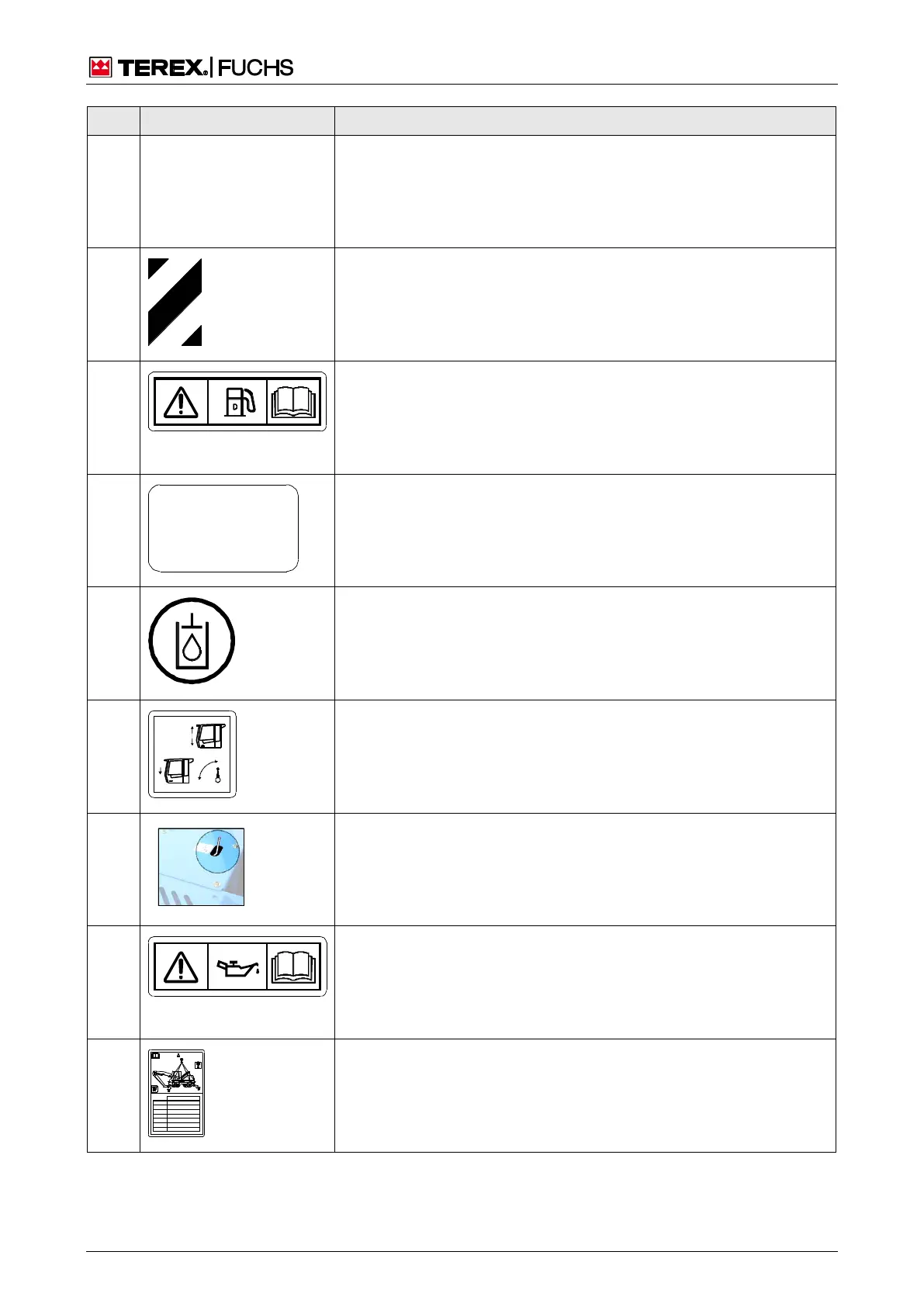

Item
View
Description
11
Not available
12
B SB509 31
Identification of hazards
Indicates the cab - cab lift mechanism - uppercarriage danger area.
h Chapter 5.12 Positioning the cab
20
B SB509 38
Information sign for diesel fuel
Ensures compliance with the specifications given in the operating in-
structions.
21
B SB509 51
ACHTUNG
Beim Betanken mit elektr.
Betankungspumpe Tankdeckel
öffnen
Information sign for tank filling pump (optional)
Information about using the optional tank filling pump: „CAUTION"
"Open the tank cap when refueling with the electrical tank filling
pump."
22
BSB 50941
Information sign for hydraulic oil
Indicates the filler opening for the hydraulic oil.
h Chapter 7.7.14 Hydraulic system
23
B SB509 40
Information sign for emergency lowering
Indicates effect of emergency lowering valve lever on cab movement.
h Chapter 5.1.3 Emergency lowering of cab
24
Schild024
Emergency lowering valve on uppercarriage
Indicates the emergency lowering valve's adjustment handle with red
paint.
h Chapter 5.1.3 Emergency lowering of cab
25
B SB509 39
Information sign for diesel engine lubricating oil
Ensures compliance with the specifications given in the operating in-
structions.
26
B SB509 42
(103 ,1 70 )46 800MH L 360
(147 ,7 00 )
67 000MH L 380
MH L 350 35 500 (78, 26 0)
MH L 340 29 000
(63, 93 0)
MH L 335 25 000 (55, 11 0)
MH L 331 23 500 (51, 80 0)
(41, 88 0)
(lb)kg
19 000MH L 320
5 358 60 9 86 0
kg (lb)
Information sign for loading by crane
Using symbols, shows the crane loading and lists the weight of loading
machines by type. Indicates details in the operating instructions.
