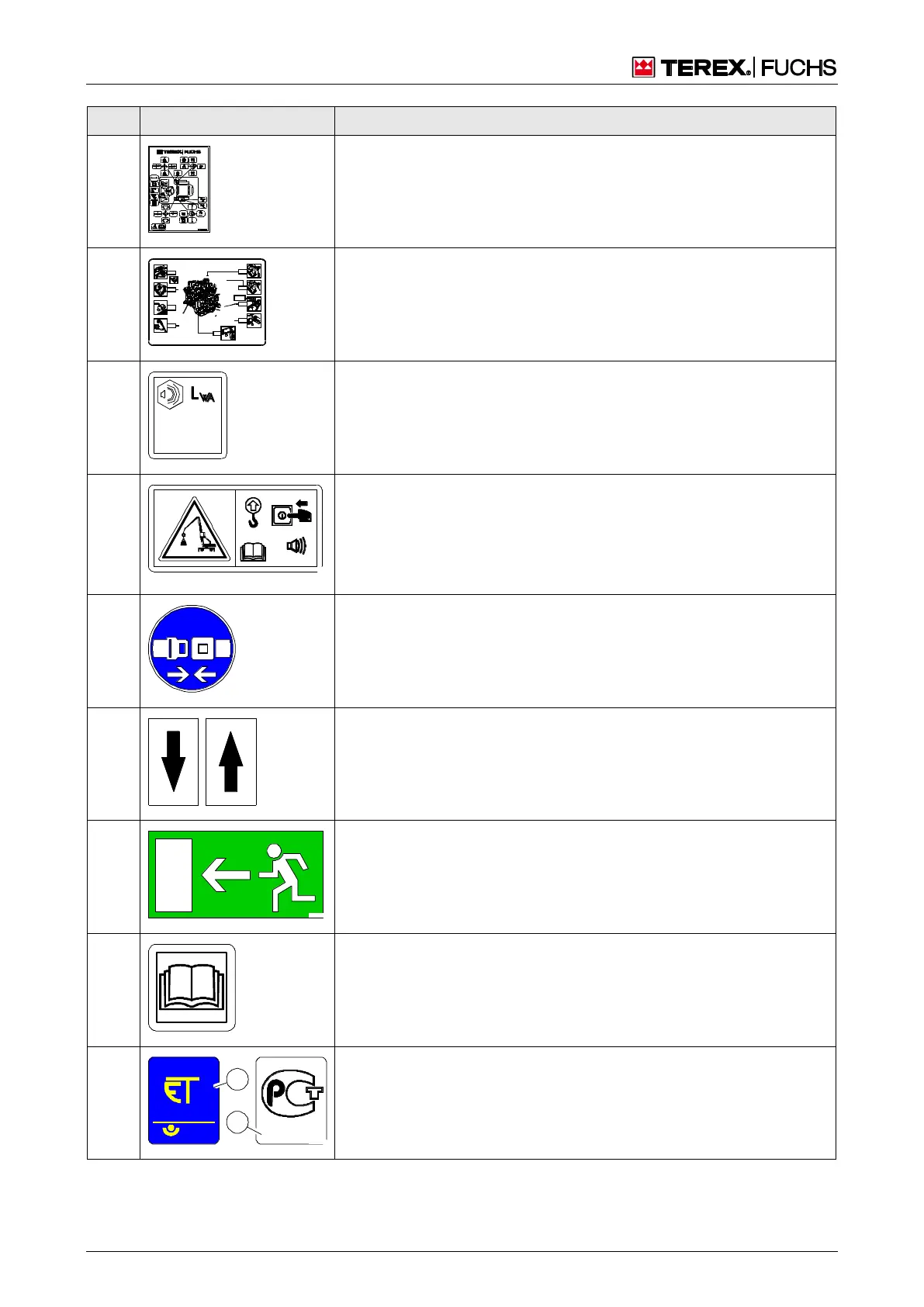

2 SAFETY AND ACCIDENT PREVENTION
2.6 MHL360 E
Item
View
Description
30
B SB509 43
Information sign for control unit
Indicates the most important control elements in the cab.
h Chapter 4 Display and control elements
Chapter 5 Work operation
31
B SB509 45
Information sign for diesel engine
Lists the key maintenance work specified by the engine manufacturer.
h Chapter 7 Care and Maintenance
32
B SB509 44
Information sign for sound power level
Indicates the machine's sound power level.
h Chapter 3.4 Technical data
33
0 I
B SB510 21
Information sign for overload warning device (optional)
Refers to the black key switch.
Position 0: Overload warning device deactivated
Position I: Overload warning device activated
h Chapter 5.19.2 Overload warning device for hoisting (optional)
34
BSB 50933
Mandatory sign for safety belt
Indicates that the safety belt must be worn in the cab.
h Chapter 5.4.2 Using the safety belt
35
B SB509 36
Information sign for accelerator pedal
Indicates the direction of travel for the accelerator pedals. Note the
effect on the position of the uppercarriage!
h Chapter 4.1 Display and control elements in the cab
36
B SB509 34
Rescue sign for emergency exit
Indicates the rear window as the emergency exit.
h Chapter 5.1.4 Emergency exit and emergency hammer
37
B SB509 35
Operating instructions location
Indicates the storage location of the operating instructions.
38
1
B SB509 47
2
Certification labels
1 All loading machines except Russia
2 For Russia only
