7.7.13 Venting the oscillating axle cylin-
ders
Collect old oil with a suitable reser-
voir. Do not allow them to seep into
the ground or water! Give to an au-
thorized waste disposal company to
dispose of in an environmentally-
friendly manner.
►
The oscillating axle must be released. If the
oscillating axle is unlocked, the indicator on
the push button (308/63) as well as the in-
dicator (308/21) light up and the message
(308/34) "OSCILLATING AXLE
UNLOCKED" appears on the multifunction
display.
►
Jack up the machine so that the wheels of
the oscillating axle are off the ground.
►
Engage the service brake (308/9).
►
Release the parking brake (308/54).
►
Run the diesel engine at medium speed.
►
Open the vent plugs (309/1) one after the
other, until hydraulic oil flows out that is
free from bubbles.
►
Close the vent plug (309/1).
F
09 :43 11 .03. 2 011
MH LX X X / XXX X
18 00 U PM
0 5 1 0 15 20 2 5
95°C 7 5°C
0 ½ 1
9 %
120 0
BSB50618
21
34

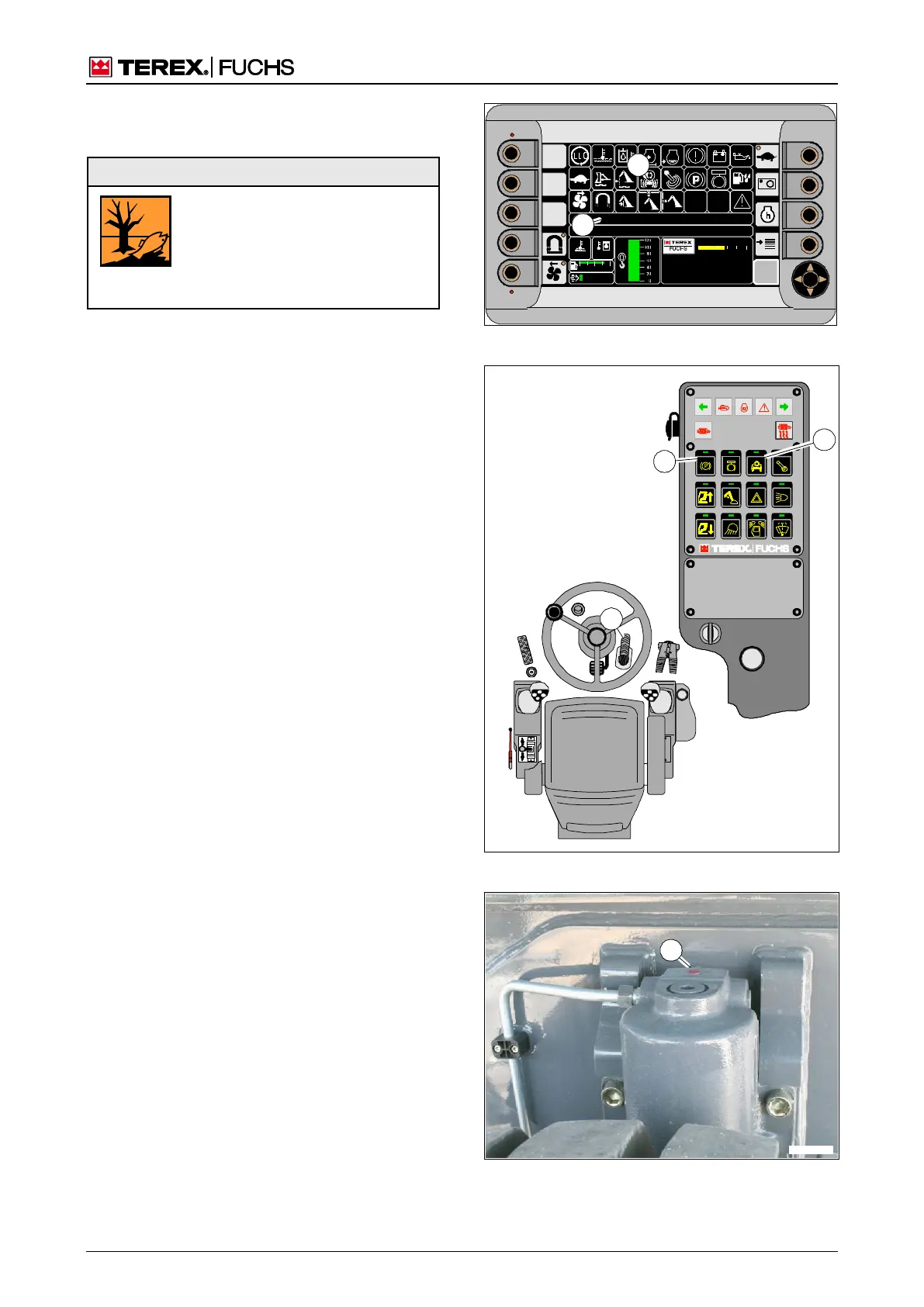

Fig. 307 Main control display indicator
Fig. 308 Venting the oscillating axle cylinder
Fig. 309 Oscillating axle cylinder vent plug
