Chapter 7: PC SOFTWARE OFFLINE SETTINGS
9. OPERATION SETTING MODE
7-43

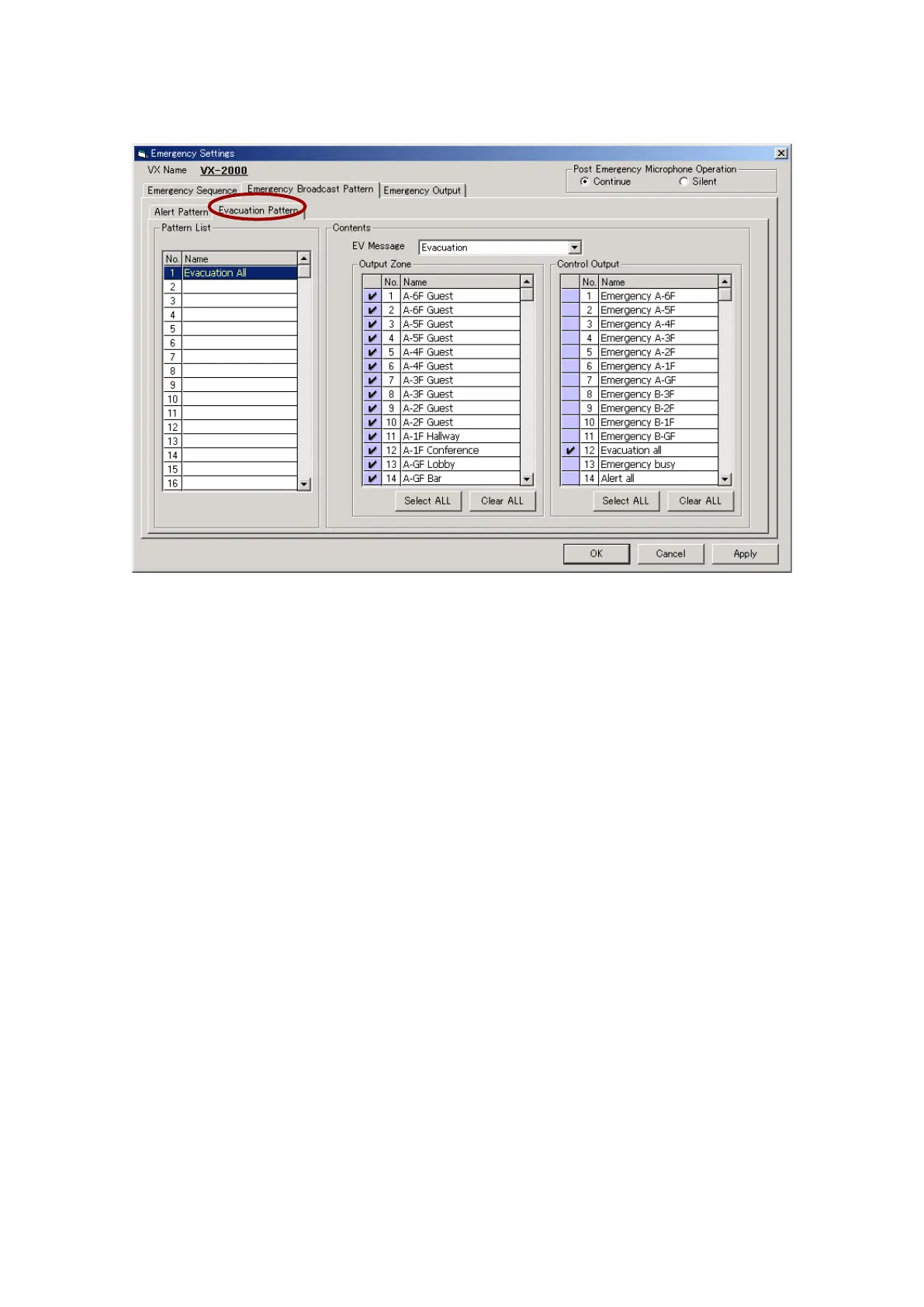

Step 3. Set the [Evacuation] pattern(s).
3-1. Click on the [Evacuation Pattern] tab.
3-2. Select "Evacuation" message for EV Message.
3-3. Select the output zone(s) to which the evacuation message is to be broadcast.
The pattern name is displayed in the pattern name list. The pattern name can be changed.
3-4. Select the control output to be activated during evacuation message broadcast.
Continued on next page
