Chapter 9: CONNECTIONS
6. CONNECTION CABLE PIN ASSIGNMENT
9-18

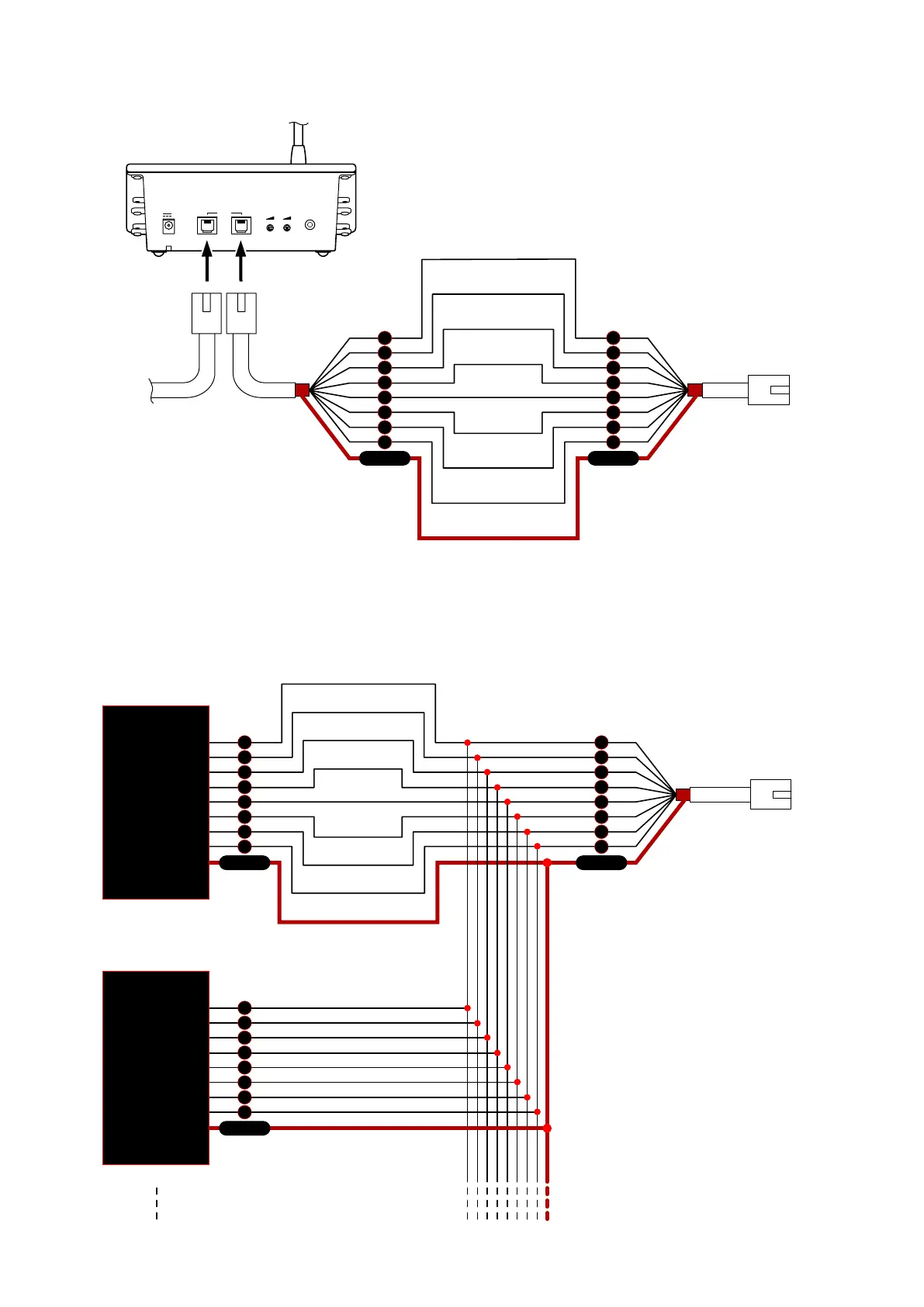

•Daisy-chainconnectionbetweenRM-200XandVX-200XR
LINK
DC POWER IN
24V
MICSP
EXTERNAL
MIC IN
RJ45 connector
Pin No.
To VX-200XR
RM-200X Rear
1
2
5
6
3
4
7
8
Shield
1
2
1
5
6
3
4
7
8
Shield
To the next
RM-200X
Monitor in (H)
Monitor in (C)
RM data
Audio out (H)
Audio out (C)
RM data
DC power in (+)
DC power in (–)
Shield
•FreetopologyconnectionbetweenRM-200XForRX-200XandVX-200XR
RJ45 connector
Pin No.
To VX-200XR
1
2
5
6
3
4
7
8
Shield
1
2
5
6
3
4
7
8
Shield
Monitor in (H)
Monitor in (C)
RM data
Audio out (H)
Audio out (C)
RM data
DC power in (+)
DC power in (–)
Shield
RM-200XF
or
RM-200X
Up to a total of 8 units
1
2
5
6
3
4
7
8
Shield
RM-200XF
or
RM-200X
