Chapter 9: CONNECTIONS
6. CONNECTION CABLE PIN ASSIGNMENT
9-19
[Direct power supply to the Remote Microphone]
When a Remote Microphone is located far away from the VX-2000 or many RM-210 units are connected,
the Remote Microphone may malfunction due to the voltage drop of power supply.
Also, when more than 1 Remote Microphones, each having one VX-200XR to which many RM-210s are
connected, are included in the system, the current consumption could become too large to operate the
Remote Microphones.
In the above cases, the Remote Microphone needs to be directly supplied power from the VX-2000DS or VX-
3000DS.
For the detailed conditions that power should be directly supplied from the VX-2000DS or VX-3000DS, refer
to the "Supplementary tools.xls" file located in the "Supplementary tool" folder on the CD-ROM accompanying
the VX-2000.

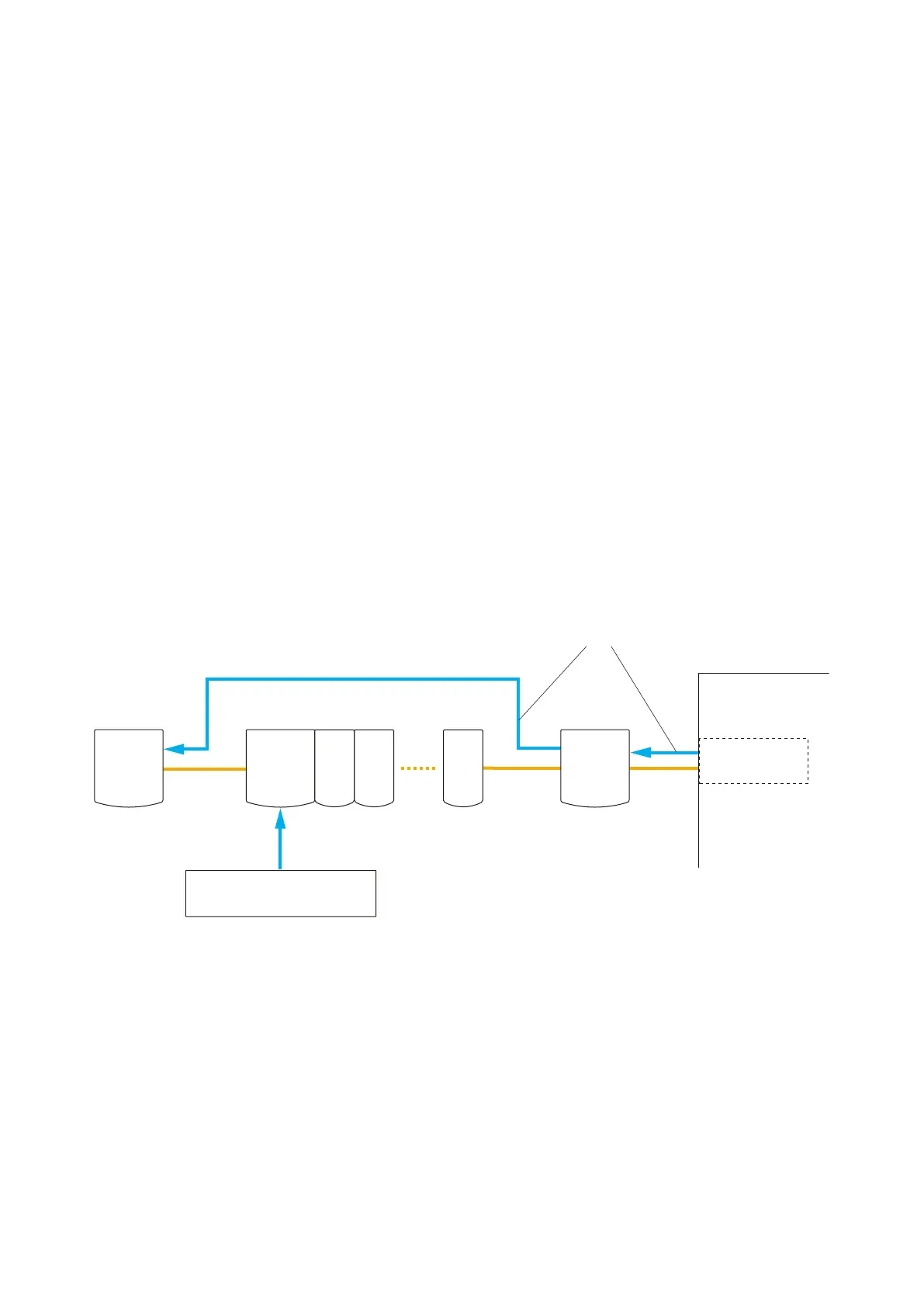

[Connection examples]
•DirectpowersupplyfromtheVX-2000DSorVX-3000DStotheRM-200XassembledwithmanyRM-
210s
When many RM-210s are added to the RM-200X, power needs to be directly supplied from the VX-2000DS or
VX-3000DS.
VX-200XR
RM-200XF
RM-200X RM-200X
RM-200X + RM-210 x 9
Power supply from the VX-200XR
VX-2000DS or VX-3000DS
VX-2000
