Cisco ASR 1004 Hardware Installation Guide

The power supply has a handle to be used for insertion and extraction. The module must be supported with
one hand because of its length. The following figure shows the Cisco ASR 1001 Router DC power supplies.

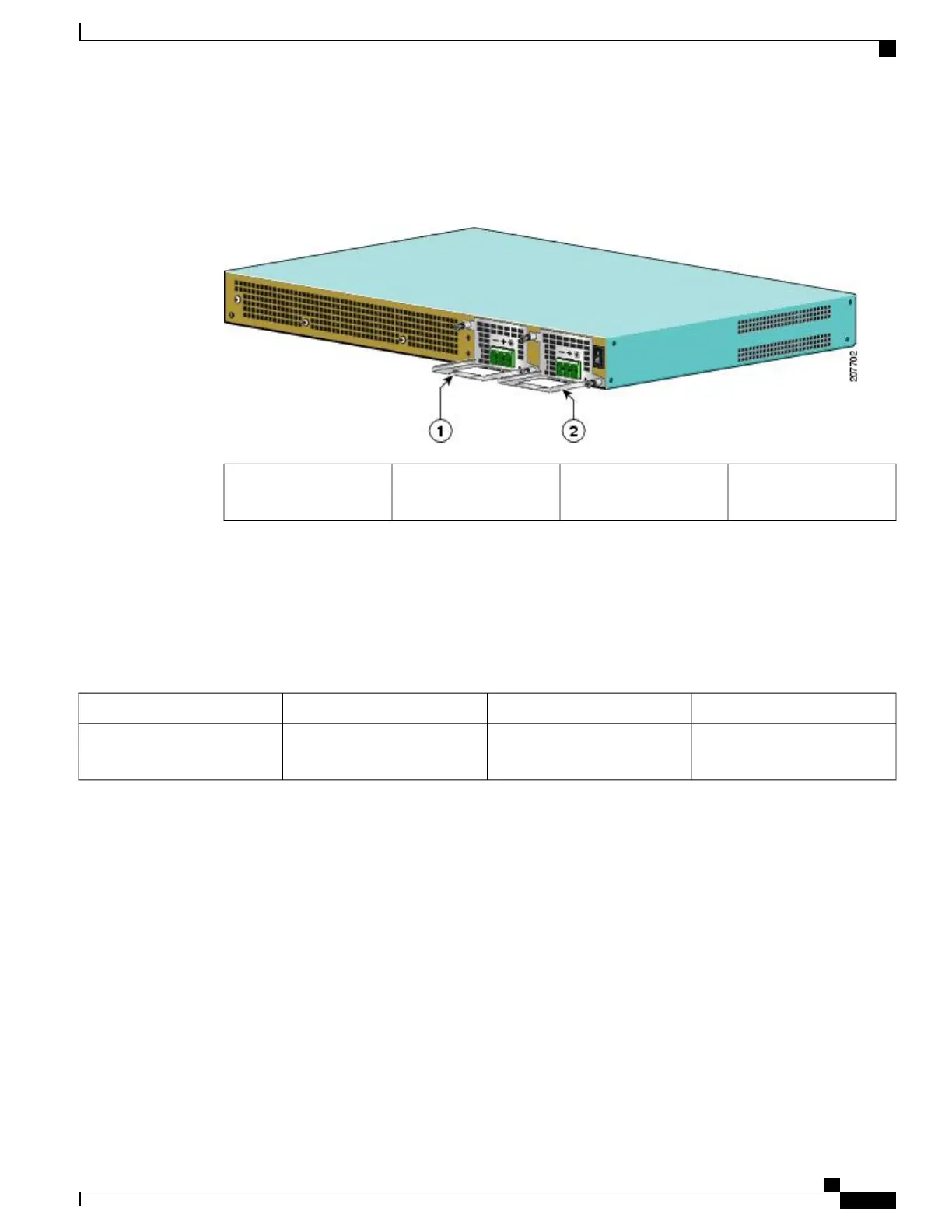

Figure 24: Cisco ASR 1001 Router With DC Power Supplies
DC power supply in slot
PS1
2DC power supply in slot
PS0
1
AC/DC Power System Input Range and Voltage for Cisco ASR 1001
The power supply DC Input Range is –40.5 to –72 VDC, and the AC Input Range is 85 to 264 VAC. The
following table describes the Cisco ASR 1001 Router power supply LED.
Table 35: Cisco ASR 1001 Router — AC and DC Power Supply LED
DescriptionColorLEDLED Label
Off if output power is within
specification range
RedIndicates power supply statusPWR OK
Cisco ASR 1000 Series Router Hardware Installation Guide
85
Cisco ASR 1000 Series Routers Component Overview
Cisco ASR 1001 Router DC Power Supply

Cisco ASR 1004 Specifications

General

Product Type	Router
Form Factor	Rack-mountable
Rack Height	2U
Forwarding Capacity	Up to 20 Gbps
Total Number of Ports	Varies by configuration
Number of Total Expansion Slots	4
Product Series	ASR 1000
Model	ASR 1004
Forwarding Performance	Up to 20 Gbps
Operating System	Cisco IOS XE
Power Supply	Dual
Route Processor	ASR 1000 Series Route Processor
Network Interface Modules	SFP, SFP+, Gigabit Ethernet, 10 Gigabit Ethernet
Interfaces/Ports	Varies by configuration
Expansion Slot Type	SPA
Throughput	20 Gbps
Redundancy	Power supply, Route Processor
Interfaces	Gigabit Ethernet, 10 Gigabit Ethernet, SFP, SFP+
Storage	Up to 64 GB Flash
