Cisco ASR 1004 Hardware Installation Guide

•
Connecting Power to Cisco ASR 1004 Router, page 208
•
Connecting a Terminal to the Cisco ASR Series 1000 Route Processor Console Port, page 215
•
Connecting the Network Management and Signal System Cables, page 218
Cisco ASR 1004 Router Description
The Cisco ASR 1004 Router system consists of the following system level components:
•
Two Cisco ASR 1000 Series SPA Interface Processor (Cisco ASR1000-SIP10 or Cisco ASR1000-SIP40)
•
One Cisco ASR 1000 Series Embedded Services Processor (Cisco ASR 1000-ESP10, Cisco ASR
1000-ESP20, or Cisco ASR1000-ESP40)
•
One Cisco ASR 1000 Series Route Processor (Cisco ASR1000-RP1 or Cisco ASR1000-RP2)
•
Dual (redundant) AC and DC power supplies
This section contains the following topics:
Front View
The following image shows the Cisco ASR 1004 Router with modules and filler plates installed.

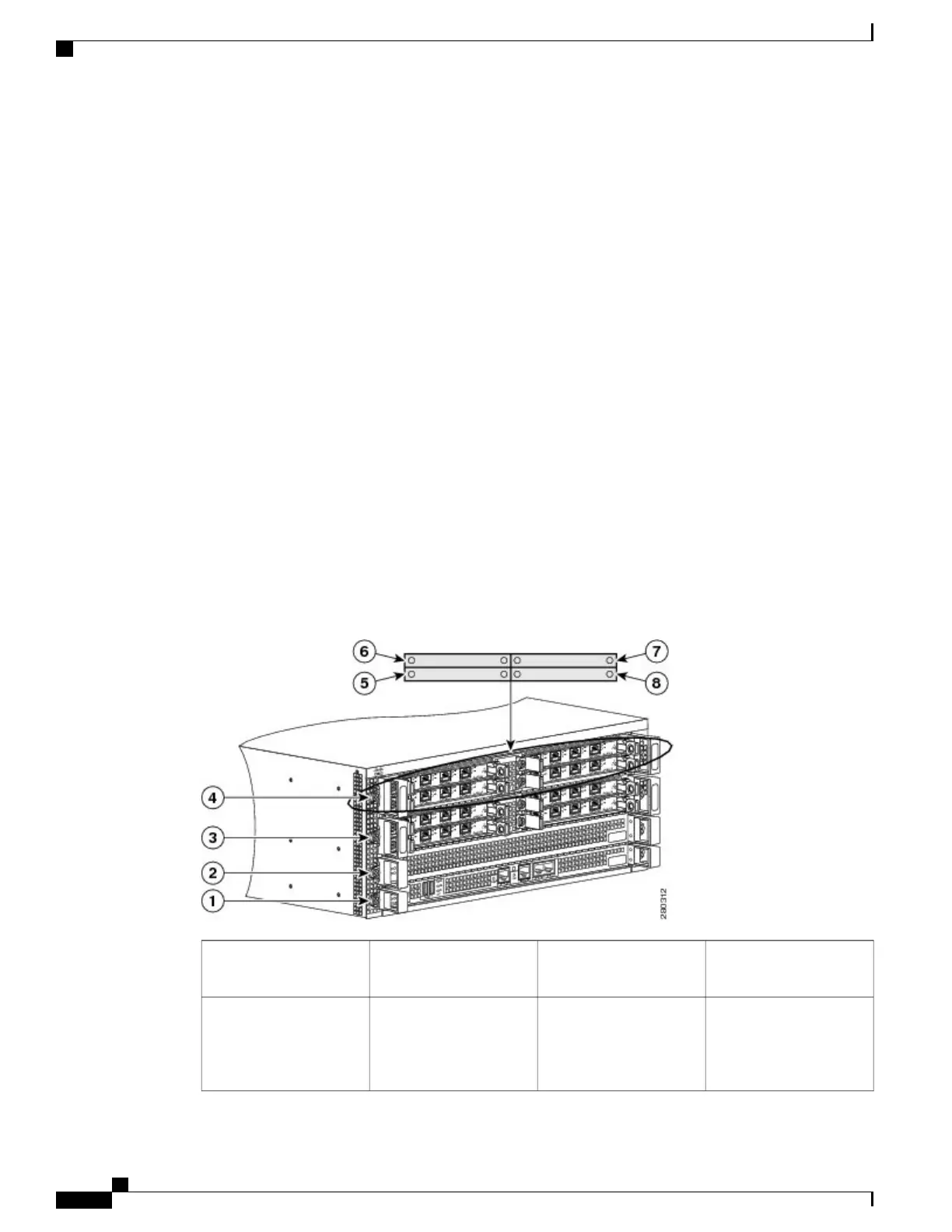

Figure 58: Cisco ASR 1004 Router — Front and Side View
SPA subslot 25Slot R0 with ASR 1000
Series Route Processor
1
SPA subslot 06Slot F0 with Cisco
ASR1000-ESP10, Cisco
ASR1000-ESP20, or
Cisco ASR1000-ESP40
2
Cisco ASR 1000 Series Router Hardware Installation Guide
182
Cisco ASR 1004 Router Overview and Installation
Cisco ASR 1004 Router Description

Cisco ASR 1004 Specifications

General

Brand	Cisco
Model	ASR 1004
Category	Network Router
Language	English
