Connecting the Console and Auxiliary Port Cables
The Cisco ASR 1004 Router has a DCE-mode console port for connecting a console terminal and an auxiliary
port for additional connections to your chassis. The auxiliary port can also be used for diagnostics. The

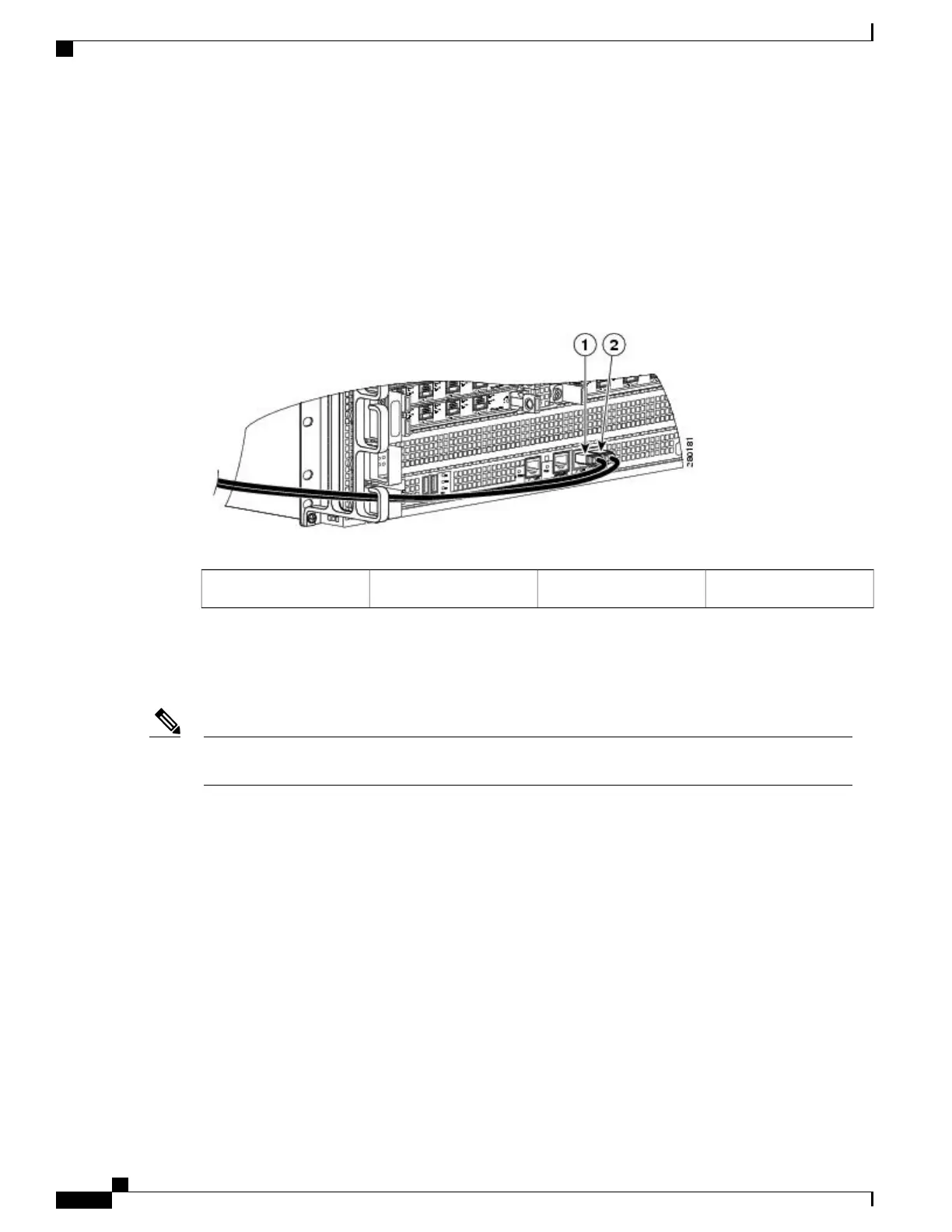

following shows the CON and AUX ports on the Cisco ASR 1000 Series route processor.
Auxiliary port - AUX2Console port - CON1
The Cisco ASR 1004 Router uses RJ-45 ports for both the auxiliary port and the console port. Both the console
and the auxiliary ports are asynchronous serial ports; any devices connected to these ports must be capable
of asynchronous transmission.
A connection will not be established when setting up an out-of-band connection or modem connection in
the auxiliary port and the console port.
Note
For console and auxiliary port pinouts for the RJ-45 connector, see “Cisco ASR 1004 Router Specifications”
section on page A-5 . Both ports are configured as asynchronous serial ports.
SUMMARY STEPS
1.
Before connecting a terminal to the console port, configure the terminal to match the chassis console port
as follows: 9600 baud, 8 data bits, no parity, 1 stop bits (9600 8N1).
2.
After you establish normal router operation, you can disconnect the terminal.
Cisco ASR 1000 Series Router Hardware Installation Guide
206
Cisco ASR 1004 Router Overview and Installation
Connecting the Console and Auxiliary Port Cables

Cisco ASR 1004 Specifications

General

Product Type	Router
Form Factor	Rack-mountable
Rack Height	2U
Forwarding Capacity	Up to 20 Gbps
Total Number of Ports	Varies by configuration
Number of Total Expansion Slots	4
Product Series	ASR 1000
Model	ASR 1004
Forwarding Performance	Up to 20 Gbps
Operating System	Cisco IOS XE
Power Supply	Dual
Route Processor	ASR 1000 Series Route Processor
Network Interface Modules	SFP, SFP+, Gigabit Ethernet, 10 Gigabit Ethernet
Interfaces/Ports	Varies by configuration
Expansion Slot Type	SPA
Throughput	20 Gbps
Redundancy	Power supply, Route Processor
Interfaces	Gigabit Ethernet, 10 Gigabit Ethernet, SFP, SFP+
Storage	Up to 64 GB Flash
