Cisco ASR 1004 Hardware Installation Guide

The shared port adapters on the Cisco ASR1002-SIP10 support online insertion and removal. However,
the Cisco ASR1002-SIP10 in the Cisco ASR 1002 Router is built into the chassis and is not a
field-replaceable unit and does not support online insertion and removal.Figure 30: Cisco ASR1002-SIP10
Interface Subslot Numbering, on page 106 shows the slot numbering for the shared port adapters on the
Cisco ASR 1000 Series SPA Interface for the Cisco ASR 1002 Router.
Note

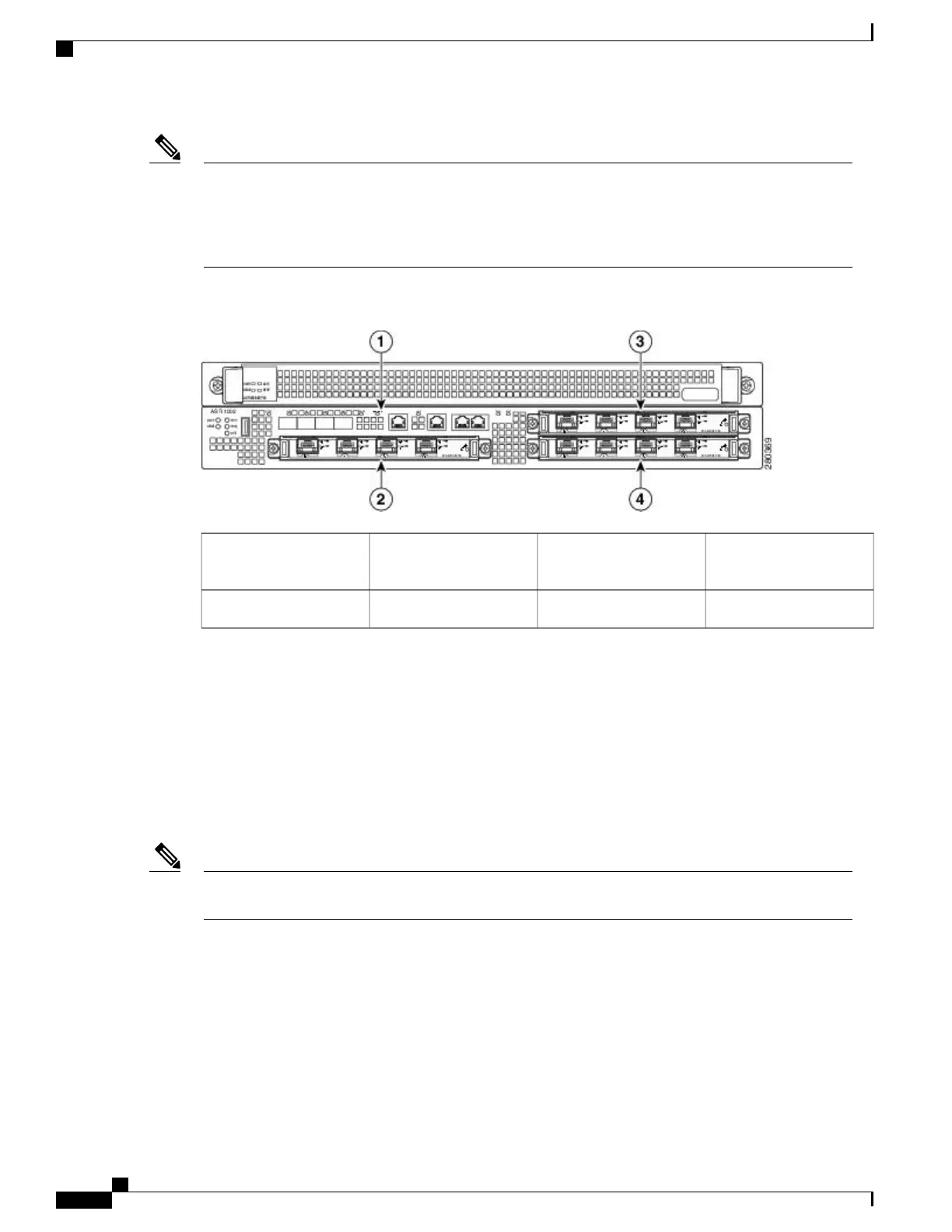

Figure 30: Cisco ASR1002-SIP10 Interface Subslot Numbering
SPA subslot 13Cisco integrated
ASR1000-RP1 subslot 0
1
SPA subslot 34SPA subslot 22
The Cisco integrated ASR1000-SIP10 (in the Cisco ASR 1002 Router) supports one built-in 4xGE SPA and
three half height SPAs in any one of the following configurations:
•
Built-in 4xGE SPA in bay 0 and three half height SPAs in bay 1, 2, 3.
•
Built-in 4xGE SPA in bay 0, one half height SPA in bay 2, and one full height SPA in bay 1.
The Cisco ASR 1000 Series SPA interface processor houses SPA bay 2 and SPA bay 3. SPA bay 0 and SPA
bay 1 are physically located on Cisco integrated ASR1000-RP1. A portion of the Cisco integrated ASR1000-RP1
is reserved to provide connectivity between SPA bay 1 and the Cisco integrated ASR1000-SIP10.
The integrated Cisco ASR1000-RP1 subslot 1 must communicate to subslot 3 of the integrated SIP when
running a full height SPA in subslot 1.
Note
Cisco ASR 1002-F Router
In the Cisco ASR 1002-F Router, the Cisco ASR1002-SIP10-F supports:
•
Three removable half-height SPAs in Bays 1, 2, and 3
•
The fourth SPA is a built-in 4xGE SPA on Bay 0 located on the Cisco ASR 1000 Series RP1
Cisco ASR 1000 Series Router Hardware Installation Guide
106
Cisco ASR 1000 Series Router SPA Interface Processors (SIPs)
Cisco ASR 1002-F Router
