Bottom slot of chassis is
Bay 0
—
One half-height SPA Bay
1
7
Cisco ASR 1001 Chassis Rear View

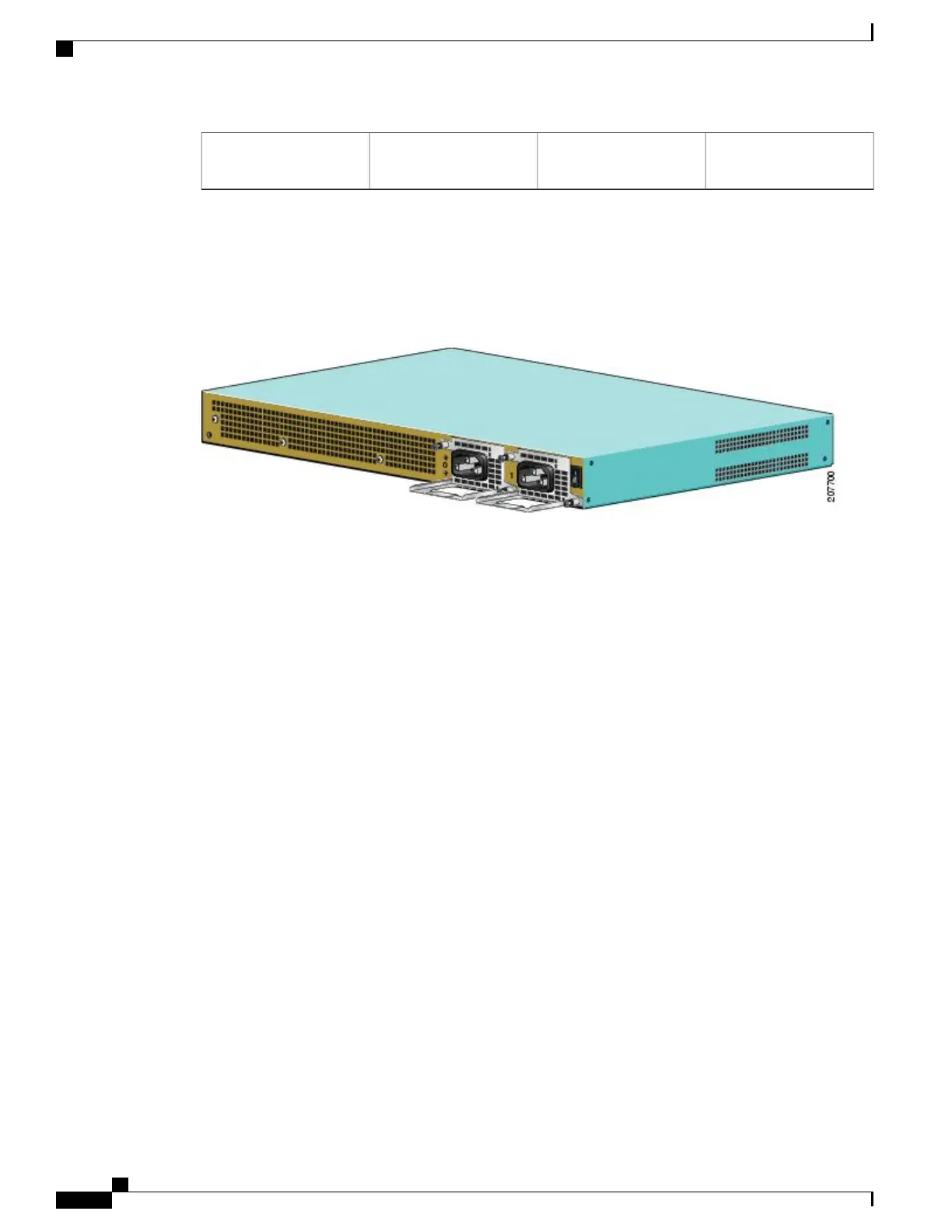

The following ima shows the rear of the Cisco ASR 1001 Router with seven fans and two AC or DC power
supplies.
Seven internal fans draw cooling air into the chassis and across internal components to maintain an acceptable
operating temperature. The fans are located at the rear of the chassis. A two-hole grounding lug is located on
the side of the chassis. Each individual fan also has a fan fail status signal. The fan fail signal is asserted if
the fan speed falls below 50% of the rated speed. The fans are numbered from zero (0) to 6, left to right.
Two power supplies, either two AC power supplies or two DC power supplies are accessed from the rear of
the router.
Cisco ASR 1001 Router Slot Numbering
The SPA bay numbering scheme for Cisco ASR 1001 Router is different from the Cisco ASR 1000 SIP card.
The SPA ordering is: Built-in GE ports (SPA 0), SPA Bay 1 (SPA 1), and I/O Board (SPA 2).
The integrated daughter card is not necessarily a SPA; it could be any I/O, such as a harddrive or USB. When
the daughter card is not a SPA, then SPA Bay 2 will be left blank and not present in the system.
The built-in GE ports are logically SPA bay 0 and will be addressed as GE 0/0/x. The half-height SPA slot
is logically SPA bay 1 and ports will be addressed as 0/1/x. Ports on the integrated daughter card are logically
in SPA bay 2 and will be addressed as 0/2/x.
Cisco ASR 1000 Series Router Hardware Installation Guide
418
Cisco ASR 1001 Router Overview and Installation
Cisco ASR 1001 Chassis Rear View

Cisco ASR 1004 Specifications

General

Product Type	Router
Form Factor	Rack-mountable
Rack Height	2U
Forwarding Capacity	Up to 20 Gbps
Total Number of Ports	Varies by configuration
Number of Total Expansion Slots	4
Product Series	ASR 1000
Model	ASR 1004
Forwarding Performance	Up to 20 Gbps
Operating System	Cisco IOS XE
Power Supply	Dual
Route Processor	ASR 1000 Series Route Processor
Network Interface Modules	SFP, SFP+, Gigabit Ethernet, 10 Gigabit Ethernet
Interfaces/Ports	Varies by configuration
Expansion Slot Type	SPA
Throughput	20 Gbps
Redundancy	Power supply, Route Processor
Interfaces	Gigabit Ethernet, 10 Gigabit Ethernet, SFP, SFP+
Storage	Up to 64 GB Flash
