The reason you may be removing an internal hard drive is that it is failing or failed; so any data recovery
may be lost.
•
If the drive is functioning, you can back it up to a drive plugged into a USB port using the archive tar
command.
Removing the Hard Drive from the Cisco ASR 1001 Router
To remove the hard drive from the Cisco ASR 1001 Router, follow this procedure:
SUMMARY STEPS
1.
Run the request platform hardware filesystem harddisk: offline command.
2.
Slip on an ESD-preventive wrist strap.
3.
From the front panel of the router, unscrew the fastener screws by using a # 2 Phillips screwdriver or a
flat head screwdriver (see xref Figure 14-6).
4.
Pull the hard drive out as shown in xref Figure 14-7.
5.
Place the hard drive in an antistatic bag if you are returning it.
6.
Wait until the following console message is displayed:
DETAILED STEPS
Step 1
Run the request platform hardware filesystem harddisk: offline command.
Step 2
Slip on an ESD-preventive wrist strap.
Step 3
From the front panel of the router, unscrew the fastener screws by using a # 2 Phillips screwdriver or a flat head screwdriver
(see xref Figure 14-6).

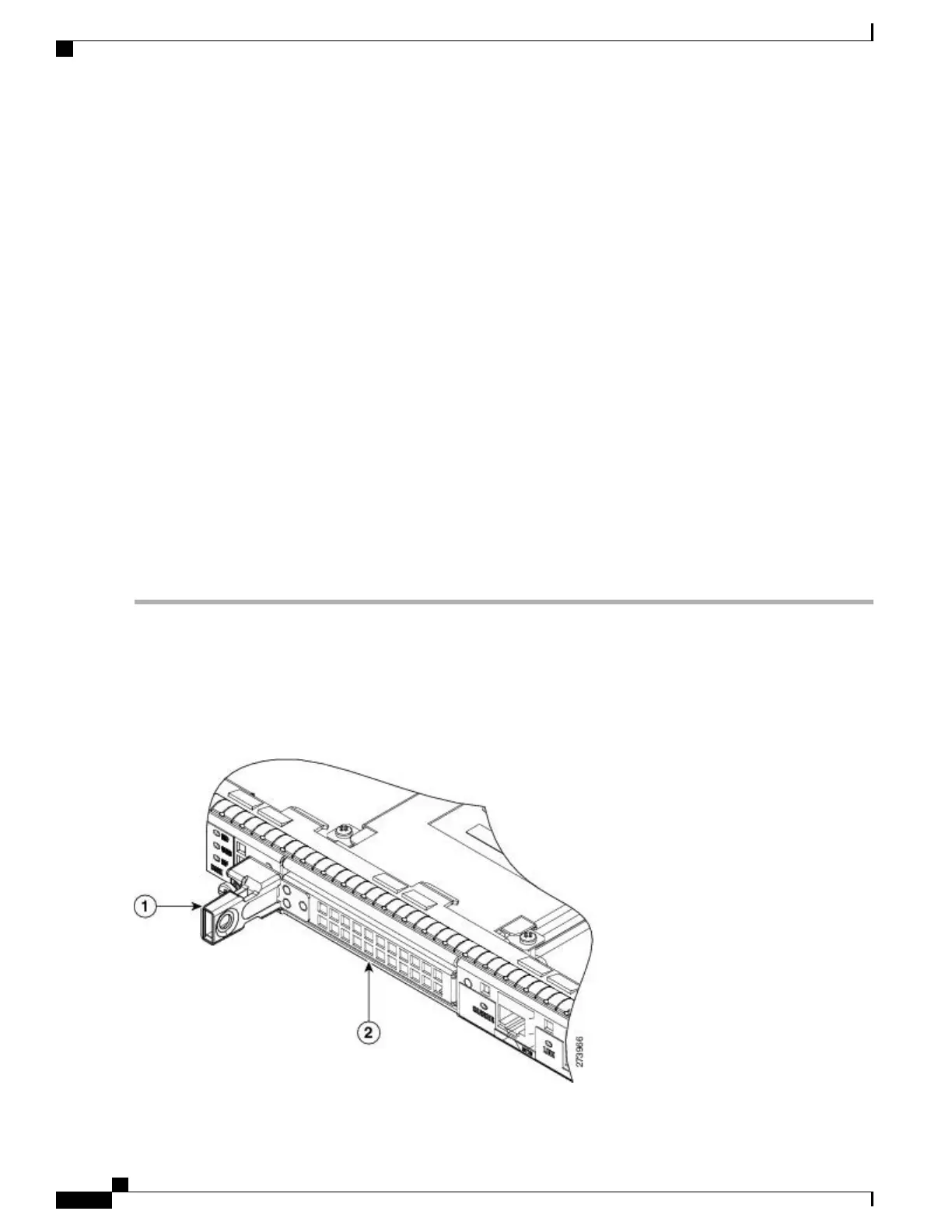

Figure 236: Cisco ASR1001 Router Front Panel
Cisco ASR 1000 Series Router Hardware Installation Guide
492
Removing and Replacing FRUs from the Cisco ASR 1000 Series Routers
Removing the Hard Drive from the Cisco ASR 1001 Router

Cisco ASR 1004 Specifications

General

Product Type	Router
Form Factor	Rack-mountable
Rack Height	2U
Forwarding Capacity	Up to 20 Gbps
Total Number of Ports	Varies by configuration
Number of Total Expansion Slots	4
Product Series	ASR 1000
Model	ASR 1004
Forwarding Performance	Up to 20 Gbps
Operating System	Cisco IOS XE
Power Supply	Dual
Route Processor	ASR 1000 Series Route Processor
Network Interface Modules	SFP, SFP+, Gigabit Ethernet, 10 Gigabit Ethernet
Interfaces/Ports	Varies by configuration
Expansion Slot Type	SPA
Throughput	20 Gbps
Redundancy	Power supply, Route Processor
Interfaces	Gigabit Ethernet, 10 Gigabit Ethernet, SFP, SFP+
Storage	Up to 64 GB Flash
