Cisco ASR 1004 Hardware Installation Guide

The following image shows the locations at which to attach the front rack-mount brackets to the Cisco ASR 1002 Router
in a rack.

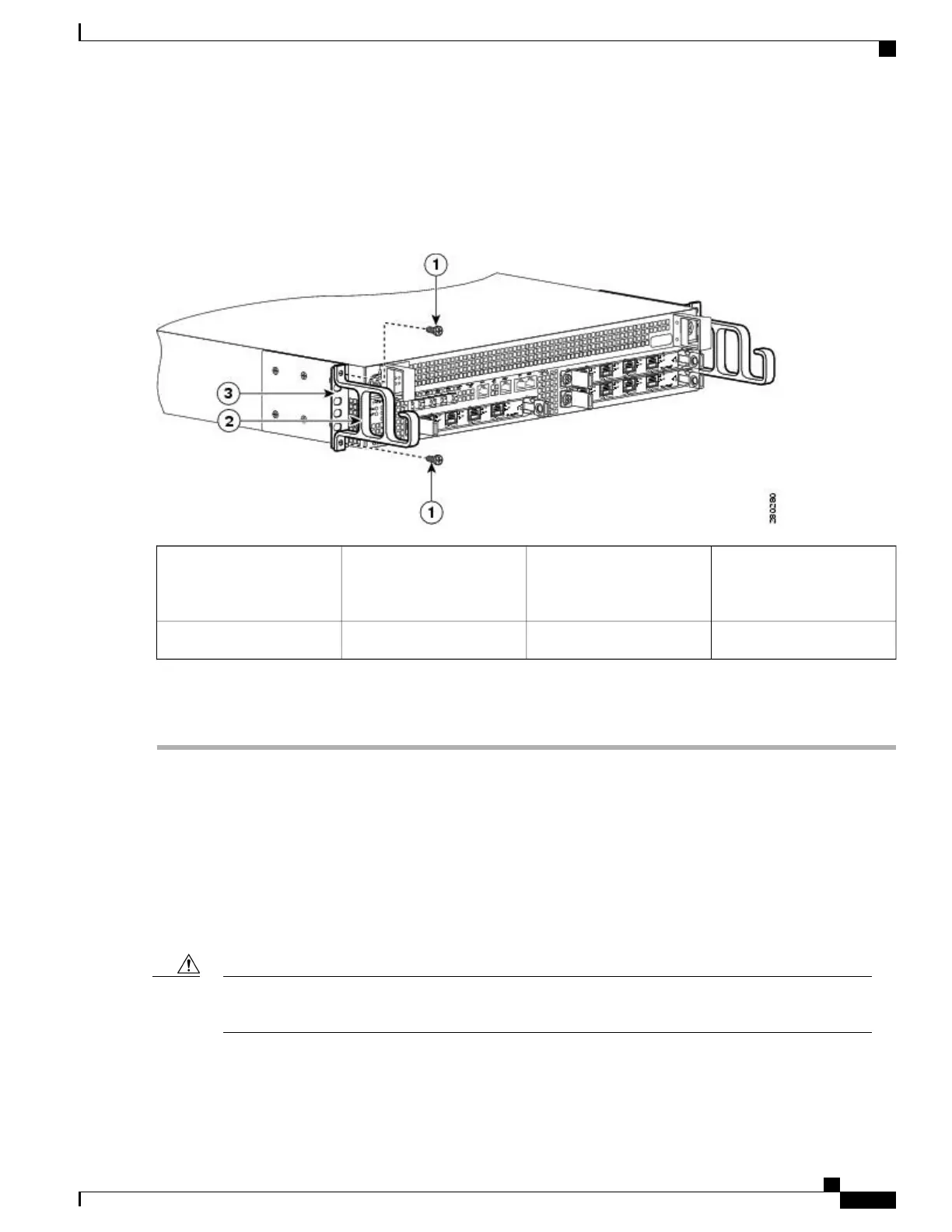

Figure 94: Chassis Rack-Mount Bracket Ear Holes for the Cable-Management Brackets
Front rack-mount bracket3Secure the
cable-management top screw
and bottom to this ear hole
1
Cable-management bracket2
Step 3
Using the bottom rack-mount ear hole, insert the screw through cable-management bracket and into the chassis rack-mount
(see Attaching the Cable-Management Bracket, on page 248).
What to Do Next
This completes the procedure for installing the cable-management brackets on the chassis.
Attaching a Chassis Ground Connection
Connecting the Cisco ASR 1002 chassis to ground is required for all DC powered installations and any AC
powered installation where compliance with Telcordia grounding requirements is necessary.
The dual-lug chassis ground stud must be installed, all cards or filler plates must be fully inserted and
screwed in and earthed to prevent a potential hazard in a telecom line.
Caution
Have the recommended tools and supplies available before you begin this procedure.
Cisco ASR 1000 Series Router Hardware Installation Guide
249
Cisco ASR 1002 Router Overview and Installation
Attaching a Chassis Ground Connection

Cisco ASR 1004 Specifications

General

Product Type	Router
Form Factor	Rack-mountable
Rack Height	2U
Forwarding Capacity	Up to 20 Gbps
Total Number of Ports	Varies by configuration
Number of Total Expansion Slots	4
Product Series	ASR 1000
Model	ASR 1004
Forwarding Performance	Up to 20 Gbps
Operating System	Cisco IOS XE
Power Supply	Dual
Route Processor	ASR 1000 Series Route Processor
Network Interface Modules	SFP, SFP+, Gigabit Ethernet, 10 Gigabit Ethernet
Interfaces/Ports	Varies by configuration
Expansion Slot Type	SPA
Throughput	20 Gbps
Redundancy	Power supply, Route Processor
Interfaces	Gigabit Ethernet, 10 Gigabit Ethernet, SFP, SFP+
Storage	Up to 64 GB Flash
