The following imave shows the locations at which to attach the front rack mount brackets to the Cisco ASR 1002-X
Router in a rack.

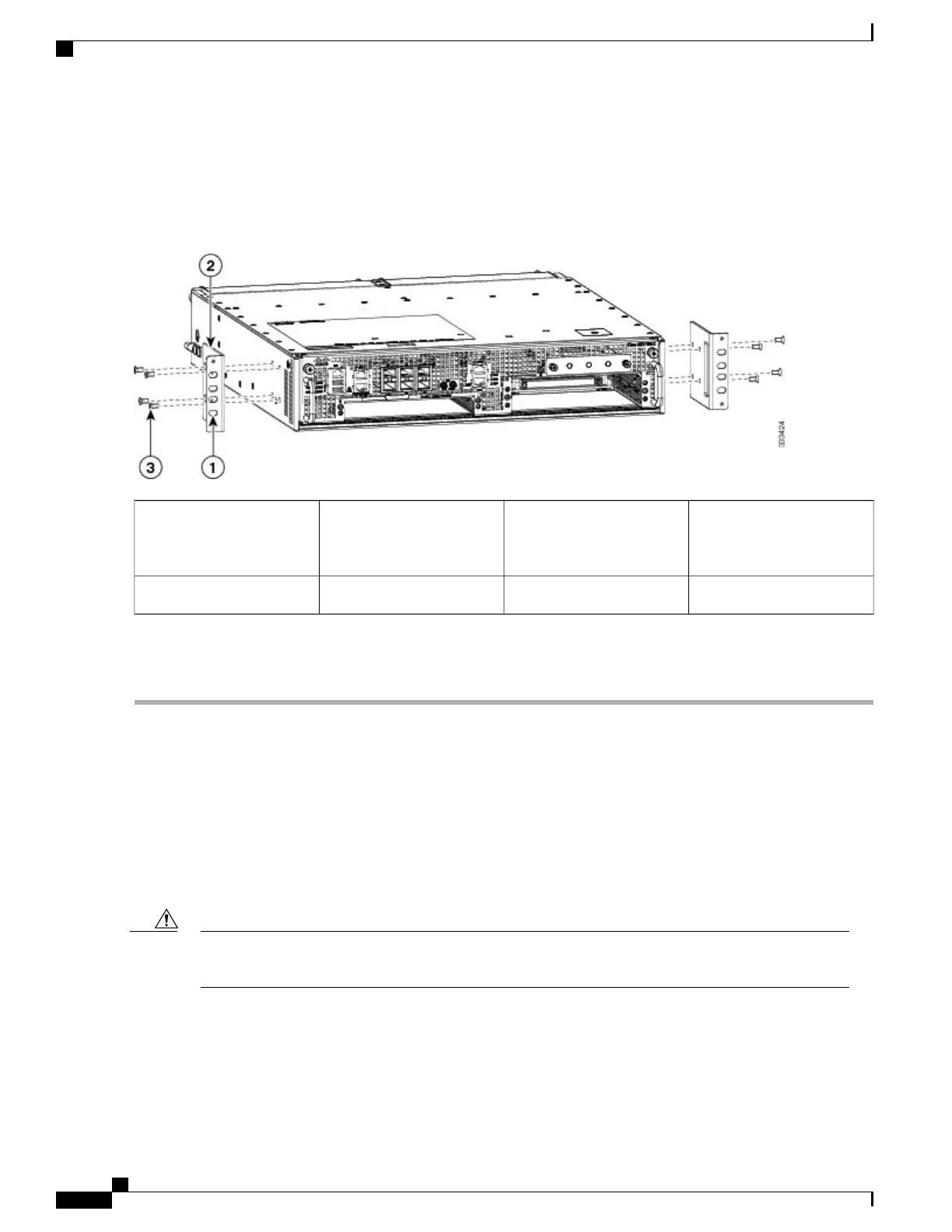

Figure 158: Chassis Rack Mount Bracket Ear Holes for the Cable Management Brackets
Front rack mount bracket3Secure the cable
management top screw and
bottom to this ear hole
1
—
Cable-management bracket2
Step 3
Using the bottom rack mount ear hole, insert the screw through cable management bracket and into the chassis rack
mount (see Figure 158: Chassis Rack Mount Bracket Ear Holes for the Cable Management Brackets, on page 346).
What to Do Next
This completes the procedure for installing the cable management brackets on the chassis.
Attaching a Chassis Ground Connection
Connecting the Cisco ASR 1002-X chassis to ground is required for all DC-powered installations and
AC-powered installation where compliance with Telcordia grounding requirements is necessary.
The dual-lug chassis ground stud must be installed and all the cards and filler plates must be fully inserted,
screwed in, and earthed to prevent a potential hazard in a telecom line.
Caution
Have the recommended tools and supplies available before you begin this procedure.
Cisco ASR 1000 Series Router Hardware Installation Guide
346
Cisco ASR 1002-X Router Overview and Installation
Attaching a Chassis Ground Connection
