What to Do Next
This completes the procedure for removing the DC power supply from the ASR 1001 Router.
Wiring the DC Input Power Source
The Cisco ASR 1001 Router DC power supply has a connector plug that is installed into the power supply
terminal block header. The following figure shows a view of a DC power supply with a DC connector plug
inserted (no wires installed) into the power supply block header in power supply PS0 (on the left) and the
other power supply with no connector plug inserted into power supply PS1 (on the right).

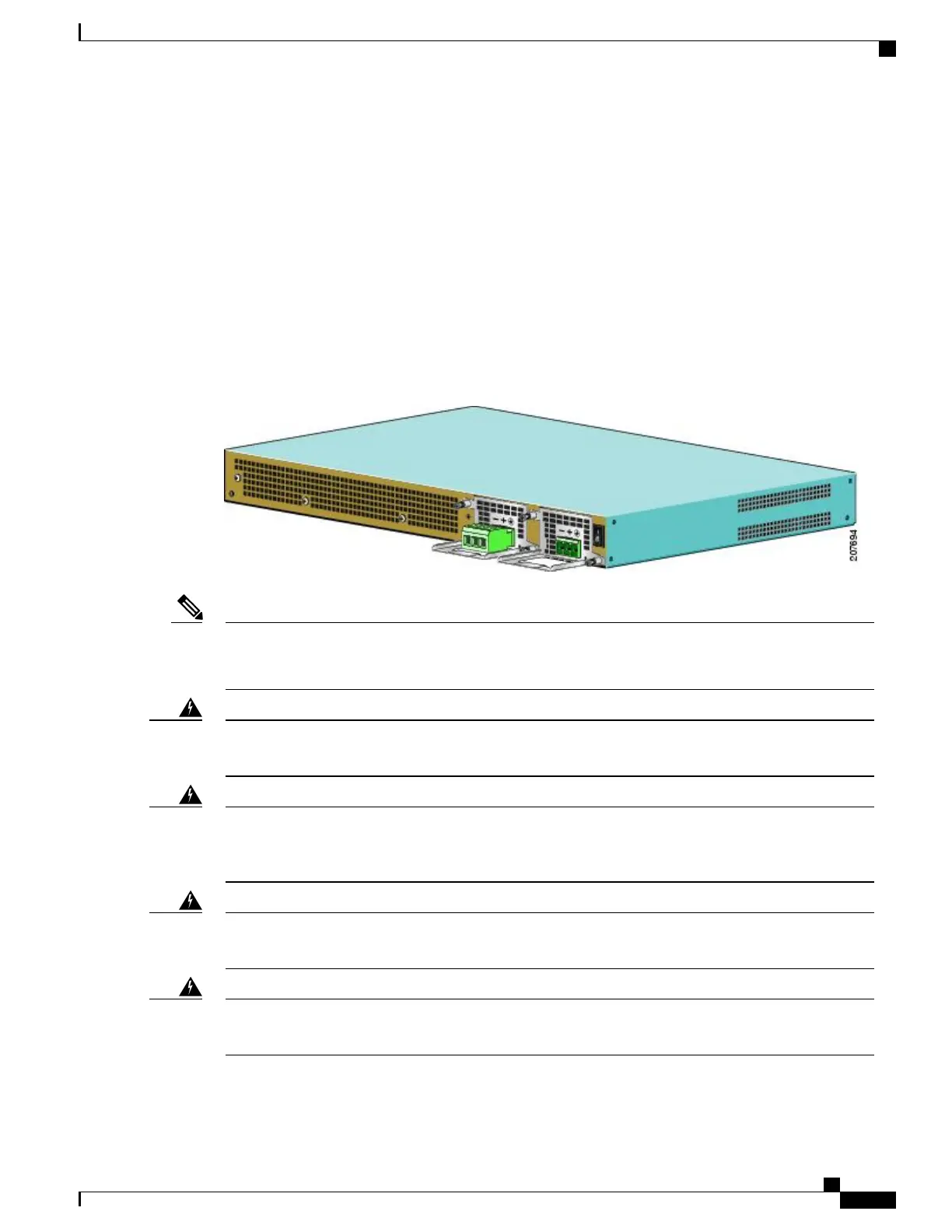

Figure 306: Cisco ASR 1001 Router DC Power Supply Terminal Block With a Connector Plug in Slot PS01 and Without a
Plug in PS0
The color coding of the DC input power supply leads depends on the color coding of the DC power source
at your site. Make certain the lead color coding you choose for the DC input power supply matches lead
color coding used at the DC power source.
Note
When installing or replacing the unit, the ground connection must always be made first and disconnected
last. Statement 1046
Warning
This product relies on the building’s installation for short-circuit (overcurrent) protection. Ensure that the
protective device is rated not greater than: 120 VAC, 20A U.S. (240 VAC, 10A international). Statement
1005
Warning
Before performing any of the following procedures, ensure that power is removed from the DC circuit.
Statement 1003
Warning
Only trained and qualified personnel should be allowed to install, replace, or service this equipment.
Statement 1030
Warning
Use the information in this section to wire the DC input power source.
Cisco ASR 1000 Series Router Hardware Installation Guide
607
Removing and Replacing FRUs from the Cisco ASR 1000 Series Routers
Removing DC Input Power from the Cisco ASR 1001 Router
