The following figure shows the Cisco ASR 1002-F Router integrated RP console and auxiliary port connection.

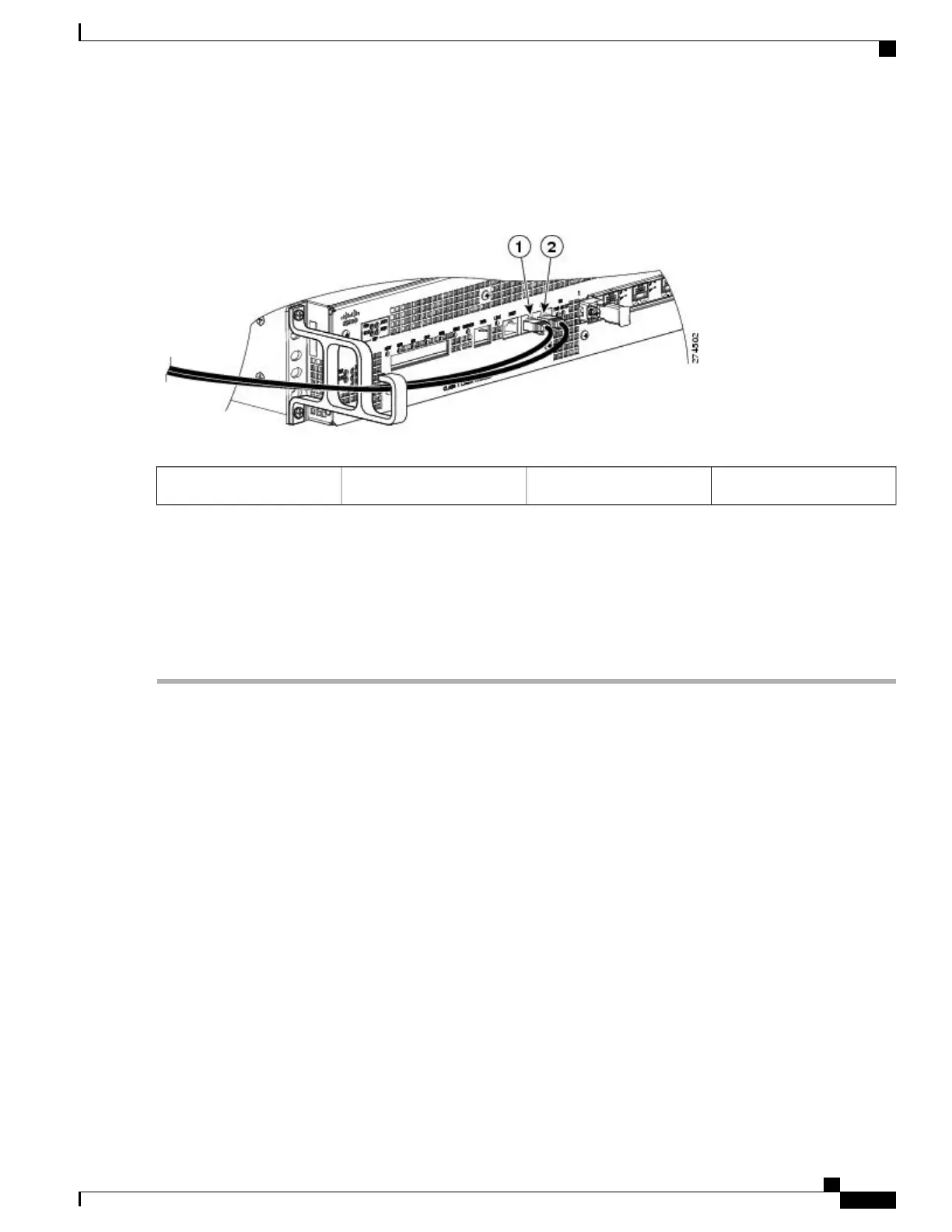

Figure 143: Cisco ASR 1002-F Router Integrated RP Console and Auxiliary Port Connection
Auxiliary port (AUX)2Console port (CON)1
Step 2
Run the cable up and through the cable-management bracket and connect the other end of the RJ-45 cable to the RJ-45
adapter (see the above figure).
Step 3
Connect the adapter to your video terminal to complete the cable connection.
Step 4
Power on your video terminal.
Step 5
Configure your video terminal to match the following default console port settings: 9600 baud, 8 data bits, no parity
generation or checking, 1 stop bit, and no flow control
What to Do Next
Go to the “Connecting Cables” section to continue the installation.
Connecting Cables
Keep the following guidelines in mind when connecting external cables to the Cisco ASR 1002-F Router:
•
To reduce the chance of interference, avoid crossing high-power lines with any interface cables.
•
Verify all cabling limitations (particularly distance) before powering on the system
.
Cisco ASR 1000 Series Router Hardware Installation Guide
315
Cisco ASR 1002-F Router Overview and Installation
Connecting Cables

Cisco ASR 1004 Specifications

General

Product Type	Router
Form Factor	Rack-mountable
Rack Height	2U
Forwarding Capacity	Up to 20 Gbps
Total Number of Ports	Varies by configuration
Number of Total Expansion Slots	4
Product Series	ASR 1000
Model	ASR 1004
Forwarding Performance	Up to 20 Gbps
Operating System	Cisco IOS XE
Power Supply	Dual
Route Processor	ASR 1000 Series Route Processor
Network Interface Modules	SFP, SFP+, Gigabit Ethernet, 10 Gigabit Ethernet
Interfaces/Ports	Varies by configuration
Expansion Slot Type	SPA
Throughput	20 Gbps
Redundancy	Power supply, Route Processor
Interfaces	Gigabit Ethernet, 10 Gigabit Ethernet, SFP, SFP+
Storage	Up to 64 GB Flash
