Cisco ASR 1004 Hardware Installation Guide

Step 3
Attach the grounding lug with the wire on the left to avoid having the grounding wire overlapping the power supply.
Step 4
Locate the chassis ground connector on the side of your chassis.
Step 5
The following image shows how to attach the grounding lug to the chassis ground connector.

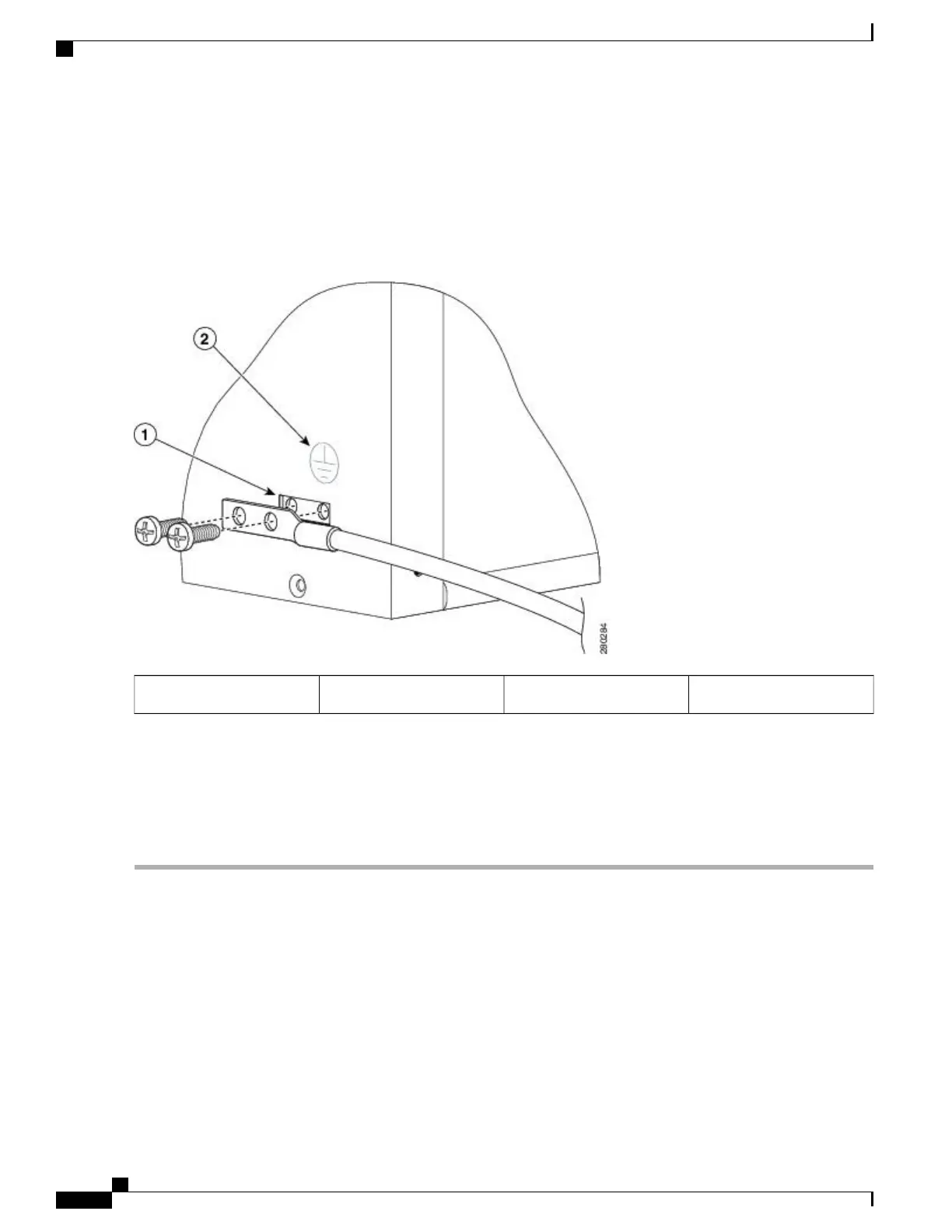

Figure 97: Attaching a Grounding Lug to the Chassis Ground Connector
Ground symbol2Chassis ground connector1
Step 6
Insert the two screws through the holes in the grounding lug.
Step 7
Use the Number 2 Phillips screwdriver to carefully tighten the screws until the grounding lug is held firmly to the chassis.
Do not overtighten the screws.
Step 8
Connect the opposite end of the grounding wire to the appropriate grounding point at your site to ensure an adequate
chassis ground.
What to Do Next
This completes the procedure for attaching a chassis ground connection. Go to the following cabling sections
for information on attaching cables.
Connecting the Shared Port Adapter Cables
The instructions for connecting the cables for the shared port adapter installed in the Cisco ASR 1002 Router
are contained in the respective configuration documents for each port adapter. For example, if you are
Cisco ASR 1000 Series Router Hardware Installation Guide
252
Cisco ASR 1002 Router Overview and Installation
Connecting the Shared Port Adapter Cables
