SUMMARY STEPS
1.
Use the wire stripper to strip one end of the AWG #6 wire approximately 0.75 inches (19.05 mm).
2.
Insert the AWG #6 wire into the wire receptacle on the grounding lug. Use the manufacturers’s
recommended crimping tool to carefully crimp the wire receptacle around the wire; this step is required
to ensure a proper mechanical connection.
3.
Attach the grounding lug with the wire on the left to avoid having the grounding wire overlapping the
power supply.
4.
Locate the chassis ground connector on the side of your chassis.
5.
The following image shows how to attach the grounding lug to the chassis ground connector.
6.
Insert the two screws through the holes in the grounding lug.
7.
Use the Number 2 Phillips screwdriver to carefully tighten the screws until the grounding lug is held firmly
to the chassis. Do not overtighten the screws.
8.
Connect the opposite end of the grounding wire to the appropriate grounding point at your site to ensure
an adequate chassis ground.
DETAILED STEPS
Step 1
Use the wire stripper to strip one end of the AWG #6 wire approximately 0.75 inches (19.05 mm).
Step 2
Insert the AWG #6 wire into the wire receptacle on the grounding lug. Use the manufacturers’s recommended crimping
tool to carefully crimp the wire receptacle around the wire; this step is required to ensure a proper mechanical connection.

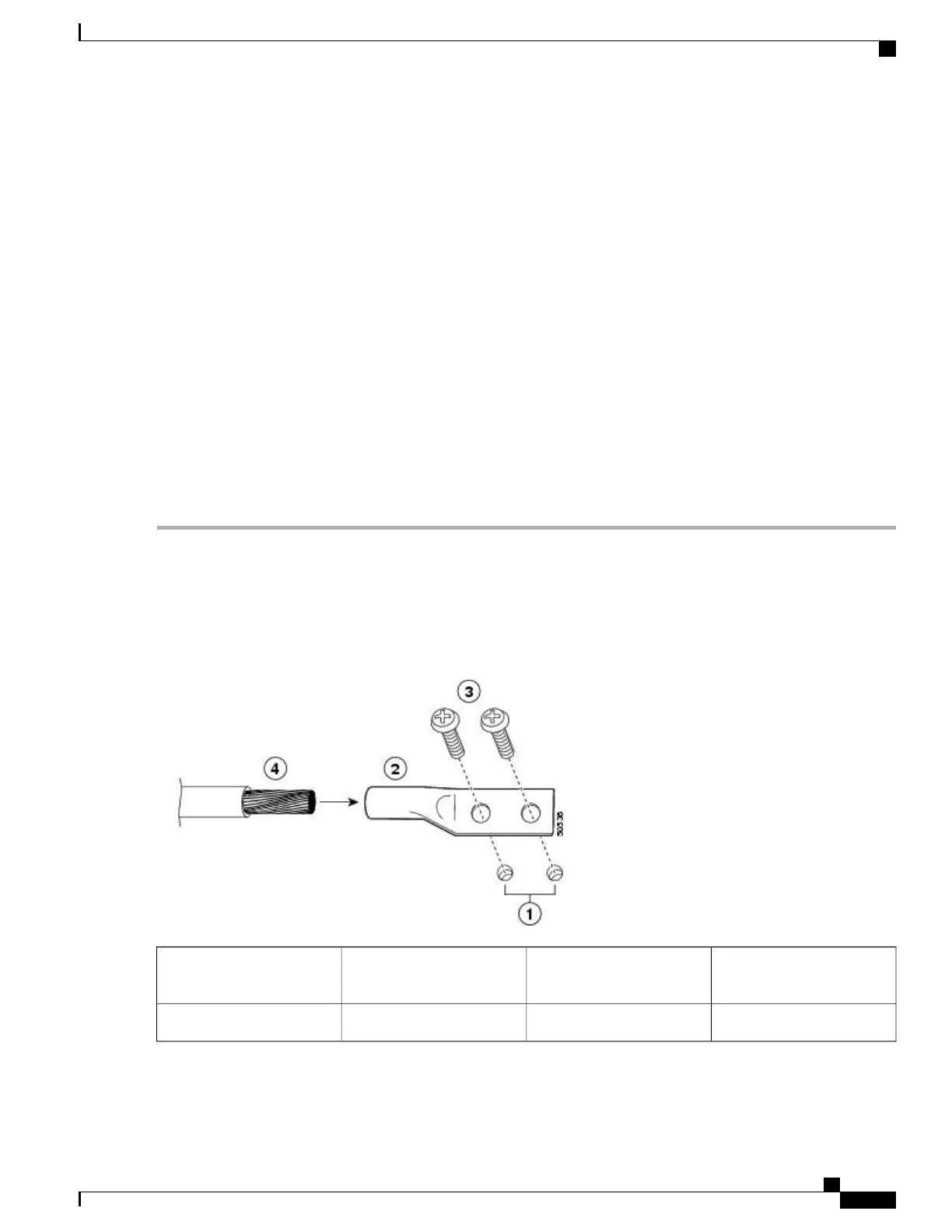

The following image shows the parts of the grounding lug.
Figure 96: Parts of the Grounding Lug
Ground lug screws3Chassis ground connector
holes
1
Ground wire4Grounding lug2
Cisco ASR 1000 Series Router Hardware Installation Guide
251
Cisco ASR 1002 Router Overview and Installation
Attaching a Chassis Ground Connection
