Cisco ASR 1004 Hardware Installation Guide

For information about the SFP transceiver modules that are compatible with the Cisco ASR 1002-X Built-in
Gigabit Ethernet Ports (6x1GE), refer to the “Modular Optics Compatibility” section in the Cisco ASR 1000
Series Aggregation Services Routers SIP and SPA Hardware Installation Guide .
•
An optional hard drive.
The forwarding bandwidth provided by the Cisco ASR 1002-X Router's ESP can be upgraded to 36 Gbps,
depending on the Cisco software license that you install. The power supply modules of the router are
field-replaceable units.
This section contains the following topics:
Front View of the Cisco ASR 1002-X Router
The following image shows the front view of the Cisco ASR 1002-X Router.

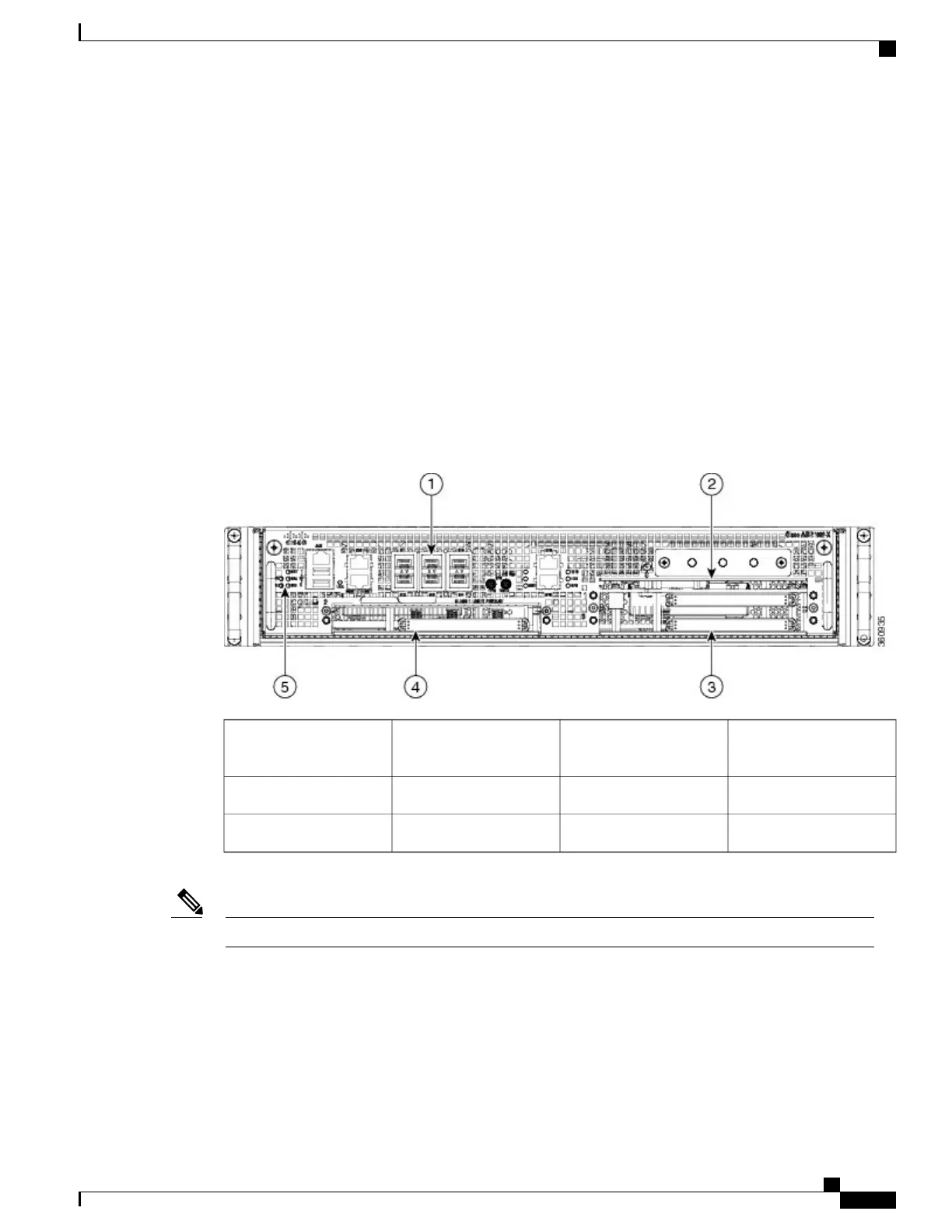

Figure 144: Cisco ASR 1002-X Router — Front View
SPA slot 24Built-in 6x1GE SPA in
slot 0
1
ESP LEDs5SPA slot 12
SPA slot 33
The SPAs that you insert in slots 1 to 3 are field upgradeable.Note
Cisco ASR 1000 Series Router Hardware Installation Guide
319
Cisco ASR 1002-X Router Overview and Installation
Front View of the Cisco ASR 1002-X Router

Cisco ASR 1004 Specifications

General

Product Type	Router
Form Factor	Rack-mountable
Rack Height	2U
Forwarding Capacity	Up to 20 Gbps
Total Number of Ports	Varies by configuration
Number of Total Expansion Slots	4
Product Series	ASR 1000
Model	ASR 1004
Forwarding Performance	Up to 20 Gbps
Operating System	Cisco IOS XE
Power Supply	Dual
Route Processor	ASR 1000 Series Route Processor
Network Interface Modules	SFP, SFP+, Gigabit Ethernet, 10 Gigabit Ethernet
Interfaces/Ports	Varies by configuration
Expansion Slot Type	SPA
Throughput	20 Gbps
Redundancy	Power supply, Route Processor
Interfaces	Gigabit Ethernet, 10 Gigabit Ethernet, SFP, SFP+
Storage	Up to 64 GB Flash
