c_Rear_View_1271213.xml shows the Cisco ASR 1002 Router DC power supply.

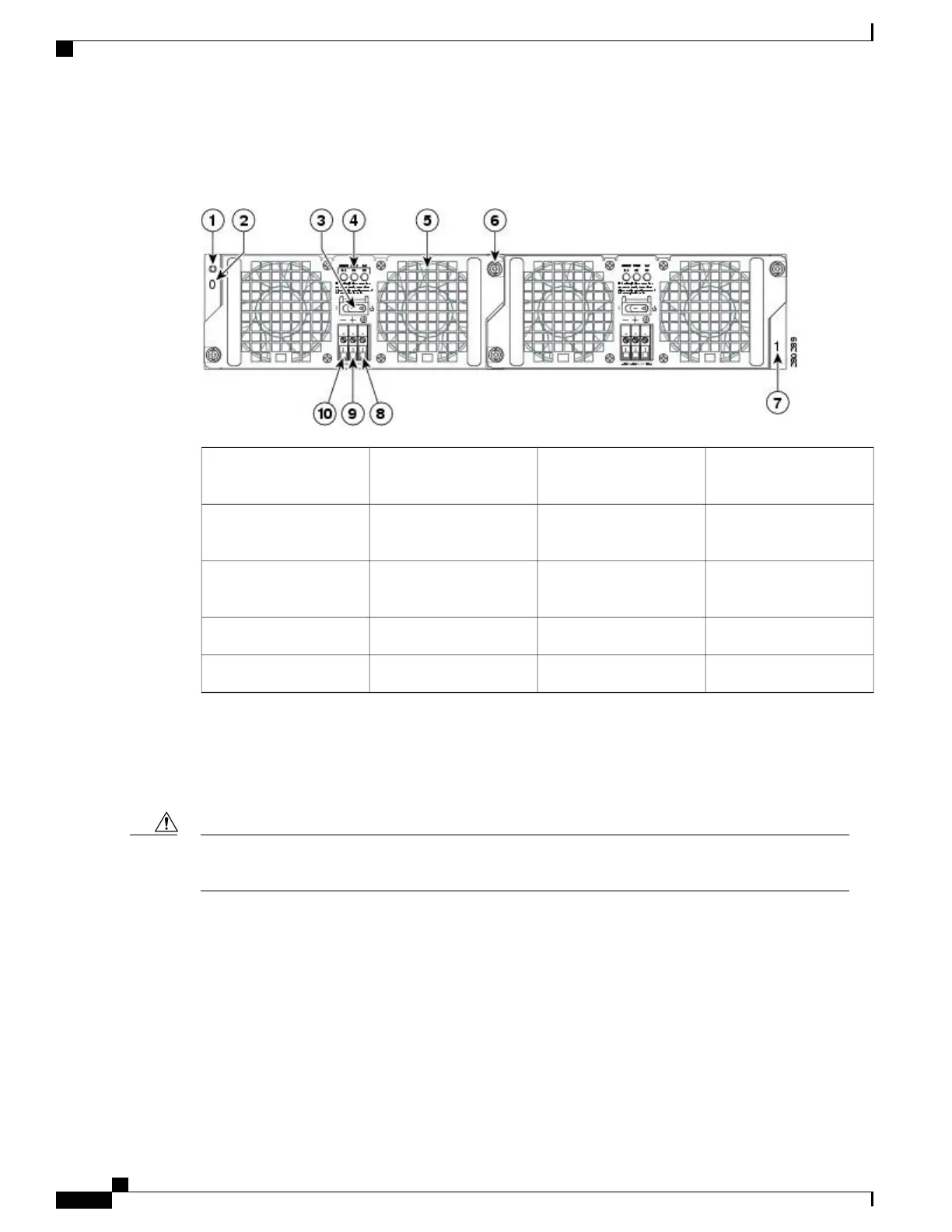

Figure 81: Cisco ASR 1002 Router DC Power Supply
DC power supply captive
installation screw
6Chassis ESD socket1
DC power supply slot 1
label
7DC power supply slot 0
label
2
Ground lead8DC power supply switch
Standby/On (|)
3
Positive lead9DC power supply LEDs4
Negative lead10Power supply fan5
Internal fans draw cooling air into the chassis and across internal components to maintain an acceptable
operating temperature. The fans are located at the rear of the chassis. A two-hole grounding lug is located on
the side of the chassis. Two power supplies, either two AC power supplies or two DC power supplies are
accessed from the rear of the router.
Use only AC power supplies or DC power supplies in the Cisco ASR 1002 Router. Do not mix power
supply types.
Caution
Cisco ASR 1002 Router Slot Numbering
The Cisco ASR 1002 Router contains one Cisco embedded ASR1002-RP1 which is addressed as R0 and one
Cisco ASR1000-ESP5 or ASR1000-ESP10 forwarding processor in slot F0. The Cisco ASR 1002 Router
consists of an embedded ASR1000-RP1 and embedded ASR1000-SIP10 board supporting three half-height
SPAs or 1half-height and one full-height SPA and one Cisco ASR1000-ESP5 forwarding processor.
The SPA bays are bay 1, bay 2, and bay 3. The built-in 4xGE SPA ports are located in the SPA 0 location
and will be addressed as GE 0/0/x. The Cisco ASR 1002 Router provides a built-in 4-Gigabit Ethernet interface
Cisco ASR 1000 Series Router Hardware Installation Guide
222
Cisco ASR 1002 Router Overview and Installation
Rear View

Cisco ASR 1004 Specifications

General

Product Type	Router
Form Factor	Rack-mountable
Rack Height	2U
Forwarding Capacity	Up to 20 Gbps
Total Number of Ports	Varies by configuration
Number of Total Expansion Slots	4
Product Series	ASR 1000
Model	ASR 1004
Forwarding Performance	Up to 20 Gbps
Operating System	Cisco IOS XE
Power Supply	Dual
Route Processor	ASR 1000 Series Route Processor
Network Interface Modules	SFP, SFP+, Gigabit Ethernet, 10 Gigabit Ethernet
Interfaces/Ports	Varies by configuration
Expansion Slot Type	SPA
Throughput	20 Gbps
Redundancy	Power supply, Route Processor
Interfaces	Gigabit Ethernet, 10 Gigabit Ethernet, SFP, SFP+
Storage	Up to 64 GB Flash
