Connecting the Shared Port Adapter Cables
The instructions for connecting the cables for the shared port adapter (SPA) installed in the Cisco ASR 1002-F
Router are contained in the respective configuration documents for SPAs. For detailed SPA information, see
Cisco ASR 1000 Series Aggregation Services Routers SIP and SPA Hardware Installation Guide .
Connecting the Console and Auxiliary Port Cables
This section describes how to attach a cable to the Cisco integrated RP console or auxiliary ports on the Cisco
ASR 1002-F Router. The Cisco ASR 1002-F Router uses RJ-45 ports for both the auxiliary port and console
port to attach a console terminal.
To meet Class A emission requirements on the Cisco ASR 1002-F Router, shielded cables must be used
for the console and auxiliary port connectors.
Caution
Before you can use the console interface on the router using a terminal or PC, you must perform the following
steps:
Step 1
Before connecting a terminal to the console port or auxiliary port, configure the terminal to match the chassis console
port as follows: 9600 baud, 8 data bits, no parity, 1 stop bits (9600 8N1).
Step 2
Connect to the port using an RJ-45 cable to a DB-9 cable.
For information about how to change the default settings to meet the requirements of your terminal or host, see
Cisco IOS Terminal Services Configuration Guide. For route processor pinout specifications, see the “Cisco
ASR1000-RP2 Pinout Specifications” section.
Note
The following figure shows the integrated RP console and auxiliary port connectors.

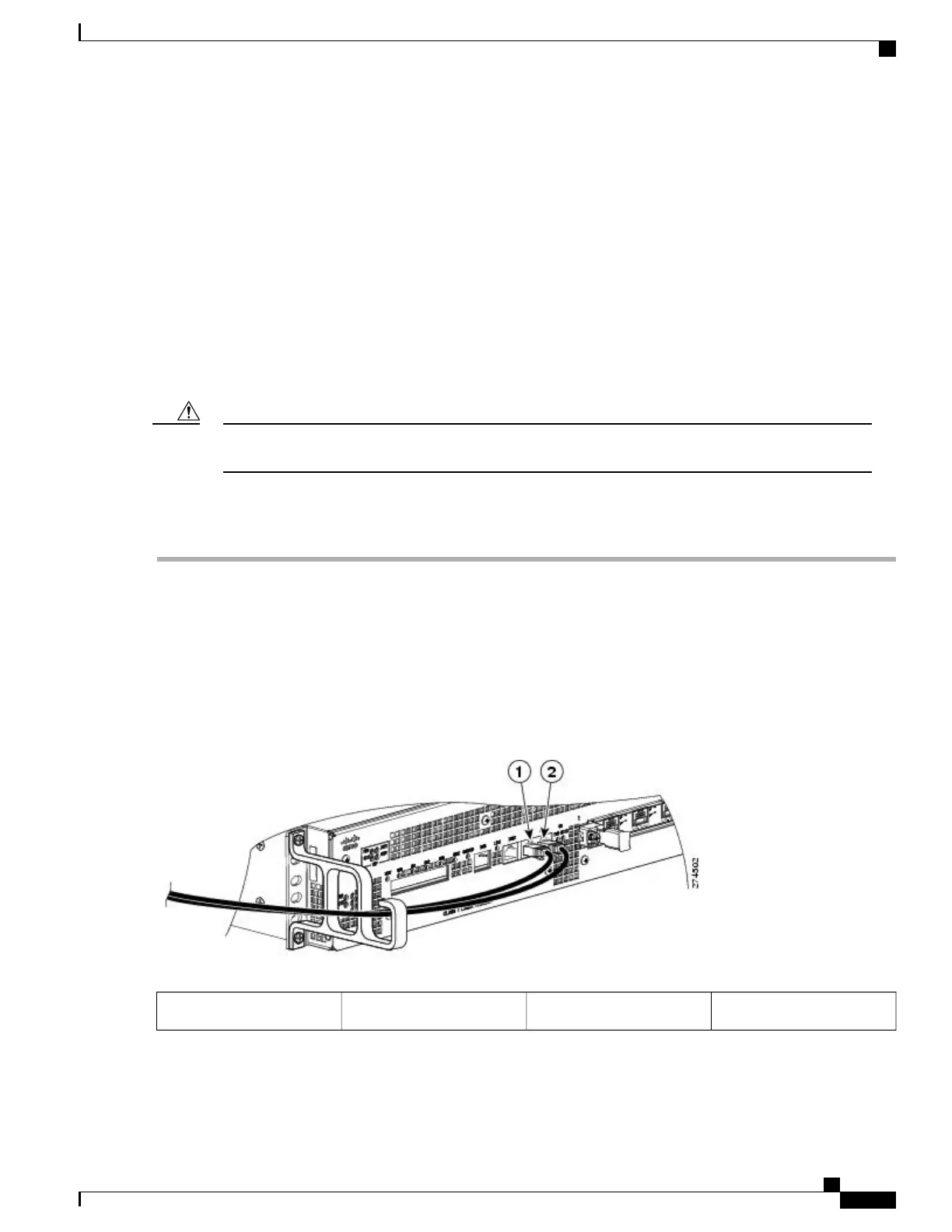

Figure 135: Cisco ASR 1002-F Router Integrated RP Console and Auxiliary Port Connectors
Auxiliary port (AUX)2Console port (CON)1
