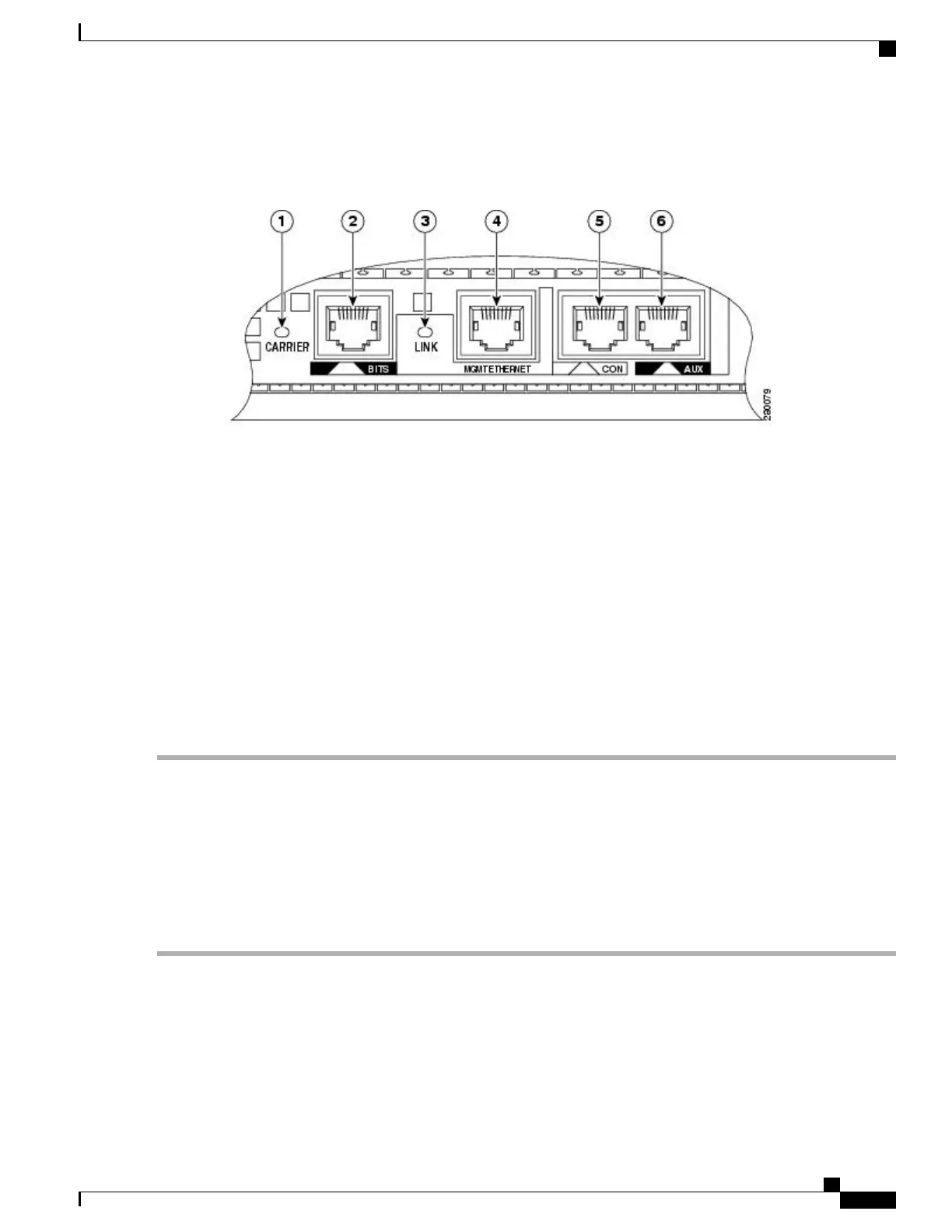

The following image shows the Cisco ASR 1000 Series route processor console port connectors.
Figure 194: Cisco ASR 1000 Series Route Processor Console Port Connectors
SUMMARY STEPS
1.
Connect one end of the RJ-45 cables to the serial RJ-45 port (CON) on the Cisco ASR1000-RP2 route
processor.
2.
Run the cable up and through the cable-management bracket and connect the other end of the RJ-45 cable
to the RJ-45 adapter,
3.
Connect the adapter to your video terminal to complete the cable connection.
4.
Power on your video terminal.
5.
Configure your video terminal to match the following default console port settings: 9600 baud, 8 data bits,
No parity generation or checking, 1 stop bit, and No flow control.
6.
Go to the Connecting the System Cables, on page 403 to continue the installation.
DETAILED STEPS
Step 1
Connect one end of the RJ-45 cables to the serial RJ-45 port (CON) on the Cisco ASR1000-RP2 route processor.
Step 2
Run the cable up and through the cable-management bracket and connect the other end of the RJ-45 cable to the RJ-45
adapter,
Step 3
Connect the adapter to your video terminal to complete the cable connection.
Step 4
Power on your video terminal.
Step 5
Configure your video terminal to match the following default console port settings: 9600 baud, 8 data bits, No parity
generation or checking, 1 stop bit, and No flow control.
Step 6
Go to the Connecting the System Cables, on page 403 to continue the installation.
