This section describes how to remove and then replace the Cisco ASR 1002-X Router DIMMs (see xref Figure
14-16).

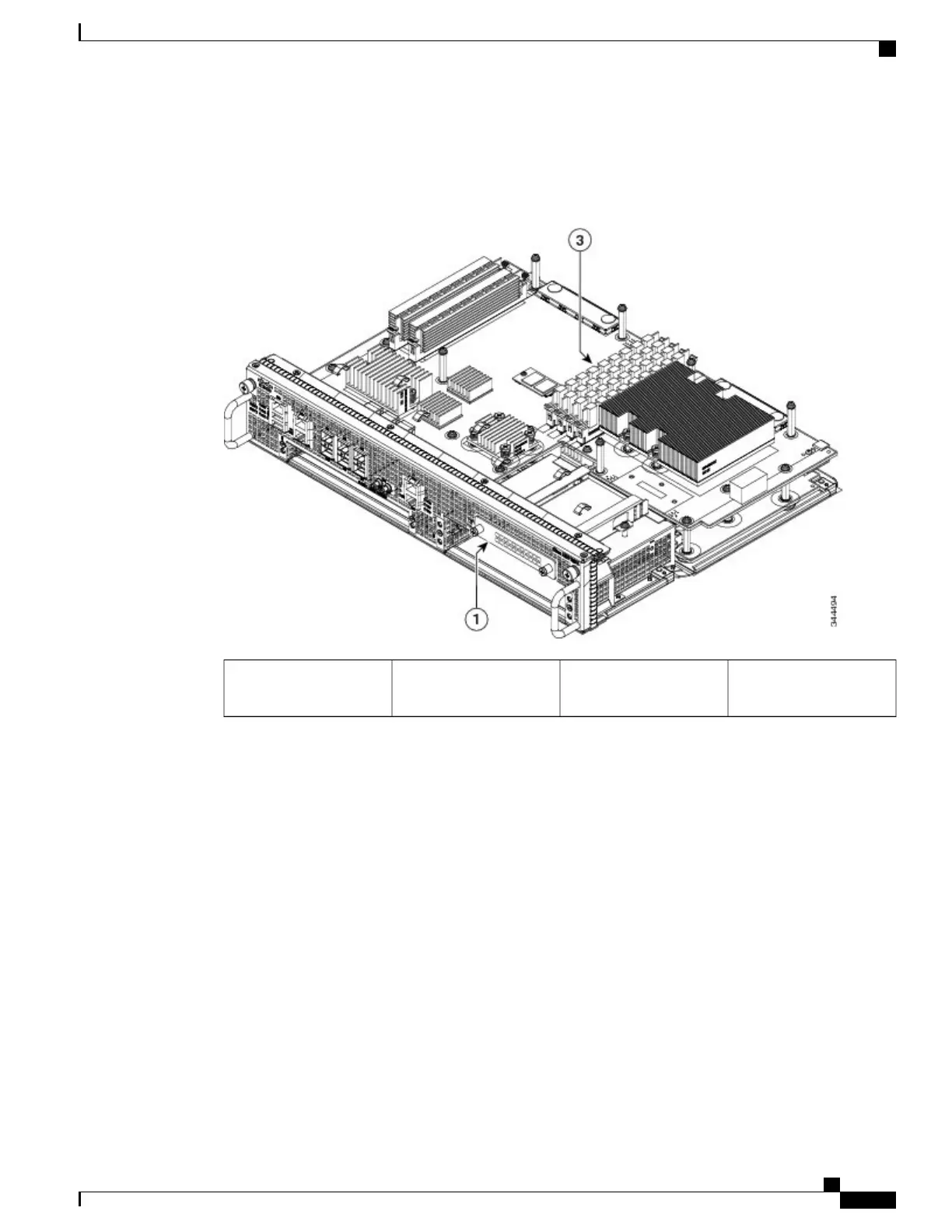

Figure 251: Cisco ASR1002-X Router Module Internal Component Location
Cisco ASR1002-X Router
DIMM location
3Internal hard drive
location
1
Removing the Cisco ASR1002-X Router DIMMs
Follow these steps to remove the Cisco ASR1002-X Router DIMMs:
Cisco ASR 1000 Series Router Hardware Installation Guide
515
Removing and Replacing FRUs from the Cisco ASR 1000 Series Routers
Removing and Replacing the Cisco ASR 1002-X Router DIMM Memory Modules

Cisco ASR 1004 Specifications

General

Product Type	Router
Form Factor	Rack-mountable
Rack Height	2U
Forwarding Capacity	Up to 20 Gbps
Total Number of Ports	Varies by configuration
Number of Total Expansion Slots	4
Product Series	ASR 1000
Model	ASR 1004
Forwarding Performance	Up to 20 Gbps
Operating System	Cisco IOS XE
Power Supply	Dual
Route Processor	ASR 1000 Series Route Processor
Network Interface Modules	SFP, SFP+, Gigabit Ethernet, 10 Gigabit Ethernet
Interfaces/Ports	Varies by configuration
Expansion Slot Type	SPA
Throughput	20 Gbps
Redundancy	Power supply, Route Processor
Interfaces	Gigabit Ethernet, 10 Gigabit Ethernet, SFP, SFP+
Storage	Up to 64 GB Flash
