The following image shows where to attach the front rack-mount brackets to the Cisco ASR 1002-F Router. Depending
on the bracket holes you use, the chassis may protrude in the rack.

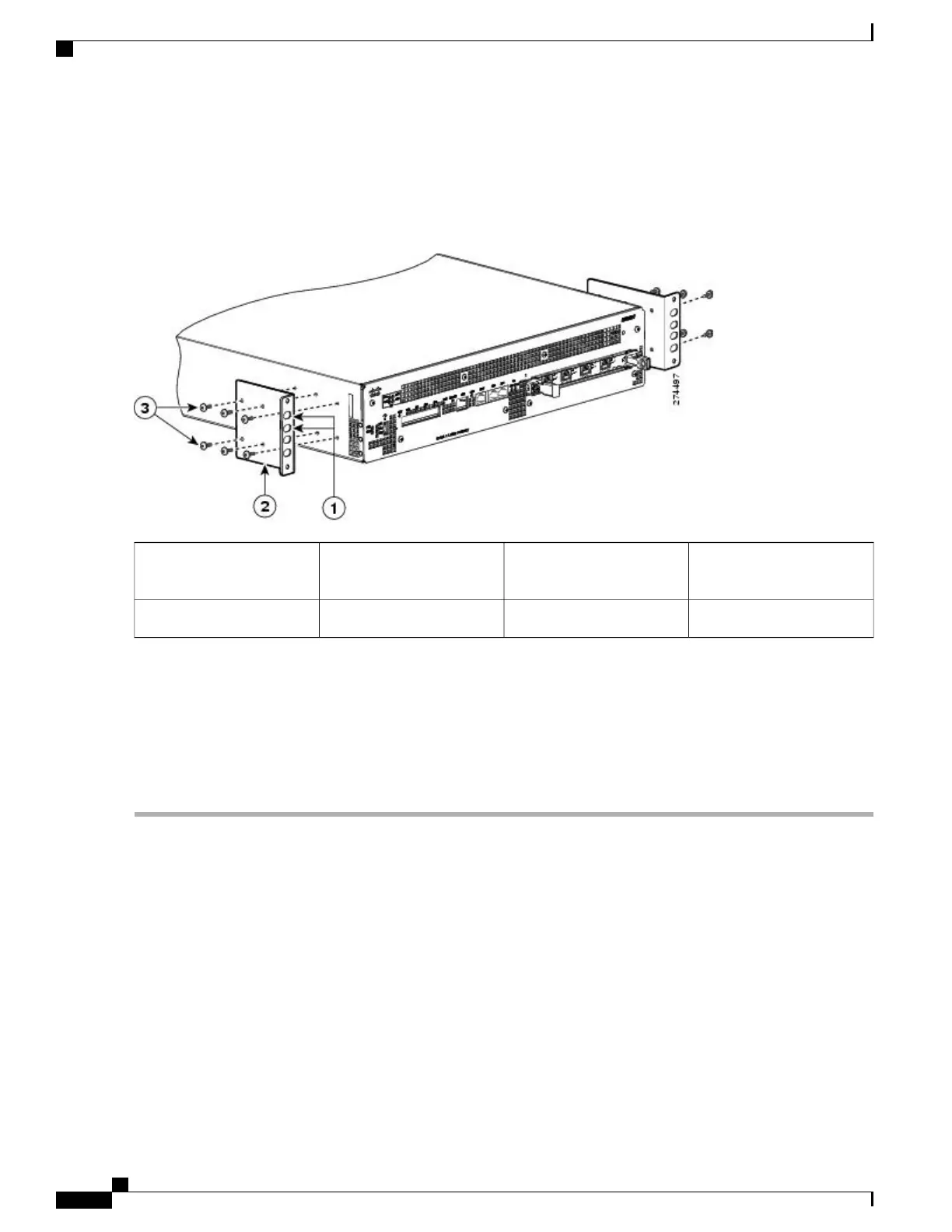

Figure 127: Attaching the Front Rack-Mount Brackets to the Cisco ASR 1002-F Router
Front rack-mount bracket
screws
3Front rack-mount bracket ear
and holes
1
——
Front rack-mount bracket2
Step 2
Position the front rack-mount bracket top hole with the chassis first top hole behind the side vent holes.
Step 3
Insert and tighten the black screws on one side.
Step 4
Repeat Step 1 through Step 3 on the other side of the chassis. Use the black screws to secure the rack-mount brackets to
the chassis.
Step 5
Install the chassis in a rack. To install the Cisco ASR 1002-F Router in a rack, go to the Installing the Cisco ASR 1002-F
Router in a Rack.
What to Do Next
This completes the steps for attaching the front rack-mount brackets to the Cisco ASR 1002-F Router.
Chassis Rear Rack-Mount Brackets
If you are rack-mounting the chassis using the rear rack-mount brackets, then this type of installation provides
for the chassis being recessed in the rack.
To install the rear rack-mount brackets on the Cisco ASR 1002-F Router, perform the following steps:
Cisco ASR 1000 Series Router Hardware Installation Guide
294
Cisco ASR 1002-F Router Overview and Installation
Chassis Rear Rack-Mount Brackets

Cisco ASR 1004 Specifications

General

Product Type	Router
Form Factor	Rack-mountable
Rack Height	2U
Forwarding Capacity	Up to 20 Gbps
Total Number of Ports	Varies by configuration
Number of Total Expansion Slots	4
Product Series	ASR 1000
Model	ASR 1004
Forwarding Performance	Up to 20 Gbps
Operating System	Cisco IOS XE
Power Supply	Dual
Route Processor	ASR 1000 Series Route Processor
Network Interface Modules	SFP, SFP+, Gigabit Ethernet, 10 Gigabit Ethernet
Interfaces/Ports	Varies by configuration
Expansion Slot Type	SPA
Throughput	20 Gbps
Redundancy	Power supply, Route Processor
Interfaces	Gigabit Ethernet, 10 Gigabit Ethernet, SFP, SFP+
Storage	Up to 64 GB Flash
