Cisco ASR 1004 AC Power Supply LEDs and Connector
The following figure shows the AC power supplies at the rear of the Cisco ASR 1004 Router.The Cisco ASR
1004 Router supports up to two power supplies.

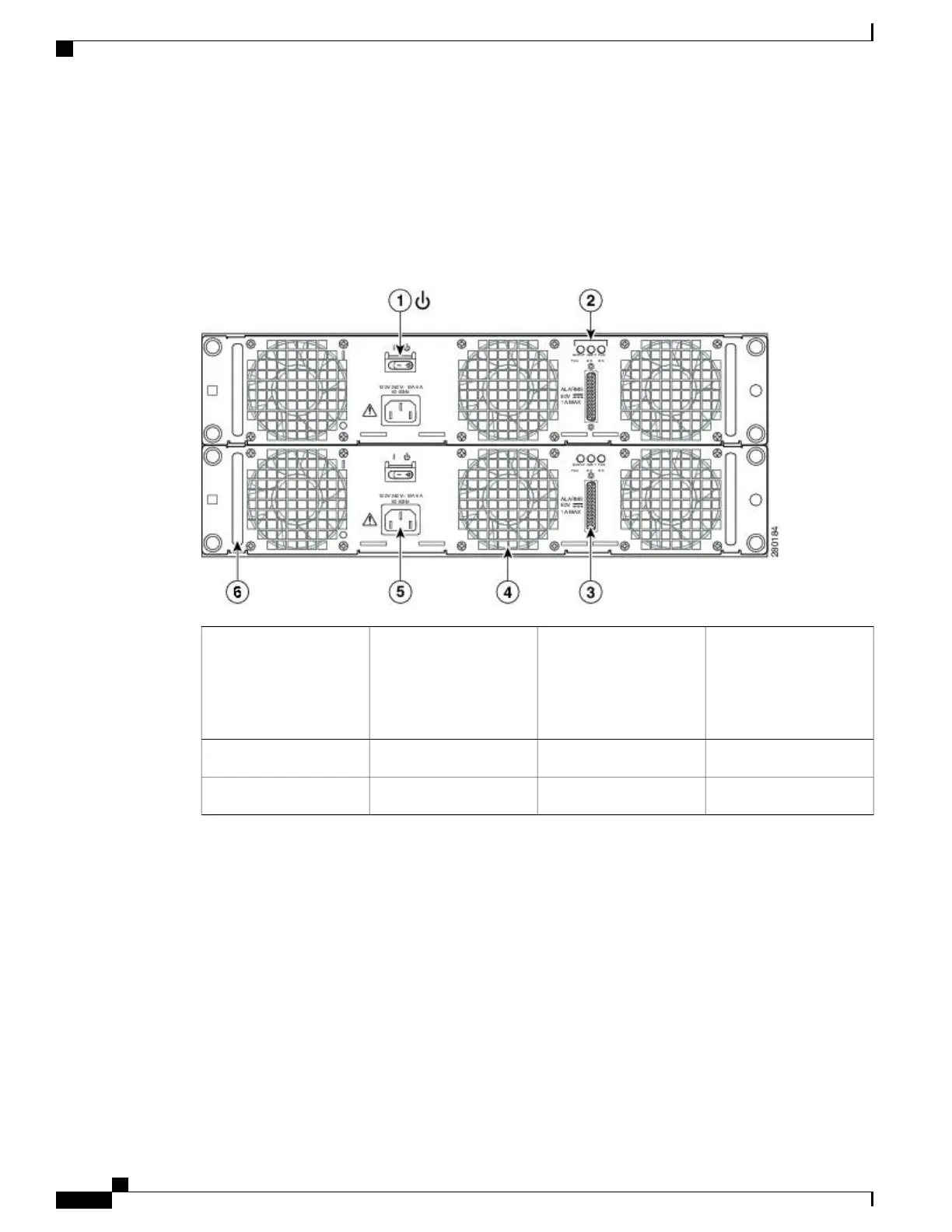

Figure 13: Cisco ASR 1004 Router AC Power Supply
AC power supply fan4AC power supply standby
switch (standby symbol
is a broken circle with a
vertical line through the
top of it)
1
AC power inlet5AC power supply LEDs2
AC power supply handle6DB-25 alarm connector3
Cisco ASR 1000 Series Router Hardware Installation Guide
60
Cisco ASR 1000 Series Routers Component Overview
Cisco ASR 1004 AC Power Supply LEDs and Connector

Cisco ASR 1004 Specifications

General

Product Type	Router
Form Factor	Rack-mountable
Rack Height	2U
Forwarding Capacity	Up to 20 Gbps
Total Number of Ports	Varies by configuration
Number of Total Expansion Slots	4
Product Series	ASR 1000
Model	ASR 1004
Forwarding Performance	Up to 20 Gbps
Operating System	Cisco IOS XE
Power Supply	Dual
Route Processor	ASR 1000 Series Route Processor
Network Interface Modules	SFP, SFP+, Gigabit Ethernet, 10 Gigabit Ethernet
Interfaces/Ports	Varies by configuration
Expansion Slot Type	SPA
Throughput	20 Gbps
Redundancy	Power supply, Route Processor
Interfaces	Gigabit Ethernet, 10 Gigabit Ethernet, SFP, SFP+
Storage	Up to 64 GB Flash
