Cisco ASR 1004 Hardware Installation Guide

The following figure shows the AC power supply LEDs and DB -25 alarm connector.

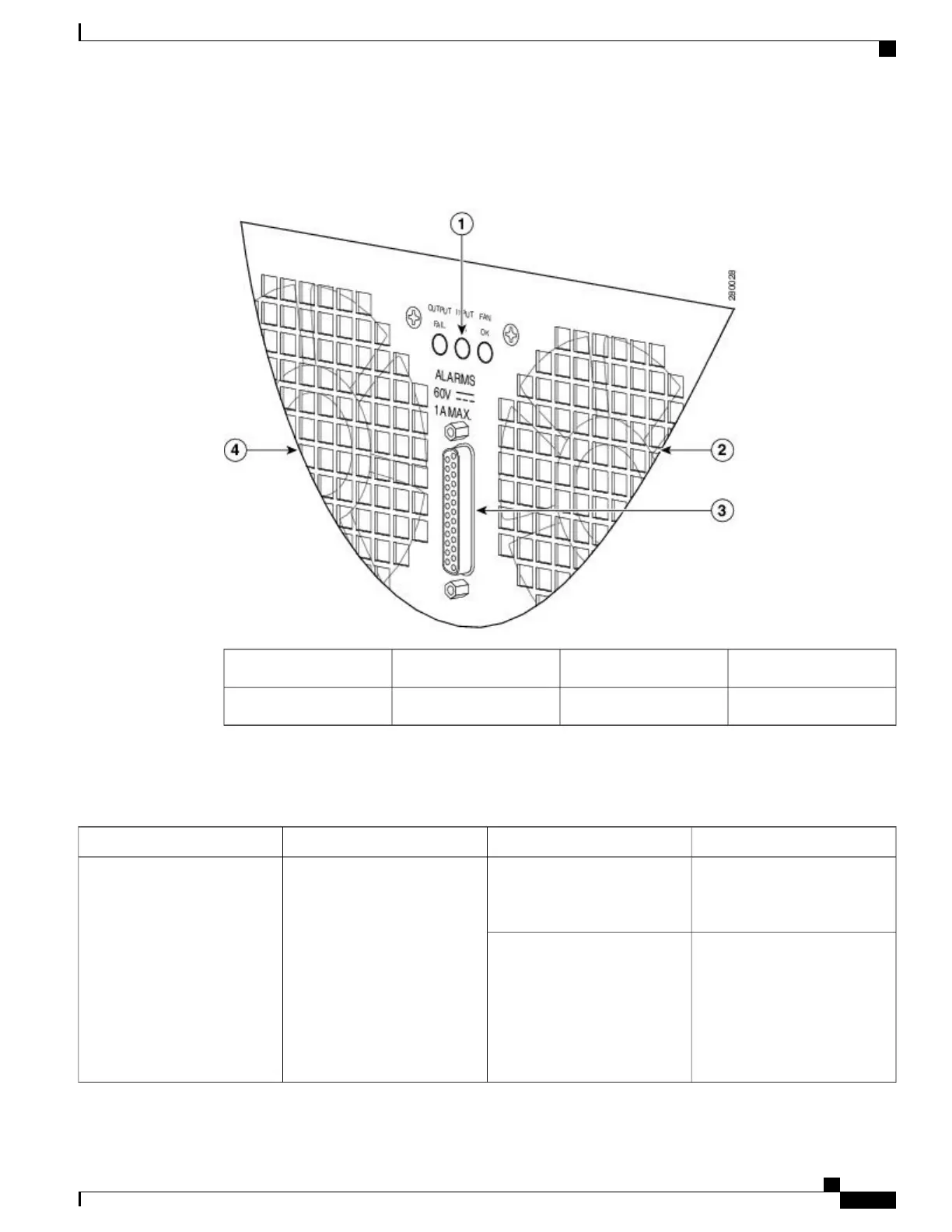

Figure 14: Cisco ASR 1004 Router AC Power Supply LEDs and DB -25 Alarm Connector
DB-25 alarm connector3AC power supply LEDs1
AC power supply fan4Power supply fan2
The following table describes the power supply LEDs and connectors on the rear of the chassis.
Table 20: Cisco ASR 1004 Router AC Power Supply LEDs and Connector
DescriptionColorLEDLED Label
LED illuminates green to signal
that the AC power supply input
voltage is greater than 85 V.
GreenPower supply activityINPUT OK
If LED is not illuminated, then
the AC input voltage is less than
70 V or the power supply is
turned off. For an AC input
voltage between 70 V and 85V,
the INPUT OK LED can be
either on, off, or flashing
None
Cisco ASR 1000 Series Router Hardware Installation Guide
61
Cisco ASR 1000 Series Routers Component Overview
Cisco ASR 1004 AC Power Supply LEDs and Connector

Cisco ASR 1004 Specifications

General

Product Type	Router
Form Factor	Rack-mountable
Rack Height	2U
Forwarding Capacity	Up to 20 Gbps
Total Number of Ports	Varies by configuration
Number of Total Expansion Slots	4
Product Series	ASR 1000
Model	ASR 1004
Forwarding Performance	Up to 20 Gbps
Operating System	Cisco IOS XE
Power Supply	Dual
Route Processor	ASR 1000 Series Route Processor
Network Interface Modules	SFP, SFP+, Gigabit Ethernet, 10 Gigabit Ethernet
Interfaces/Ports	Varies by configuration
Expansion Slot Type	SPA
Throughput	20 Gbps
Redundancy	Power supply, Route Processor
Interfaces	Gigabit Ethernet, 10 Gigabit Ethernet, SFP, SFP+
Storage	Up to 64 GB Flash
