Equipment Shelf or Tabletop Installation
At least two people are required to lift the chassis onto a tabletop or platform. To prevent injury, keep your
back straight and lift with your legs, not your back. Statement 164

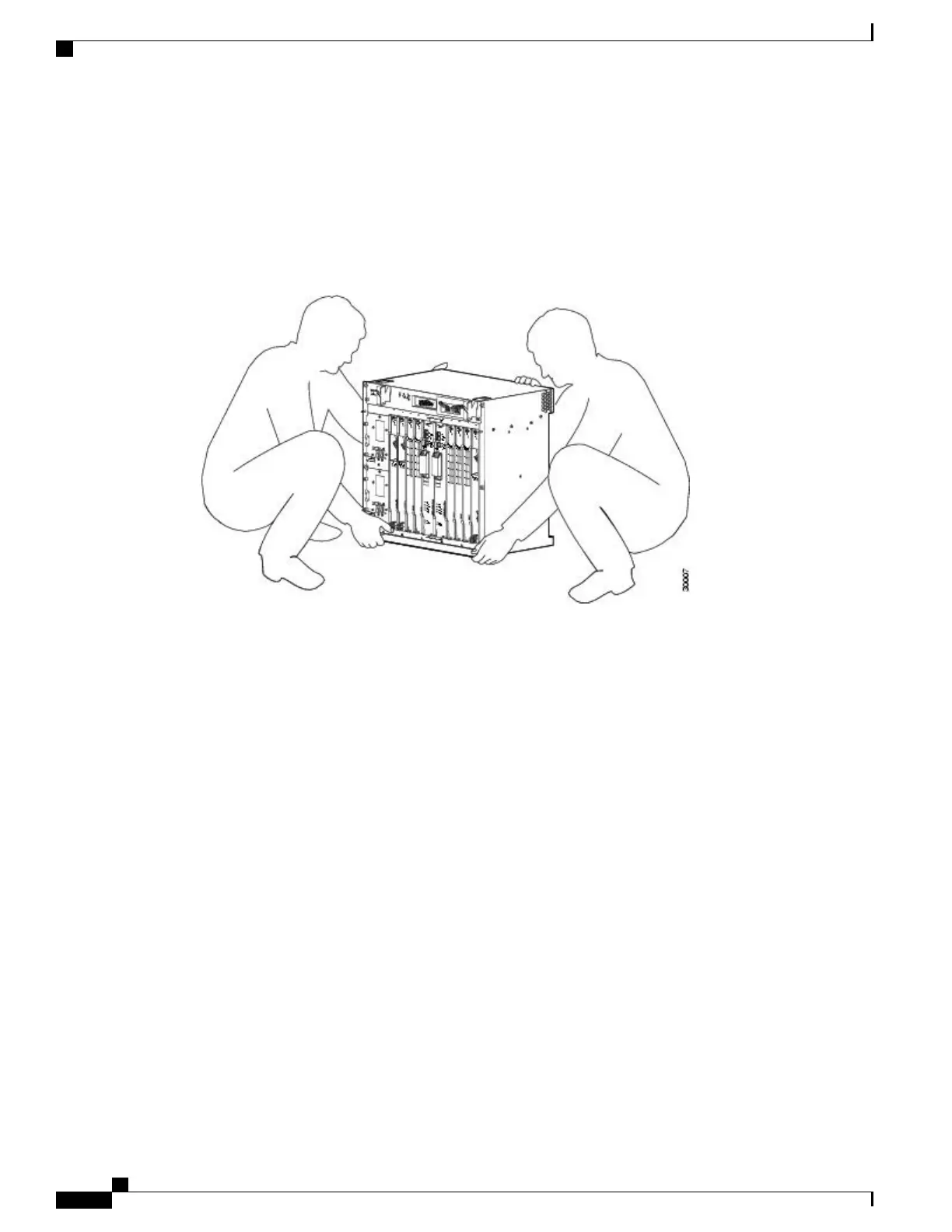

Figure 38: Lifting the Chassis
The chassis in the image does not represent the Cisco ASR 1000 Series Router. This is only an example of
how to lift a Cisco chassis.
SUMMARY STEPS
1.
Attach the front rack-mount brackets. Locate the threaded holes in the front sides of the chassis (first holes
beyond the vent holes) and use the package of black screws that shipped with the chassis.
2.
Align the front rack-mount bracket to one side of the chassis.
3.
Insert and tighten the screws on one side.
4.
Repeat Step 2 through Step 3 on the other side of the chassis. Use at least 4 screws to secure the rack-mount
brackets to the chassis.
5.
Gather the two cable-management brackets and screws shipped with the chassis. The following image
shows the cable-management brackets attached on the front of the Cisco ASR 1006 Router when the
chassis is placed on a table top or equipment shelf.
6.
Screw the cable-management bracket to each side of the rack-mount brackets already attached to the
chassis. For each cable-management bracket, use two screws from the package of four screws.
7.
Ensure that all the screws are securely tightened.
8.
Go to the Attaching a Chassis Ground Connection, on page 161 for instructions about completing the
installation.
Cisco ASR 1000 Series Router Hardware Installation Guide
146
Cisco ASR 1006 Router Overview and Installation
Equipment Shelf or Tabletop Installation
