Cisco ASR 1004 Hardware Installation Guide

DETAILED STEPS
Step 1
Attach the front rack-mount brackets. Locate the threaded holes in the front sides of the chassis (first holes beyond the
vent holes) and use the package of black screws that shipped with the chassis.
Step 2
Align the front rack-mount bracket to one side of the chassis.
Step 3
Insert and tighten the screws on one side.
Step 4
Repeat Step 2 through Step 3 on the other side of the chassis. Use at least 4 screws to secure the rack-mount brackets to
the chassis.
The cable-management brackets are installed on the chassis after you install the chassis rack-mount brackets.Note
Step 5
Gather the two cable-management brackets and screws shipped with the chassis. The following image shows the
cable-management brackets attached on the front of the Cisco ASR 1006 Router when the chassis is placed on a table
top or equipment shelf.
Make certain that the cable-management ‘U’ feature device has the open end pointing upwards when you attach
it to the chassis.
Note

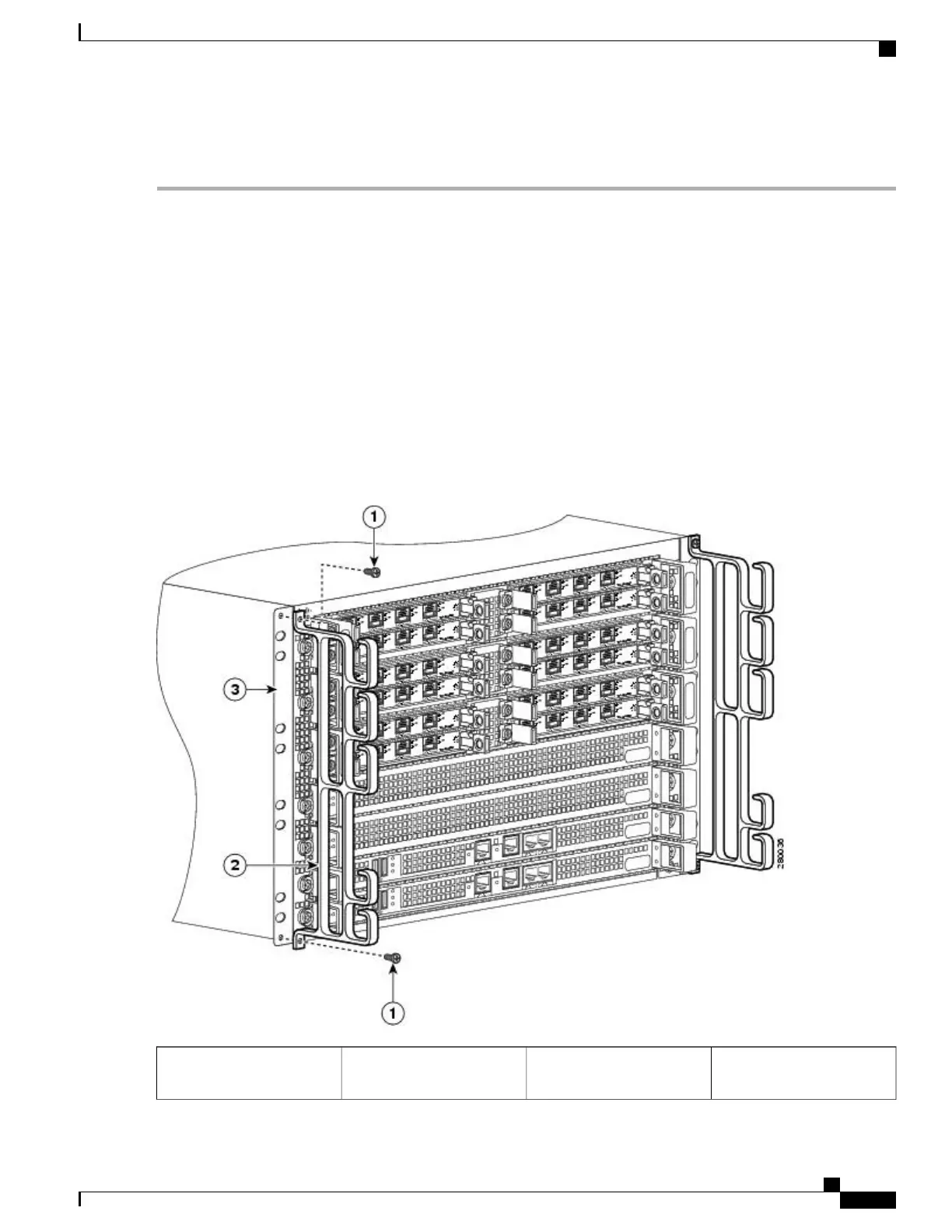

Figure 39: Attaching the Cable-Management Brackets to the Cisco ASR 1006 Router
Chassis front rack-mount
bracket
3Cable-management screws1
Cisco ASR 1000 Series Router Hardware Installation Guide
147
Cisco ASR 1006 Router Overview and Installation
Equipment Shelf or Tabletop Installation

Cisco ASR 1004 Specifications

General

Product Type	Router
Form Factor	Rack-mountable
Rack Height	2U
Forwarding Capacity	Up to 20 Gbps
Total Number of Ports	Varies by configuration
Number of Total Expansion Slots	4
Product Series	ASR 1000
Model	ASR 1004
Forwarding Performance	Up to 20 Gbps
Operating System	Cisco IOS XE
Power Supply	Dual
Route Processor	ASR 1000 Series Route Processor
Network Interface Modules	SFP, SFP+, Gigabit Ethernet, 10 Gigabit Ethernet
Interfaces/Ports	Varies by configuration
Expansion Slot Type	SPA
Throughput	20 Gbps
Redundancy	Power supply, Route Processor
Interfaces	Gigabit Ethernet, 10 Gigabit Ethernet, SFP, SFP+
Storage	Up to 64 GB Flash
