Cisco ASR 1004 Hardware Installation Guide

SPA subslot 13Embedded ASR 1000
Series Route Processor in
the subslot and represents
the built in 4xGE SPA.
1
SPA subslot 34SPA subslot 22
The SPAs in subslots 1-3 are field upgradeable. The SIP that the SPAs reside in is not field-upgradeable
and the Cisco ASR 1000 Series Route Processor is embedded in the chassis and not field upgradeable.
Note
Rear View

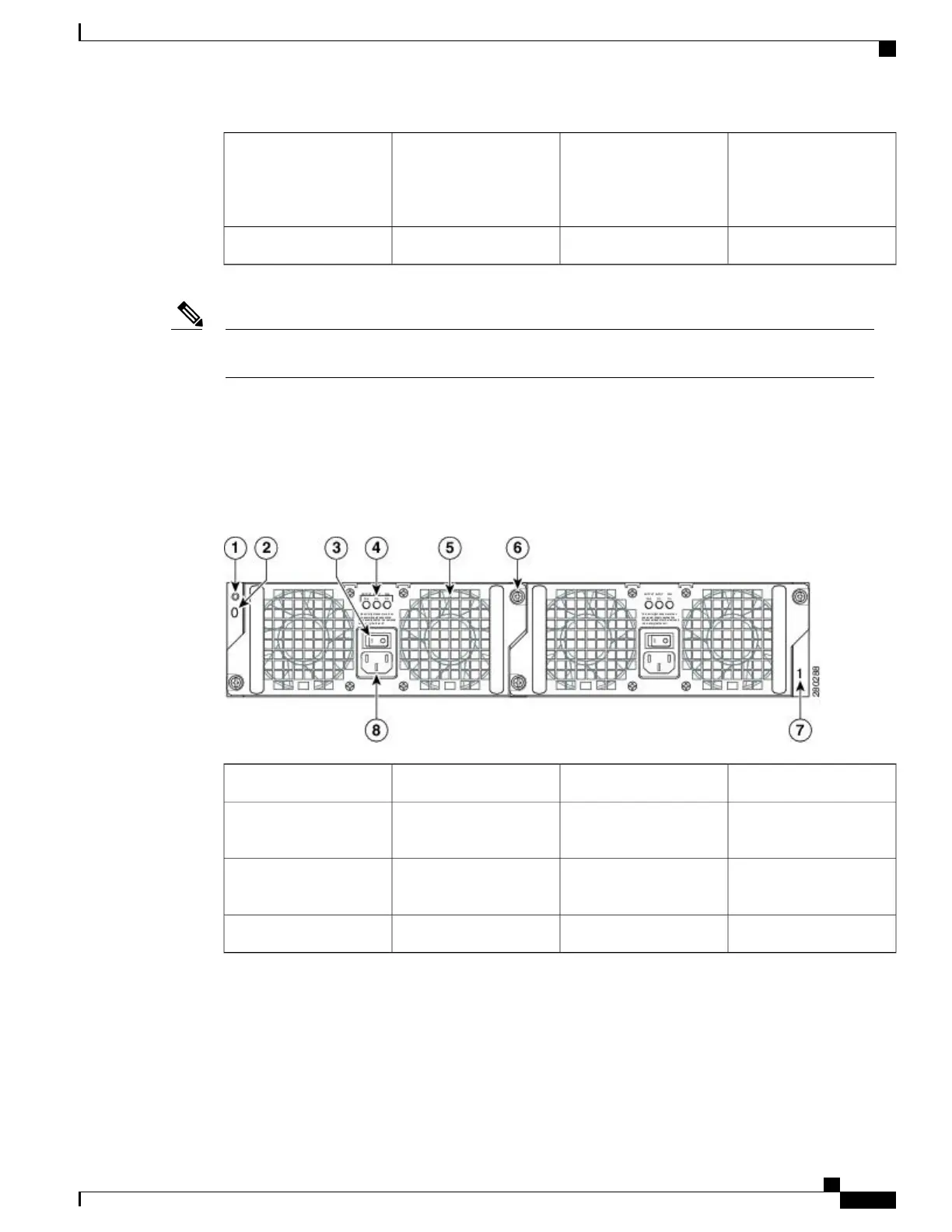

Cisco ASR 1002 router AC power supply image shows the Cisco ASR 1002 Router AC power supply.
Figure 80: Cisco ASR 1002 Router AC Power Supply
AC power supply fan5Chassis ESD socket1
AC power supply captive
installation screw
6AC power supply slot
number 0
2
AC power supply slot
number 1
7AC power supply On (|)
/Off (O) switch
3
AC power inlet8AC power supply LEDs4
Cisco ASR 1000 Series Router Hardware Installation Guide
221
Cisco ASR 1002 Router Overview and Installation
Rear View

Cisco ASR 1004 Specifications

General

Product Type	Router
Form Factor	Rack-mountable
Rack Height	2U
Forwarding Capacity	Up to 20 Gbps
Total Number of Ports	Varies by configuration
Number of Total Expansion Slots	4
Product Series	ASR 1000
Model	ASR 1004
Forwarding Performance	Up to 20 Gbps
Operating System	Cisco IOS XE
Power Supply	Dual
Route Processor	ASR 1000 Series Route Processor
Network Interface Modules	SFP, SFP+, Gigabit Ethernet, 10 Gigabit Ethernet
Interfaces/Ports	Varies by configuration
Expansion Slot Type	SPA
Throughput	20 Gbps
Redundancy	Power supply, Route Processor
Interfaces	Gigabit Ethernet, 10 Gigabit Ethernet, SFP, SFP+
Storage	Up to 64 GB Flash
