Cisco ASR 1004 Hardware Installation Guide

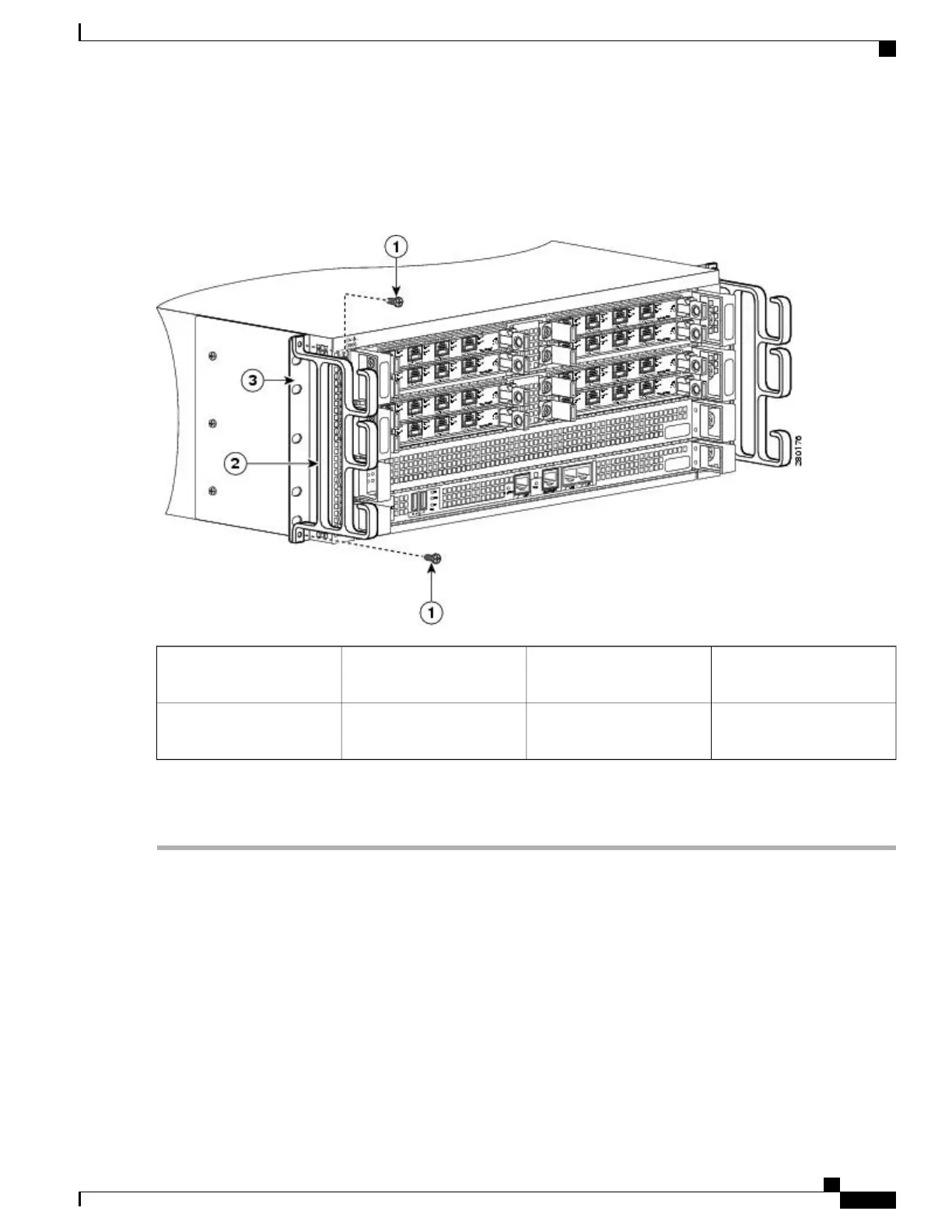

The following image shows where to attach the cable-management brackets to the Cisco ASR 1004 Router in a rack.
Figure 71: Chassis Rack-Mount Bracket Ear Holes for the Cable-Management Bracket
Chassis rack-mount bracket3Cable-management bracket
top and bottom screw
1
——
Cable-management bracket
and U feature device
2
Step 3
Using the bottom rack-mount ear hole, insert the screw through cable-management bracket and into the chassis rack-mount
(see Figure 71: Chassis Rack-Mount Bracket Ear Holes for the Cable-Management Bracket, on page 205).
What to Do Next
This completes the procedure for installing the cable-management brackets on the chassis in a rack.
Connecting the Shared Port Adapter Cables
The instructions for connecting the cables for the shared port adapter installed in the Cisco ASR 1004 Router
are contained in the respective configuration documents for each port adapter. For example, if you are
connecting the optical fiber cables for the PA-POS-OC3 port adapter, see PA-POS-OC3 Port Adapter
Installation and Configuration at the following location:
Cisco ASR 1000 Series Router Hardware Installation Guide
205
Cisco ASR 1004 Router Overview and Installation
Connecting the Shared Port Adapter Cables

Cisco ASR 1004 Specifications

General

Product Type	Router
Form Factor	Rack-mountable
Rack Height	2U
Forwarding Capacity	Up to 20 Gbps
Total Number of Ports	Varies by configuration
Number of Total Expansion Slots	4
Product Series	ASR 1000
Model	ASR 1004
Forwarding Performance	Up to 20 Gbps
Operating System	Cisco IOS XE
Power Supply	Dual
Route Processor	ASR 1000 Series Route Processor
Network Interface Modules	SFP, SFP+, Gigabit Ethernet, 10 Gigabit Ethernet
Interfaces/Ports	Varies by configuration
Expansion Slot Type	SPA
Throughput	20 Gbps
Redundancy	Power supply, Route Processor
Interfaces	Gigabit Ethernet, 10 Gigabit Ethernet, SFP, SFP+
Storage	Up to 64 GB Flash
