Cisco ASR 1004 Hardware Installation Guide

Example:
router# copy nvram:startup-config usb0
router# copy bootflash:asr1000rp1-adventerprisek9.02.01.00.122-33.XNA.bin usb0:
Step 2
To remove the Cisco ASR1000-RP and then the eUSB device from the chassis, follow these steps:
a) Attach an ESD-preventive wrist strap between you and an unpainted router surface.
b) If connected, remove any I/O cables from the Cisco ASR1000-RP.
c) Using a number two Phillips or a 3/16-inch flat-blade screwdriver, loosen the two captive screws on the faceplate of
the Cisco ASR1000- RP.
d) Using the handles on both sides of the module, with two hands, gently slide the module out of the chassis slot.
Handle the Cisco ASR1000-RP by the carrier edges only; never touch the printed circuit board components
or connector pins.
Caution
e) Place the Cisco ASR1000-RP module on an antistatic surface with its printed circuit board components facing upward.
f) Locate the eUSB device on the ASR1000 Series RP board. The following figure shows the location of the eUSB
component on the Cisco ASR1000-RP1 and xref figure shows the location of the eUSB component on the Cisco
ASR1000-RP2 route processor.

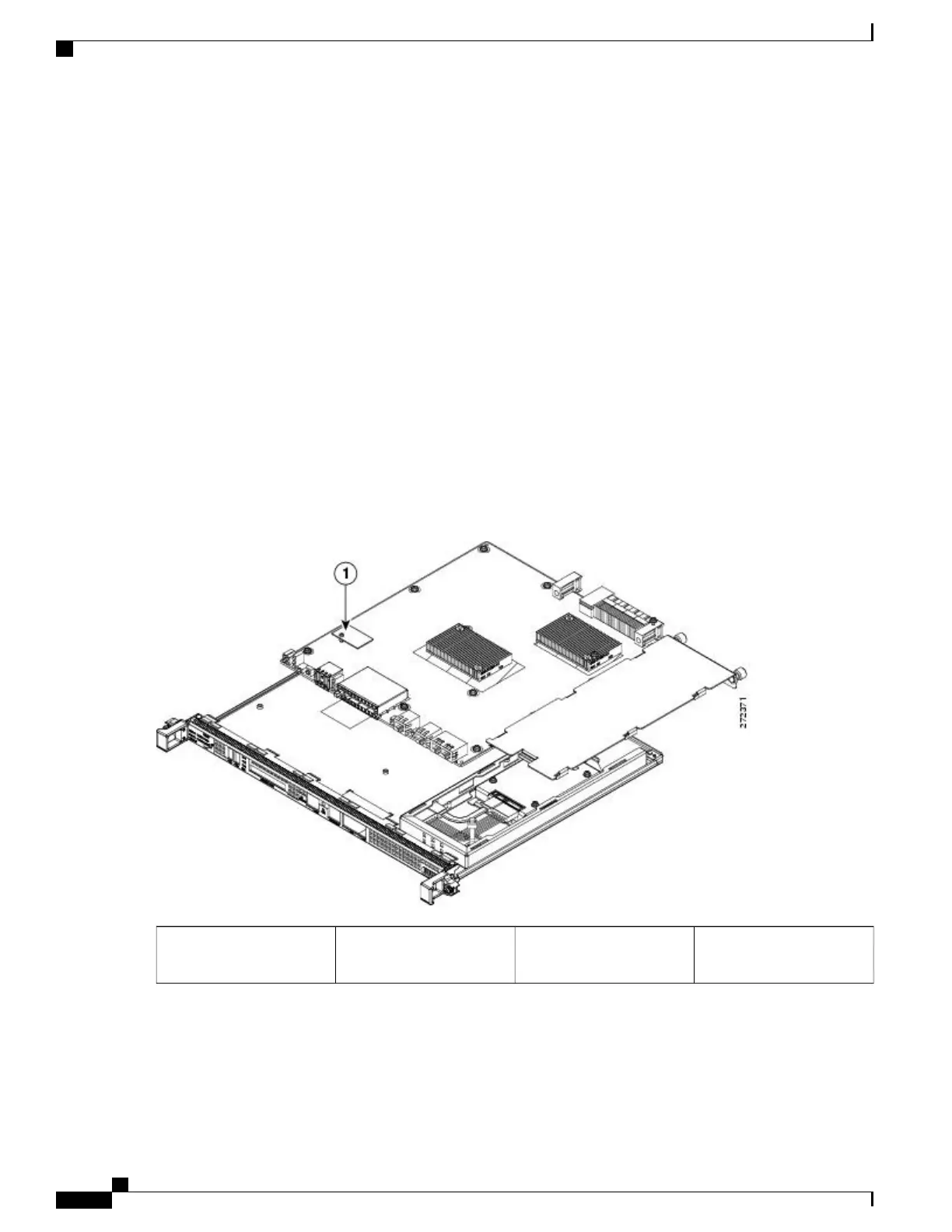

Figure 255: Cisco ASR1000-RP1 eUSB Location
——
Cisco ASR 1000 Series
RP1 eUSB device location
1
Cisco ASR 1000 Series Router Hardware Installation Guide
520
Removing and Replacing FRUs from the Cisco ASR 1000 Series Routers
Remove and Replace the eUSB Device on the Cisco ASR 1006 and Cisco ASR 1004 Routers
