Cisco ASR 1004 Hardware Installation Guide

——
Slot 1 connected to the
half-height SPA slot
2
Cisco ASR 1002-X Router
In the Cisco ASR 1002-X Router, the integrated SIP supports:
•
Three removable half-height SPAs in Bays 1, 2, and 3
•
A built-in 6xGE SPA
The SPAs on the Cisco ASR1002-X support online insertion and removal. However, the SIP on the Cisco
ASR 1002-X Router is built into the chassis and is not a field-replaceable unit.
Note

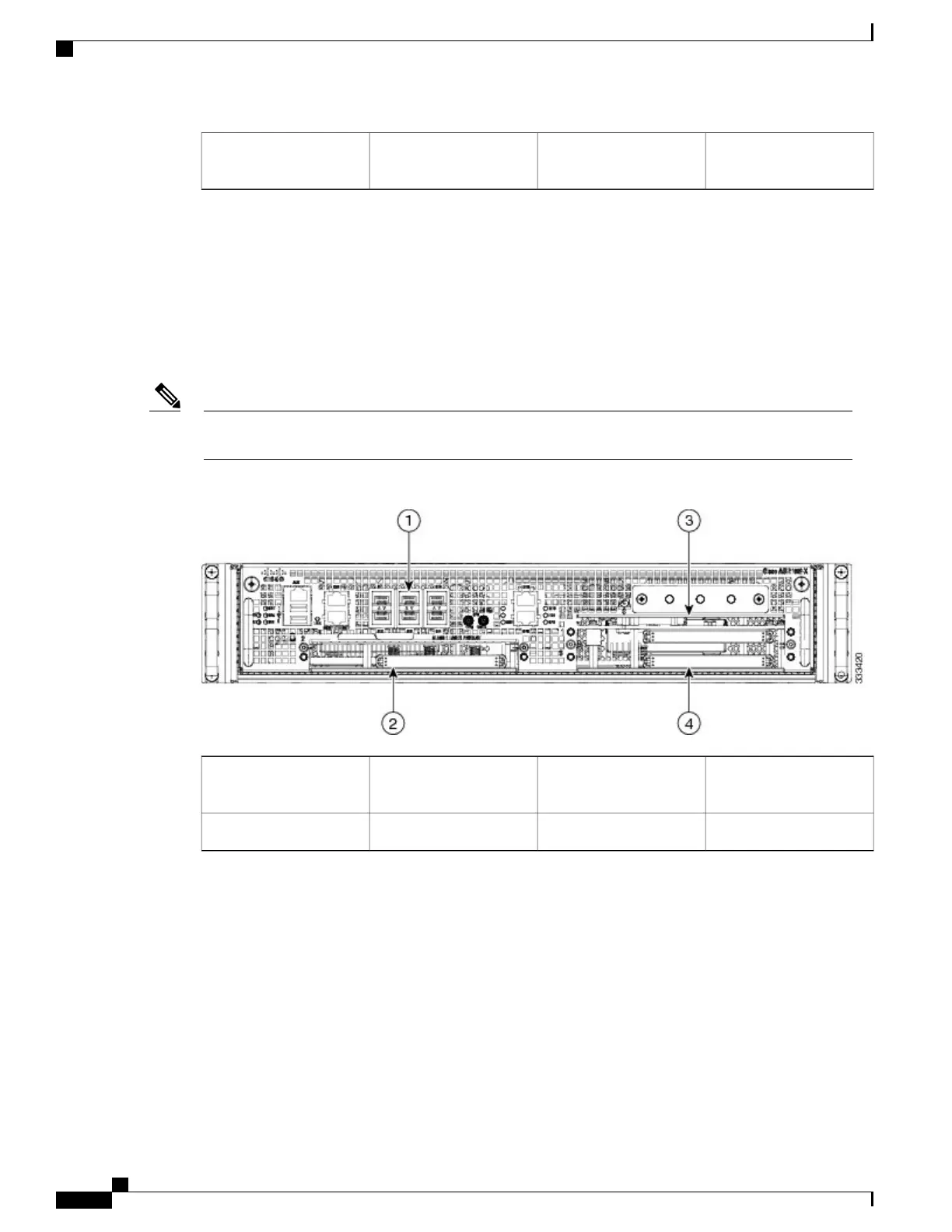

Figure 4-8 shows the slot numbering for the Cisco ASR 1002-X Router.
Cisco SPA subslot 136xGE Built-in SPA in
Subslot 0
1
Cisco SPA subslot 34Cisco SPA subslot 22
Cisco ASR 1000 Series Router Hardware Installation Guide
110
Cisco ASR 1000 Series Router SPA Interface Processors (SIPs)
Cisco ASR 1002-X Router

Cisco ASR 1004 Specifications

General

Product Type	Router
Form Factor	Rack-mountable
Rack Height	2U
Forwarding Capacity	Up to 20 Gbps
Total Number of Ports	Varies by configuration
Number of Total Expansion Slots	4
Product Series	ASR 1000
Model	ASR 1004
Forwarding Performance	Up to 20 Gbps
Operating System	Cisco IOS XE
Power Supply	Dual
Route Processor	ASR 1000 Series Route Processor
Network Interface Modules	SFP, SFP+, Gigabit Ethernet, 10 Gigabit Ethernet
Interfaces/Ports	Varies by configuration
Expansion Slot Type	SPA
Throughput	20 Gbps
Redundancy	Power supply, Route Processor
Interfaces	Gigabit Ethernet, 10 Gigabit Ethernet, SFP, SFP+
Storage	Up to 64 GB Flash
