Cisco ASR 1004 Hardware Installation Guide

The space must be at least 17.7 inches (45 cm) to accommodate the chassis which is 17.25 inches (43.8 cm) wide and
fits between the mounting posts on the rack.

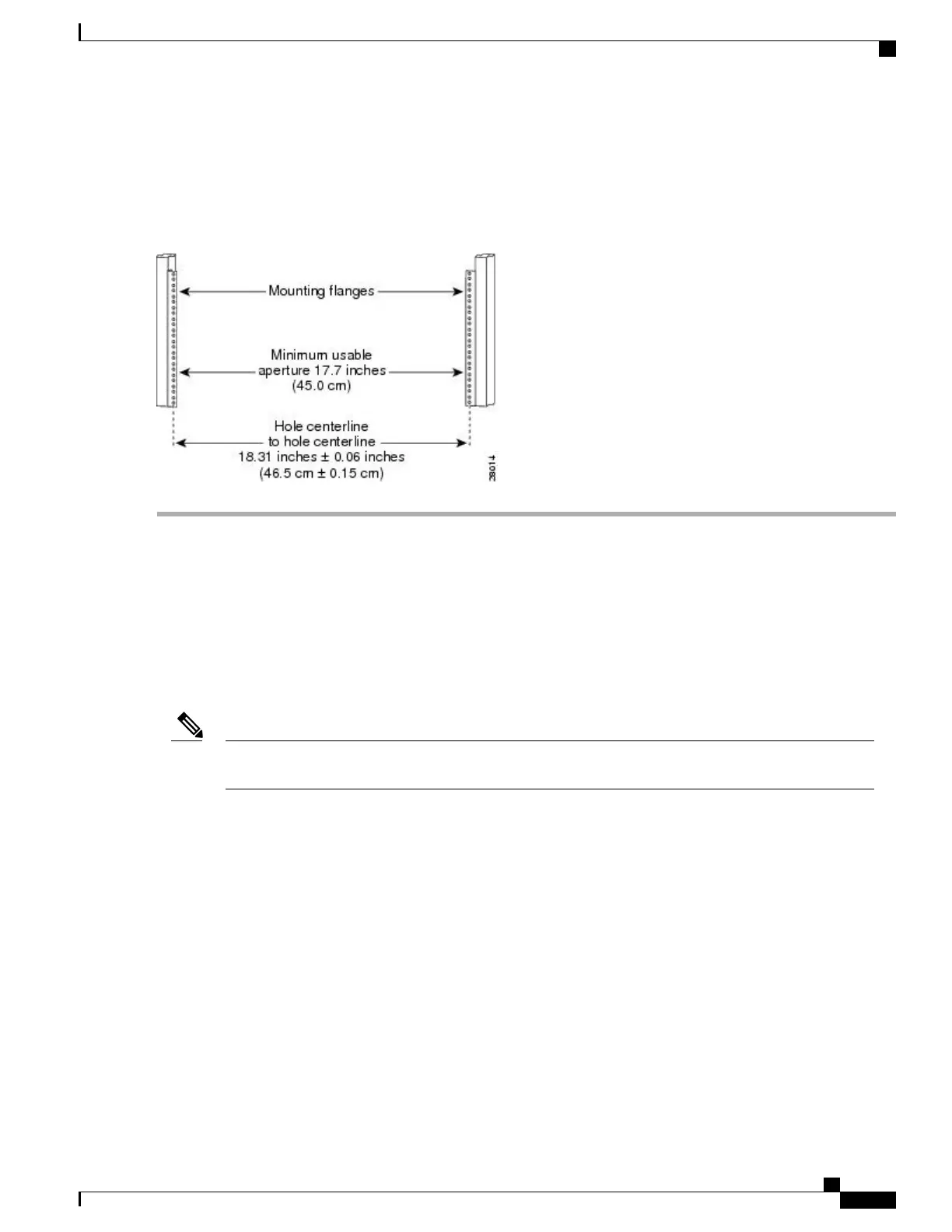

Figure 40: Verifying Equipment Rack Dimensions
Attaching the Chassis Rack-Mount Brackets
This section explains how to attach the front and rear rack-mount brackets to the chassis. Before installing
the chassis in the rack, you must install the rack-mount brackets on each side of the chassis.
The parts and tools required for installing the rack-mount brackets and cable-management brackets are listed
in the “Tools and Equipment” section on page 5-23 .
The cable-management brackets are installed on the chassis after you install the chassis rack-mount brackets
and mount the chassis in the rack.
Note
Chassis Front Rack-Mount Brackets
Determine where in the rack you want the chassis to be mounted. If you are mounting more than one chassis
in the rack, then start from the bottom up or the center of the rack. The following image shows the brackets
attached to the chassis. Depending on the bracket holes you use, the chassis may protrude in the rack.
To install the front rack-mount brackets on the Cisco ASR 1006 Router, perform the following steps:
Cisco ASR 1000 Series Router Hardware Installation Guide
149
Cisco ASR 1006 Router Overview and Installation
Attaching the Chassis Rack-Mount Brackets

Cisco ASR 1004 Specifications

General

Product Type	Router
Form Factor	Rack-mountable
Rack Height	2U
Forwarding Capacity	Up to 20 Gbps
Total Number of Ports	Varies by configuration
Number of Total Expansion Slots	4
Product Series	ASR 1000
Model	ASR 1004
Forwarding Performance	Up to 20 Gbps
Operating System	Cisco IOS XE
Power Supply	Dual
Route Processor	ASR 1000 Series Route Processor
Network Interface Modules	SFP, SFP+, Gigabit Ethernet, 10 Gigabit Ethernet
Interfaces/Ports	Varies by configuration
Expansion Slot Type	SPA
Throughput	20 Gbps
Redundancy	Power supply, Route Processor
Interfaces	Gigabit Ethernet, 10 Gigabit Ethernet, SFP, SFP+
Storage	Up to 64 GB Flash
