The folowing image shows the Cisco ASR 1002-F Router on a two-post rack.

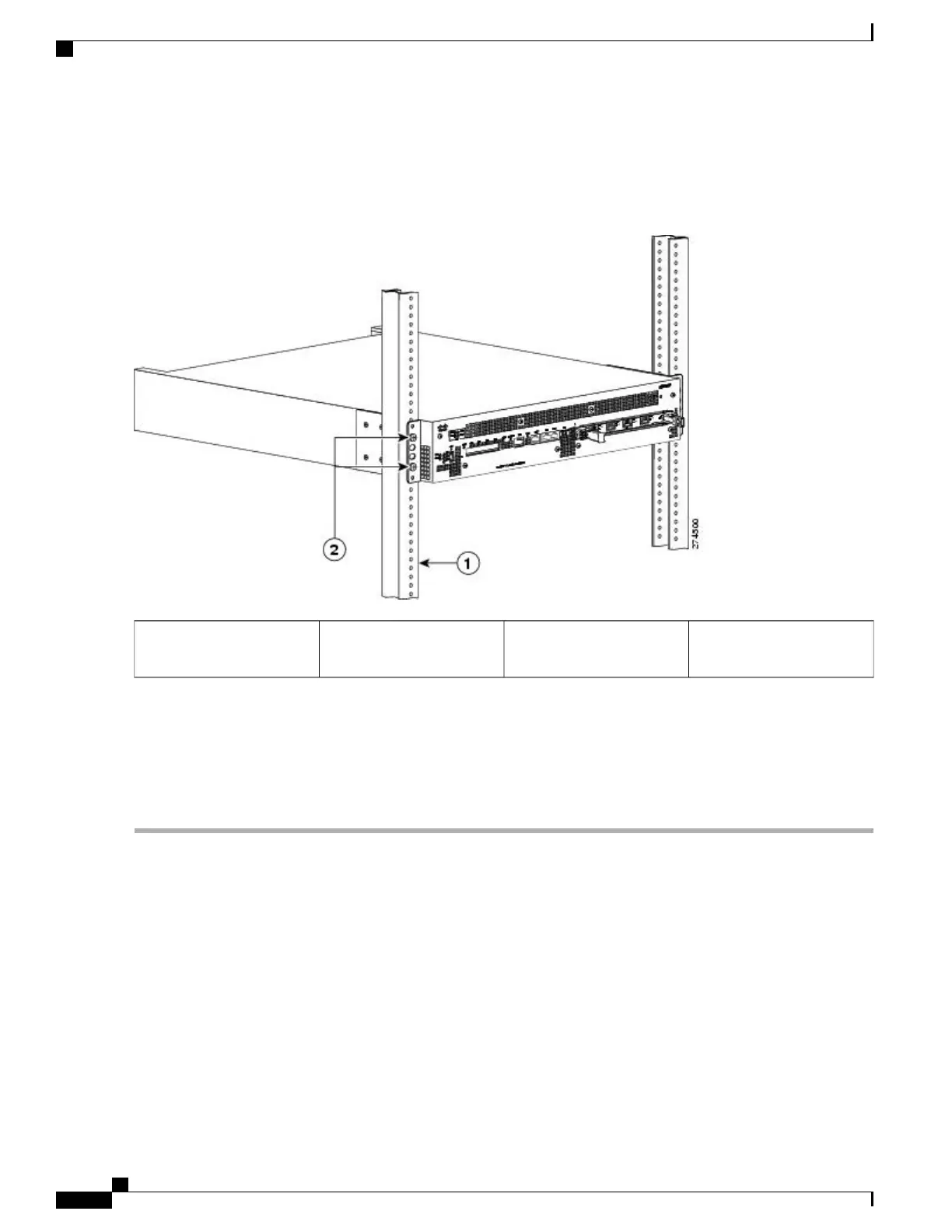

Figure 129: Installing the Cisco ASR 1002-F Router on a Two-Post Equipment Rack
Front rack-mount bracket ear
and holes
2Rack equipment rail1
Step 2
Slide the chassis into the rack, pushing it back until the brackets meet the mounting strips or posts on both sides of the
rack.
Step 3
Keeping the brackets flush against the posts or mounting strips, align the holes in the brackets with the holes on the rack
or mounting strip.
Step 4
For each bracket, insert and tighten two screws to the rack on both sides.
What to Do Next
This completes the procedure for installing the chassis on a two-post rack. Proceed to the Attaching a Chassis
Ground Connection. to continue the installation.
Four-Post Rack Installation
The Cisco ASR 1002-F Router can be flush-mounted in a 19-inch equipment rack using the rack-mounting
kit provided with your system. When handling the chassis, always follow proper lifting practices. See the
“Chassis-Lifting Guidelines” section.
Cisco ASR 1000 Series Router Hardware Installation Guide
298
Cisco ASR 1002-F Router Overview and Installation
Four-Post Rack Installation

Cisco ASR 1004 Specifications

General

Product Type	Router
Form Factor	Rack-mountable
Rack Height	2U
Forwarding Capacity	Up to 20 Gbps
Total Number of Ports	Varies by configuration
Number of Total Expansion Slots	4
Product Series	ASR 1000
Model	ASR 1004
Forwarding Performance	Up to 20 Gbps
Operating System	Cisco IOS XE
Power Supply	Dual
Route Processor	ASR 1000 Series Route Processor
Network Interface Modules	SFP, SFP+, Gigabit Ethernet, 10 Gigabit Ethernet
Interfaces/Ports	Varies by configuration
Expansion Slot Type	SPA
Throughput	20 Gbps
Redundancy	Power supply, Route Processor
Interfaces	Gigabit Ethernet, 10 Gigabit Ethernet, SFP, SFP+
Storage	Up to 64 GB Flash
