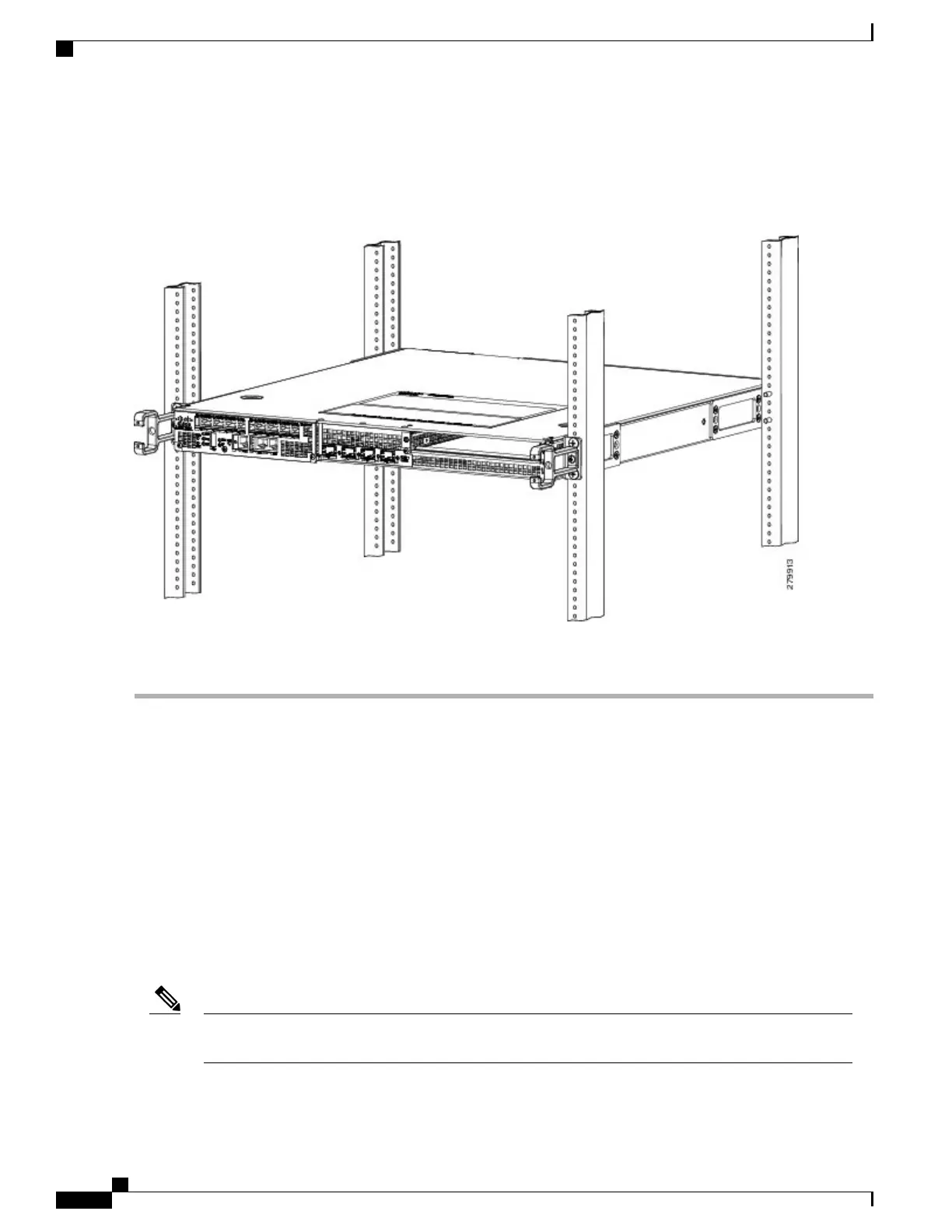

The following image shows front and rear rack-mounting of the Cisco ASR 1001 Router on a four-post rack.
Figure 211: Cisco ASR 1001 Router in a Four Post Rack — Front and Rear Rack-Mounting
Step 6
Use a level to verify that the tops of the two brackets are level, or use a measuring tape to verify that both brackets are
the same distance from the top of the rack rails.
What to Do Next
This completes the procedure for installing the chassis in the rack. Proceed to the Attaching the
Cable-Management Bracket, on page 436 to continue the installation.
Attaching the Cable-Management Bracket
The cable-management brackets mount to each rack-mount bracket on the chassis to provide cable-management
to both sides of the chassis (parallel with card orientation). These brackets are screw mounted to the rack-mount
brackets to allow easy installation and removal of cables.
The cable-management brackets for the Cisco ASR 1001 Router contain one independent cable-management
“U” type features with four screws and provides cable dressing of each card module slot.
Make certain that the cable-management bracket “U” type feature is facing upwards when you attach it to
the chassis.
Note
Cisco ASR 1000 Series Router Hardware Installation Guide
436
Cisco ASR 1001 Router Overview and Installation
Attaching the Cable-Management Bracket
