The shared port adapter on the Cisco ASR1002-SIP10-F supports online insertion and removal. However,
the Cisco ASR1002-SIP10-F in the Cisco ASR 1002-F Router is built into the chassis and is not a
field-replaceable unit.
Note

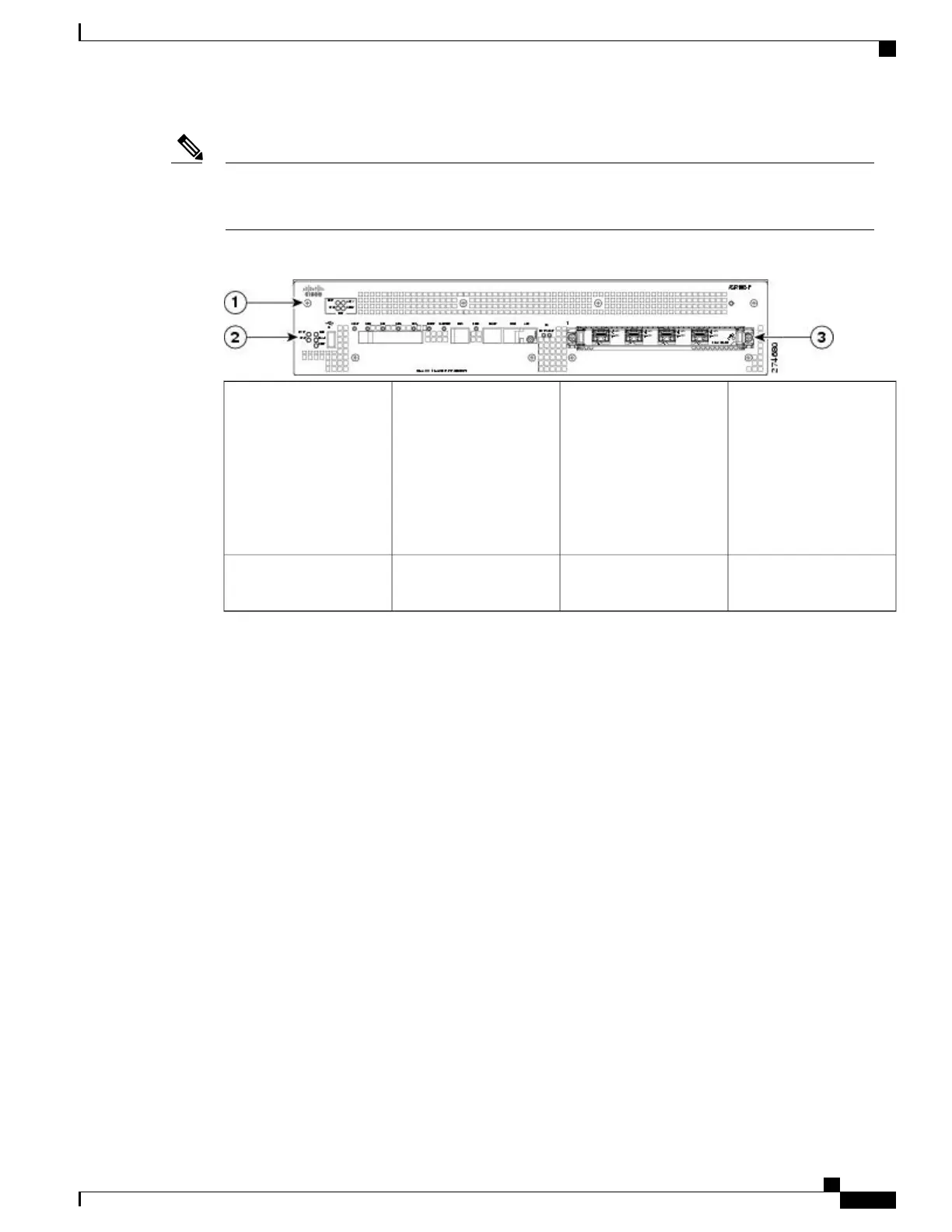

Figure 4-5 shows the slot numbering for the Cisco ASR 1002-F Router.
ASR1002-SIP-10-F, slot
0:
SPAs:
slot 0, subslot 0 -
4xGE-BUILT-IN
slot 0, subslot 1 -
SPA-2XOC3-POS
3Cisco integrated
ASR1002-ESP-F, slot F0
1
Cisco integrated RP, slot
R0
2
Cisco ASR 1013 Router
In the Cisco ASR 1013 Router, the Cisco ASR1000-SIP40 supports:
•
Four half-height (¼ Rate or full rate or combination) SPAs with up to 24 ports per SPA
•
Two full-height (¼ Rate or full rate or combination) SPAs with up to 48 ports per SPA
•
Two half-height and 1 full-height combination that does not exceed 96 ports
The Cisco ASR 1013 Router uses the same SPA subslot numbering as the Cisco ASR 1006 and Cisco ASR
1004 routers.
Cisco ASR 1000 Series Router Hardware Installation Guide
107
Cisco ASR 1000 Series Router SPA Interface Processors (SIPs)
Cisco ASR 1013 Router

Cisco ASR 1004 Specifications

General

Product Type	Router
Form Factor	Rack-mountable
Rack Height	2U
Forwarding Capacity	Up to 20 Gbps
Total Number of Ports	Varies by configuration
Number of Total Expansion Slots	4
Product Series	ASR 1000
Model	ASR 1004
Forwarding Performance	Up to 20 Gbps
Operating System	Cisco IOS XE
Power Supply	Dual
Route Processor	ASR 1000 Series Route Processor
Network Interface Modules	SFP, SFP+, Gigabit Ethernet, 10 Gigabit Ethernet
Interfaces/Ports	Varies by configuration
Expansion Slot Type	SPA
Throughput	20 Gbps
Redundancy	Power supply, Route Processor
Interfaces	Gigabit Ethernet, 10 Gigabit Ethernet, SFP, SFP+
Storage	Up to 64 GB Flash
