Cisco ASR 1004 Hardware Installation Guide

The Cisco ASR 1002 Router supports three half-height SPAs and an optional built-in 4xGE SPA. The Cisco
ASR 1002 Router supports all the general-purpose routing and security features of the Cisco ASR 1000 Series
Routers. It uses the same internal control and data-plane architecture as the other Cisco ASR 1000 Series
Routers.
The Cisco ASR 1002 Router supports:
•
Cisco ASR1000-ESP5 or Cisco ASR1000-ESP10 as a field-replaceable unit (FRU)
•
The Cisco Embedded Route Processor which supports 2MB upgradeable BootROM and 8 GB eUSB
bulk storage.
•
1 + 1 redundant AC or DC power supplies.
•
Stratum-3 network clocking per GR-1244-CORE, with T1/E1 BITS interface or SPAs as timing sources.
•
A built-in 4x1GE SPA providing four small form-factor pluggable (SFP-based) GE connections,
designated as SPA bay 0.
For information about the SFP transceiver modules that are compatible with Cisco ASR 1002 Built-in Gigabit
Ethernet Ports (4x1GE), refer to the “Modular Optics Compatibility” section in Cisco ASR 1000 Series
Aggregation Services Routers SIP and SPA Hardware Installation Guide .
The Cisco ASR 1002 Router supports upgradeable Cisco ASR1000-ESP5 or ASR1000-ESP10 assembly and
the power supply modules as field-replaceable units. The Cisco integrated ASR1000-SIP10 and Cisco built-in
ASR1000-RP1 assemblies are fixed into the chassis and are not upgradeable; but the shared port adapters in
the SIP are field upgradable.
This section contains the following topics:
•
Front View, on page 220
•
Rear View, on page 221
•
Cisco ASR 1002 Router Slot Numbering, on page 222
Front View

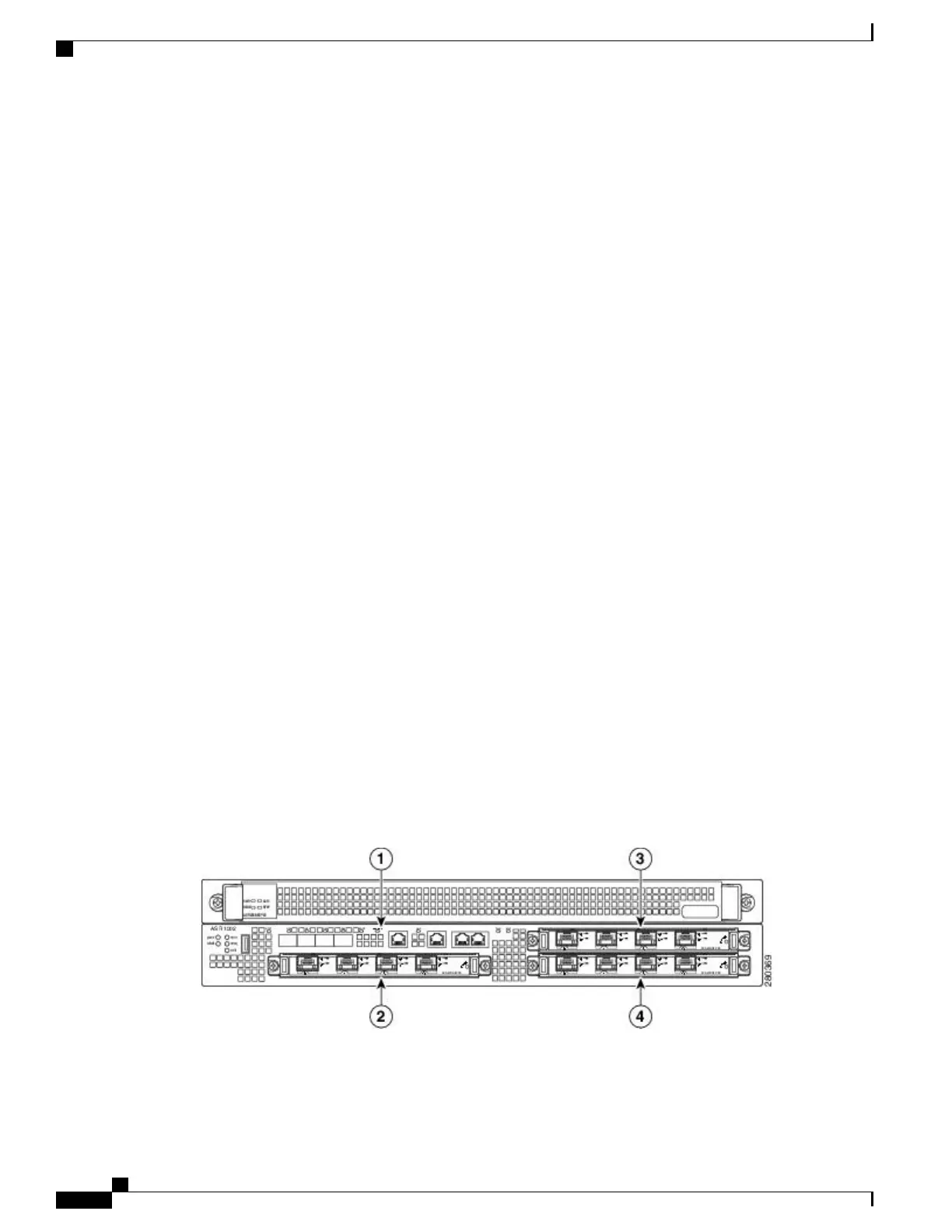

Cisco ASR 1002 router front view shows the Cisco ASR 1002 Router with modules installed.
Figure 79: Cisco ASR 1002 Router — Front View
Cisco ASR 1000 Series Router Hardware Installation Guide
220
Cisco ASR 1002 Router Overview and Installation
Front View

Cisco ASR 1004 Specifications

General

Product Type	Router
Form Factor	Rack-mountable
Rack Height	2U
Forwarding Capacity	Up to 20 Gbps
Total Number of Ports	Varies by configuration
Number of Total Expansion Slots	4
Product Series	ASR 1000
Model	ASR 1004
Forwarding Performance	Up to 20 Gbps
Operating System	Cisco IOS XE
Power Supply	Dual
Route Processor	ASR 1000 Series Route Processor
Network Interface Modules	SFP, SFP+, Gigabit Ethernet, 10 Gigabit Ethernet
Interfaces/Ports	Varies by configuration
Expansion Slot Type	SPA
Throughput	20 Gbps
Redundancy	Power supply, Route Processor
Interfaces	Gigabit Ethernet, 10 Gigabit Ethernet, SFP, SFP+
Storage	Up to 64 GB Flash
