Cisco ASR 1004 Hardware Installation Guide

Figure 4-3 shows the slot numbering for the shared port adapters on the Cisco ASR 1000 Series SPA Interface
for the Cisco ASR 1006 Router and Cisco ASR 1004 Router.

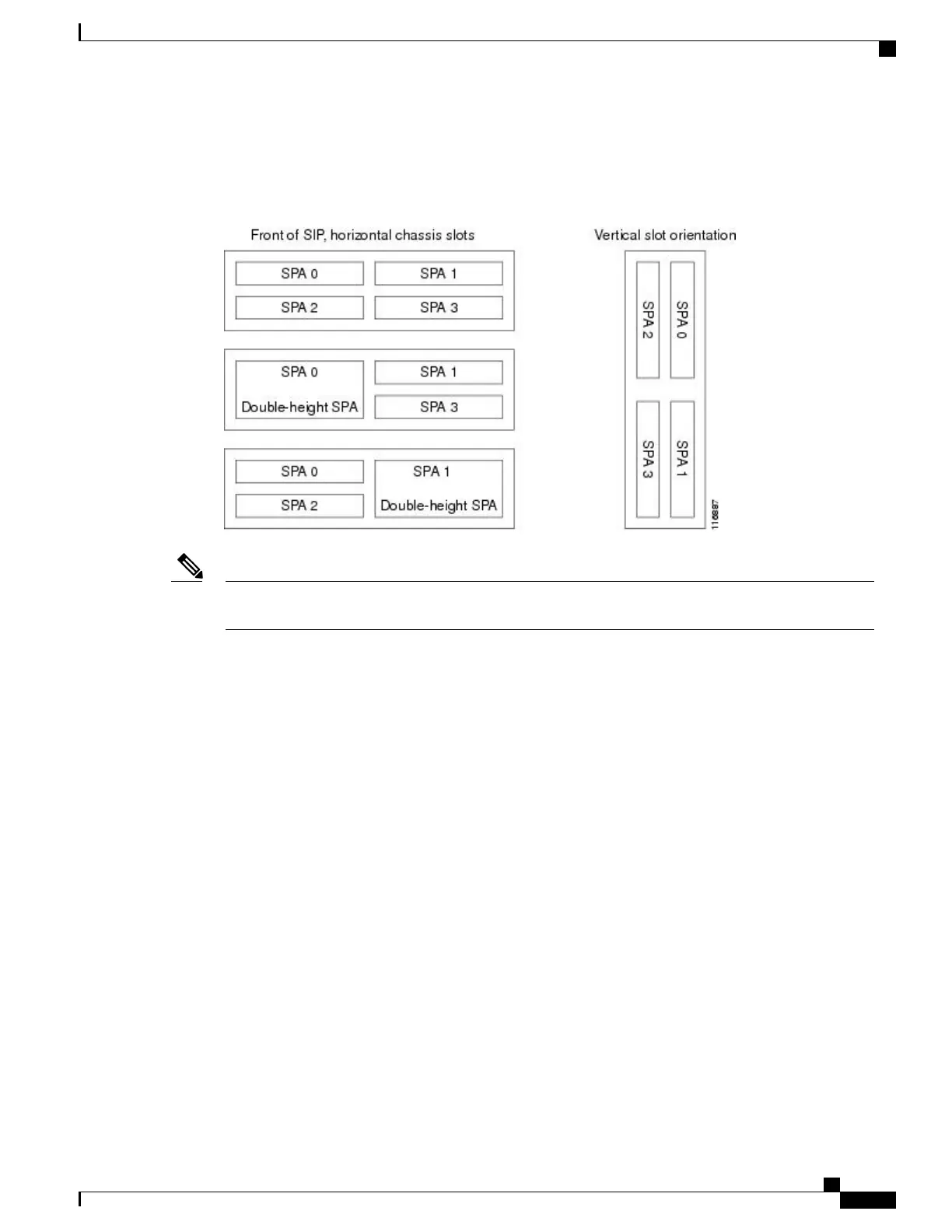

Figure 29: Cisco ASR 1004 Router and Cisco ASR 1006 Router SPA Interface Subslot Numbering
The slot numbering for the SPAs on the Cisco ASR 1004 Router is the same as the numbering on the
Cisco ASR 1006 Router.
Note
Cisco ASR 1002 Router
In the Cisco ASR 1002 Router, the Cisco ASR1002-SIP10 supports:
•
Three removable half-height SPAs on Bay 1, 2, and 3
•
The fourth SPA is a built-in 4xGE SPA on Bay 0 located on the Cisco ASR 1000 Series RP1
Cisco ASR 1000 Series Router Hardware Installation Guide
105
Cisco ASR 1000 Series Router SPA Interface Processors (SIPs)
Cisco ASR 1002 Router

Cisco ASR 1004 Specifications

General

Product Type	Router
Form Factor	Rack-mountable
Rack Height	2U
Forwarding Capacity	Up to 20 Gbps
Total Number of Ports	Varies by configuration
Number of Total Expansion Slots	4
Product Series	ASR 1000
Model	ASR 1004
Forwarding Performance	Up to 20 Gbps
Operating System	Cisco IOS XE
Power Supply	Dual
Route Processor	ASR 1000 Series Route Processor
Network Interface Modules	SFP, SFP+, Gigabit Ethernet, 10 Gigabit Ethernet
Interfaces/Ports	Varies by configuration
Expansion Slot Type	SPA
Throughput	20 Gbps
Redundancy	Power supply, Route Processor
Interfaces	Gigabit Ethernet, 10 Gigabit Ethernet, SFP, SFP+
Storage	Up to 64 GB Flash
