Cisco ASR 1004 Hardware Installation Guide

Cisco ASR 1002-F Router Description
The Cisco ASR 1002-F Router is one of the Cisco ASR 1000 Series Aggregation Services Routers. The Cisco
ASR 1002-F Router supports all the general-purpose routing and security features of the Cisco ASR 1002
Router, and uses the same internal control and data-plane architecture as Cisco ASR 1002 Router.
The Cisco ASR 1002-F Router supports:
•
The same features and components as the Cisco ASR 1002 Router
•
An integrated 4xGE SPA interface
•
Fixed 2.5 GB of system bandwidth and 4 GB DRAM
•
A built-in 4x1GE SPA providing four small form-factor pluggable (SFP-based) GE connections,
designated as SPA bay 0
.
For information about the SFP transceiver modules that are compatible with Cisco ASR 1002 Built-in Gigabit
Ethernet Ports (4x1GE), refer to the “Modular Optics Compatibility” section in Cisco ASR 1000 Series
Aggregation Services Routers SIP and SPA Hardware Installation Guide .
Only Cisco software release four code supports the Cisco ASR 1002-F Router. Do not use earlier versions
of Cisco software.
Note
This section contains the following topics:
Front View
Figure 115: Cisco ASR 1002-F Router—Front View, on page 276 shows the front of the Cisco ASR 1002-F
Router with the Cisco ASR 1002-ESP-F, Cisco ASR 1000 route processor, and a SPA-4XOC12-POS installed.

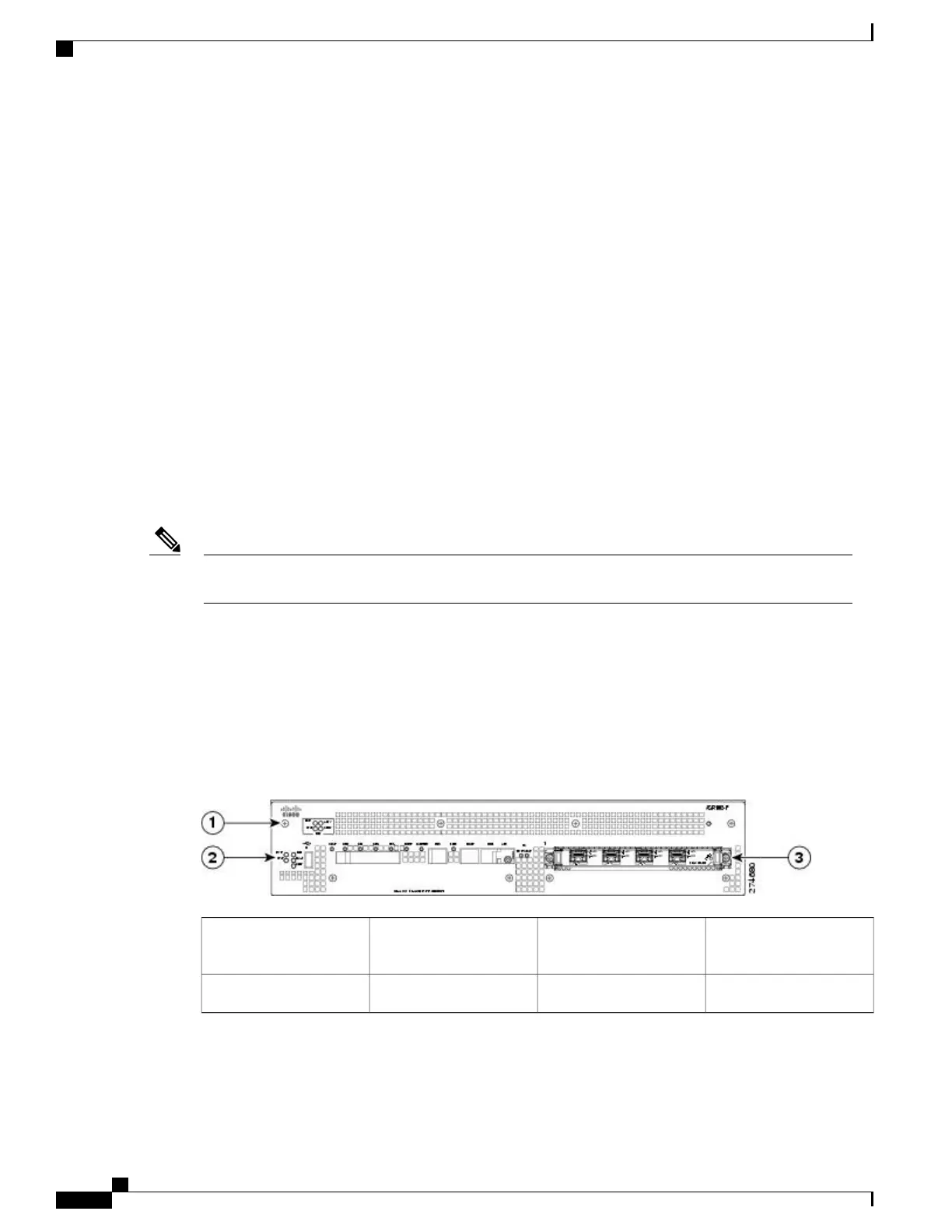

Figure 115: Cisco ASR 1002-F Router — Front View
Cisco ASR 1002-SIP10-F
with a SPA installed
3Integrated Cisco ASR
1002-ESP-F
1
——
Integrated Cisco RP2
Cisco ASR 1000 Series Router Hardware Installation Guide
276
Cisco ASR 1002-F Router Overview and Installation
Cisco ASR 1002-F Router Description

Cisco ASR 1004 Specifications

General

Product Type	Router
Form Factor	Rack-mountable
Rack Height	2U
Forwarding Capacity	Up to 20 Gbps
Total Number of Ports	Varies by configuration
Number of Total Expansion Slots	4
Product Series	ASR 1000
Model	ASR 1004
Forwarding Performance	Up to 20 Gbps
Operating System	Cisco IOS XE
Power Supply	Dual
Route Processor	ASR 1000 Series Route Processor
Network Interface Modules	SFP, SFP+, Gigabit Ethernet, 10 Gigabit Ethernet
Interfaces/Ports	Varies by configuration
Expansion Slot Type	SPA
Throughput	20 Gbps
Redundancy	Power supply, Route Processor
Interfaces	Gigabit Ethernet, 10 Gigabit Ethernet, SFP, SFP+
Storage	Up to 64 GB Flash
