Internal hard drive2Internal hard drive fastener
screw
1
Step 4
Pull the hard drive out as shown in xref Figure 14-7.

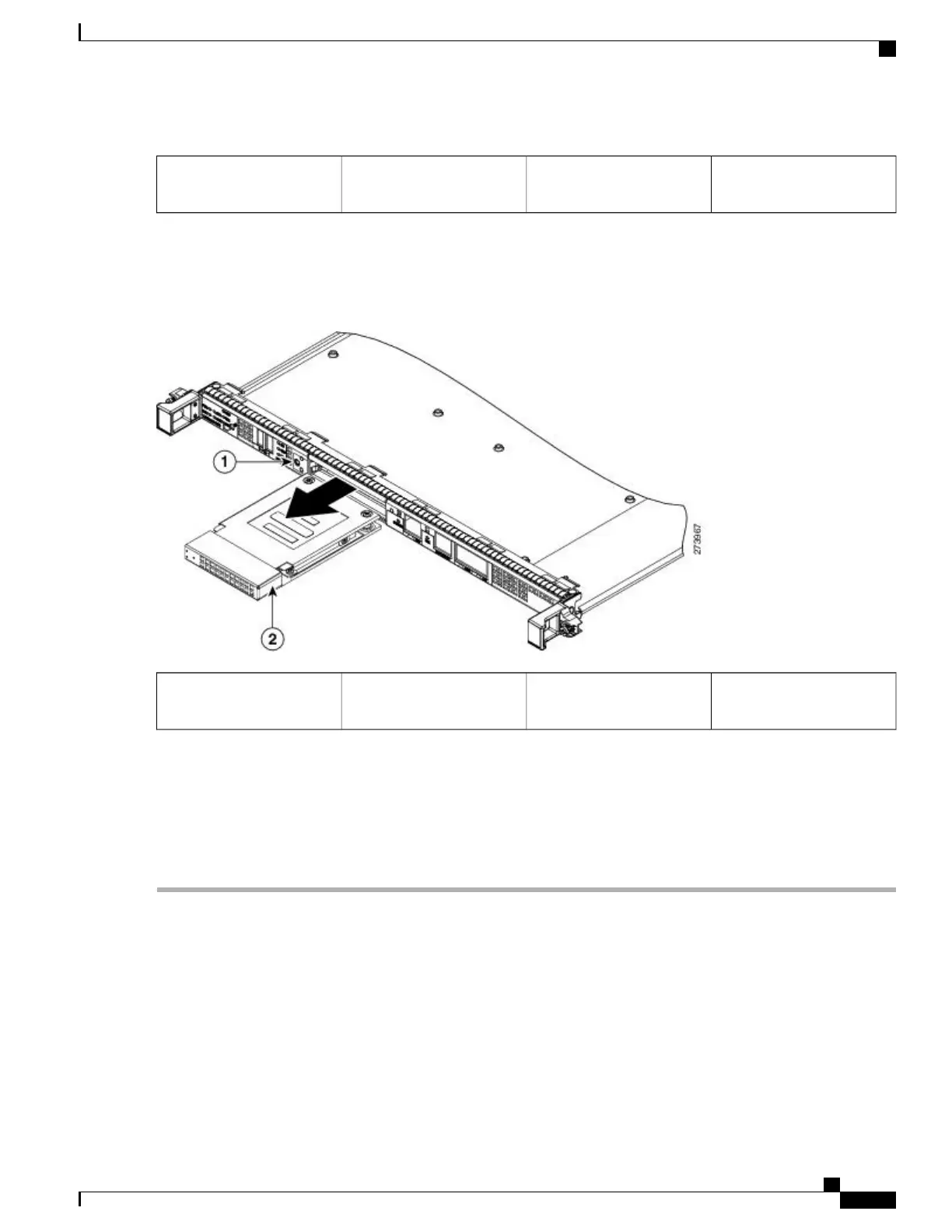

Figure 237: Cisco ASR1001 Router Hard Drive
Hard drive2Hard drive fastener screw
location
1
Step 5
Place the hard drive in an antistatic bag if you are returning it.
Step 6
Wait until the following console message is displayed:
Example:
%IOSXE-0-PLATFORM: R0/0: udev: harddisk: has been removed
What to Do Next
You have successfully removed the hard drive from the Cisco ASR 1001 Router.
Replacing the Hard Drive on the Cisco ASR 1001 Router
To insert or replace the hard drive on the Cisco ASR 1001 Router, follow this procedure:
Cisco ASR 1000 Series Router Hardware Installation Guide
493
Removing and Replacing FRUs from the Cisco ASR 1000 Series Routers
Replacing the Hard Drive on the Cisco ASR 1001 Router

Cisco ASR 1004 Specifications

General

Product Type	Router
Form Factor	Rack-mountable
Rack Height	2U
Forwarding Capacity	Up to 20 Gbps
Total Number of Ports	Varies by configuration
Number of Total Expansion Slots	4
Product Series	ASR 1000
Model	ASR 1004
Forwarding Performance	Up to 20 Gbps
Operating System	Cisco IOS XE
Power Supply	Dual
Route Processor	ASR 1000 Series Route Processor
Network Interface Modules	SFP, SFP+, Gigabit Ethernet, 10 Gigabit Ethernet
Interfaces/Ports	Varies by configuration
Expansion Slot Type	SPA
Throughput	20 Gbps
Redundancy	Power supply, Route Processor
Interfaces	Gigabit Ethernet, 10 Gigabit Ethernet, SFP, SFP+
Storage	Up to 64 GB Flash
